2

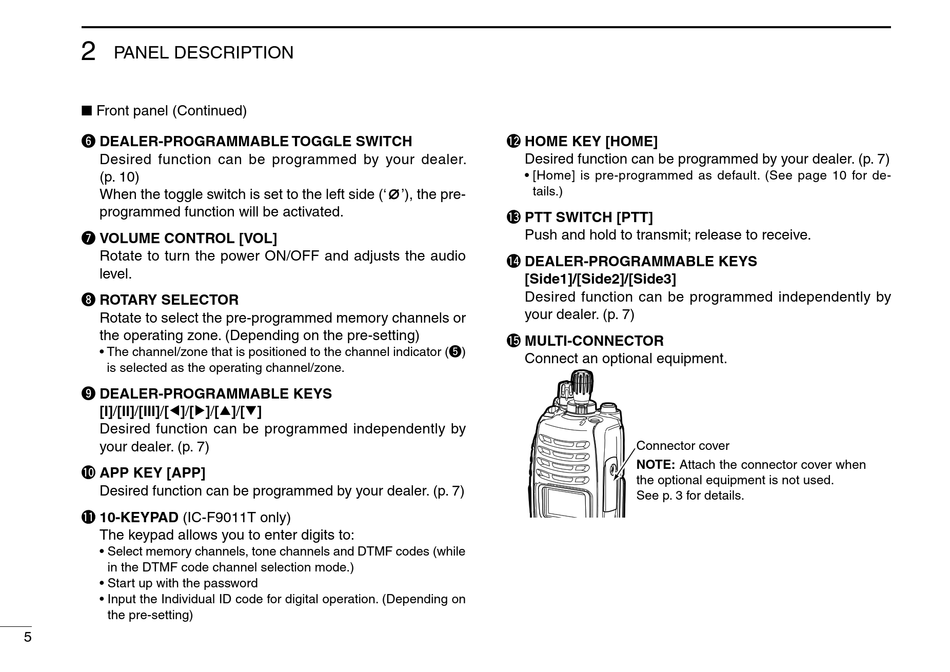

PANEL DESCRIPTION
■ Front panel (Continued)
y DEALER-PROGRAMMABLE TOGGLE SWITCH
Desired function can be programmed by your dealer.
(p. 10)
When the toggle switch is set to the left side (' '), the pre-
programmed function will be activated.
u VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
i ROTARY SELECTOR
Rotate to select the pre-programmed memory channels or
the operating zone. (Depending on the pre-setting)
• The channel/zone that is positioned to the channel indicator (t)
is selected as the operating channel/zone.
o DEALER-PROGRAMMABLE KEYS
[I]/[II]/[III]/[Ω]/[≈]/[∫]/[√]
Desired function can be programmed independently by
your dealer. (p. 7)
!0 APP KEY [APP]
Desired function can be programmed by your dealer. (p. 7)
!1 10-KEYPAD (IC-F9011T only)
The keypad allows you to enter digits to:
• Select memory channels, tone channels and DTMF codes (while
in the DTMF code channel selection mode.)
• Start up with the password
• Input the Individual ID code for digital operation. (Depending on
the pre-setting)
5
!2 HOME KEY [HOME]
Desired function can be programmed by your dealer. (p. 7)
• [Home] is pre-programmed as default. (See page 10 for de-
tails.)
!3 PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
!4 DEALER-PROGRAMMABLE KEYS
[Side1]/[Side2]/[Side3]
Desired function can be programmed independently by
your dealer. (p. 7)
!5 MULTI-CONNECTOR
Connect an optional equipment.
Connector cover
NOTE: Attach the connector cover when
the optional equipment is not used.
See p. 3 for details.
