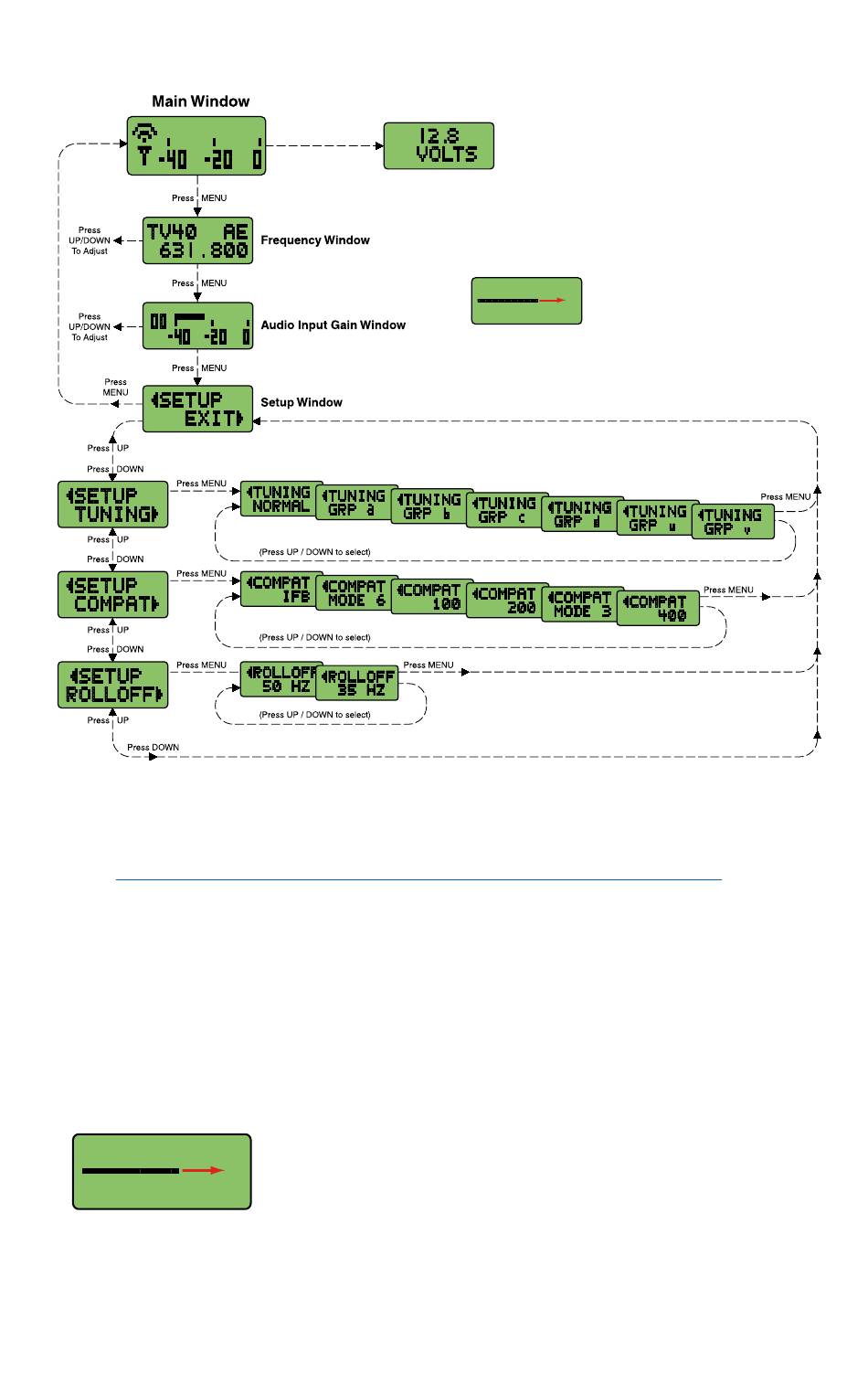

IFBT4 Menu Diagram
In the two user programmable frequency groups, up to 16 frequencies can be
programmed per group.
Note: The TUNING Setup Screen only selects the tuning mode
(NORMAL or Group tuning) and not the operating frequency. Actual
operating frequencies are chosen through the Frequency Window.
Press MENU to return to the Setup window.
Lock/Unlock Panel Buttons
To enable or disable the control panel buttons, navigate to the Main Window
and press and hold the MENU button for about 4 seconds. Continue holding
the button as a progress bar extends across the LCD.
When the bar reaches the right side of the screen, the unit will toggle to the
opposite mode and LOCKED or UNLOCKED will flash briefly on the screen.
www.lectrosonics.com
Press UP or DOWN arrow
Display External Power Voltage
(added feature with firmware Ver. 1.4)
Lock/Unlock Panel Buttons
From the Main Window, press and hold the MENU
button until a progress bar appears (about 4 seconds).
Continue holding the button until the bar reaches the
right side of the LCD. The selected mode will flash briefly.
5
