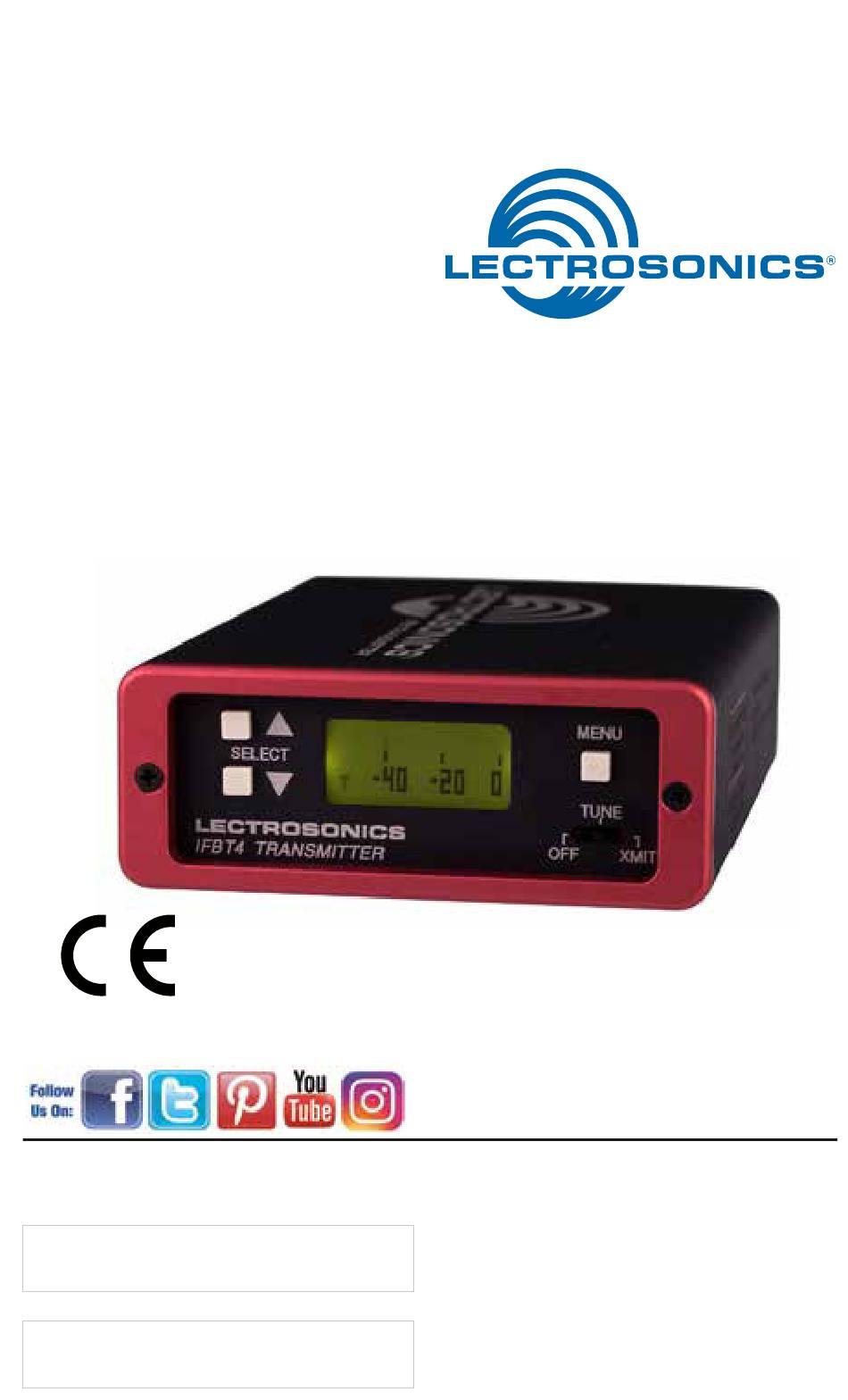

IFBT4-VHF Transmitter
IFBT4-VHF, IFBT4/E01-VHF, IFBT4-VHF/X
Fill in for your records:
Serial Number:
Purchase Date:
Digital Hybrid Wireless
US Patent 7,225,135
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com
®
25 July 2019
Advertisement
Table of Contents
Related Manuals for Lectrosonics IFBT4/E01-VHF
Summary of Contents for Lectrosonics IFBT4/E01-VHF
- Page 1 IFBT4-VHF Transmitter IFBT4-VHF, IFBT4/E01-VHF, IFBT4-VHF/X Digital Hybrid Wireless ® US Patent 7,225,135 Fill in for your records: This guide is intended to assist with initial setup and operation of your Serial Number: Lectrosonics product. For a detailed user manual, down-...
- Page 2 Audio limiting is indicated when the audio bargraph extends all the way to the right and widens some- what. Audio Limiting The Up and Down buttons are disabled in this Win- dow, but they will display voltage (e.g. 15.4 VOLTS). LECTROSONICS, INC.
- Page 3 When in TUNE mode, pressing the MENU button once navigates to the Fre- quency window. The Frequency window displays the current operating frequency in MHz, as well as the standard Lectrosonics hex code for use with receivers equipped with hex switches.
- Page 4 Nu Hybrid - This mode offers the best audio quality and is recommended if your receiver supports it. IFB - Lectrosonics IFB compatibility mode. This is the default setting and is the appropriate setting to use with the Lectrosonics IFBR1A or a com- patible IFB receiver.
- Page 5 IFBT4 VHF Menu Diagram E01,X Compat Modes US Compat Modes www.lectrosonics.com...
- Page 6 6 VDC and as high as 18 VDC. External power sources must be able to supply 200 mA continuously. Antenna The ANTENNA connector is a standard 50 ohm BNC connector for use with standard coaxial cabling and remote antennas. LECTROSONICS, INC.
- Page 7 6 ft. long power cord; coaxial to stripped & tinned leads. Right angle coaxial plug: ID-.075”; OD-.218”; Depth- .375”. Fits all compact receiver models that use CH12 21586 power supply. Locking collar with 5/16”-32 thread 21586 DC16A Pigtail power cable, LZR stripped & tinned. www.lectrosonics.com...
