COMPAT Setup Screen

The COMPAT setup screen selects
the current compatibility mode, for
interoperation with various types of receivers.
US:
Nu Hybrid - This mode offers the best audio quality and
is recommended if your receiver supports it.
IFB - Lectrosonics IFB compatibility mode. This is the
default setting and is the appropriate setting to
use with a compatible IFB receiver.
MODE 3 - Compatible with certain non-Lectrosonics
receivers. (Contact factory for more information.)
NOTE: If your Lectrosonics receiver does not
have Nu Hybrid mode, use Euro Digital Hybrid
Wireless® (EU Dig. Hybrid).
E/01:
IFB - Lectrosonics IFB compatibility mode. This is the
default setting and is the appropriate setting to
use with the Lectrosonics IFBR1A or a compat-
ible IFB receiver.
400 - Lectrosonics 400 Series. This mode offers the
best audio quality and is recommended if your
receiver supports it.

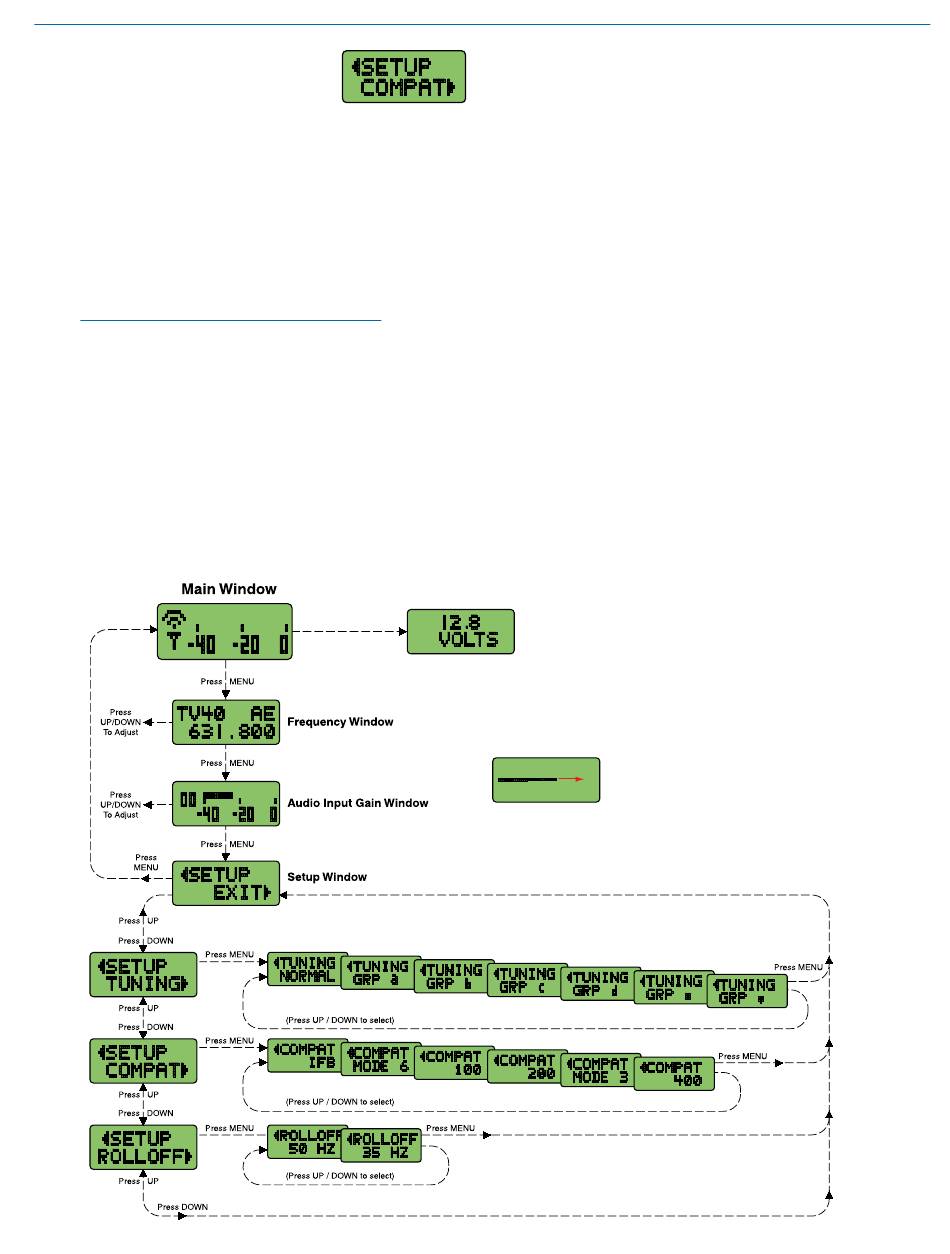

IFBT4 Menu Diagram

Rio Rancho, NM
Press UP or DOWN arrow
Multi-Frequency IFB Transmitter
X:
IFB - Lectrosonics IFB compatibility mode. This is the
default setting and is the appropriate setting to
use with the Lectrosonics IFBR1A or a compat-
ible IFB receiver.
400 - Lectrosonics 400 Series. This mode offers the
best audio quality and is recommended if your
receiver supports it.
100 - Lectrosonics 100 Series compatibility mode.
200 - Lectrosonics 200 Series compatibility mode.
MODE 3 and MODE 6 - Compatible with certain
non-Lectrosonics receivers.
Press MENU to return to the Setup window.
Display External Power Voltage
(added feature with firmware Ver. 1.4)
Lock/Unlock Panel Buttons
From the Main Window, press and hold the MENU
button until a progress bar appears (about 4 seconds).
Continue holding the button until the bar reaches the
right side of the LCD. The selected mode will flash briefly.
