Summary of Contents for Pulsar HPSBOC 11A12C

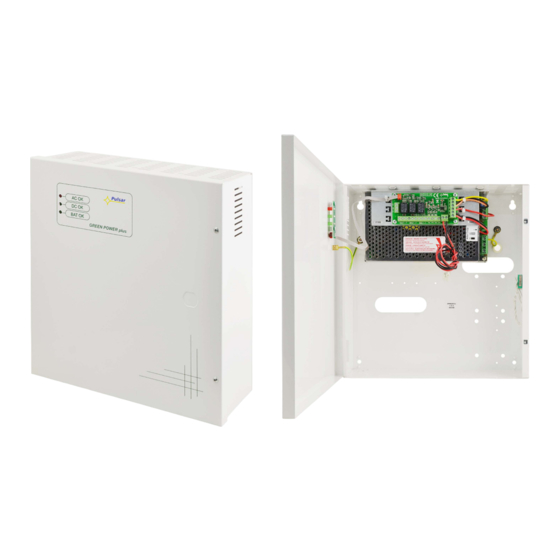

- Page 1 HPSBOC 11A12C v.1.0 HPSBOC 13,8V/10A/17Ah/OC Buffer, switch mode power supply unit with automatic operation control. Edition: 1 from 22.01.2013 Supercedes:...
-
Page 2: Table Of Contents
HPSBOC5012C Features: • • DC 13,8V/10A uninterruptible power supply FAC technical output indicating AC power loss • • fitting battery: 17Ah/12V FPS technical output indicating PSU failure • • wide range of mains supply: 176÷264V FLB technical output indicating battery low •... -
Page 3: Block Diagram
HPSBOC5012C BATTERY 7Ah: 1. Buffer power supply unit HPSBOC 13,8V/16x0,5A/7Ah. - HPSBOC11A12C + 2 x LB8 8x0,5A (2 x AWZ578 or AWZ580) + 7Ah 2. Buffer power supply unit HPSBOC 13,8V/2x12V/8x1A/7Ah. - HPSBOC11A12C + 2 x RN500(13,8V/12V+ 2x LB4 4x1A (AWZ575 or AWZ576) + 7 Ah 3. -
Page 4: Description Of Psu Components And Connectors
HPSBOC5012C Fig. 2. The view of the PSU. Description of PSU components and connectors (tab.2, fig.3). lement no. Description [Fig. 3] PSU module TAMPER, contact, sabotage protection (NC) Tab.3. Output terminals of the PSU. Fig.3. The view of the PSU. -
Page 5: Specifications
HPSBOC5012C 1.4 Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4) - operation safety (tab.5) - operating parameters (tab.6) Electrical parameters (tab. 3) Mains supply 176÷264V AC Current up to 1,4A@230VAC Supply power 155W max. Efficiency Output voltage 11V÷ 13,8V DC – buffer operation 9,5V÷13,8V DC –... -
Page 6: Installation
HPSBOC5012C Outputs: Φ0,63-2,50 (AWG 22-10), battery output BAT: 6,3F-2,5 TAMPER output: wires Notes The enclosure does not adjoin the assembly surface so that cables can be led Operation safety (tab.5) Protection class PN-EN 60950-1:2007 I (first) Protection grade PN-EN 60529: 2002 (U) -
Page 7: Installation Procedure
HPSBOC5012C As the PSU is designed for a continuous operation and is not equipped with a power-switch, therefore an appropriate overload protection shall be guaranteed in the power supply circuit. Moreover, the user shall be informed about the method of unplugging (usually through assigning an appropriate fuse in the fuse-box). The electrical system shall follow valid standards and regulations. -
Page 8: Technical Outputs
HPSBOC5012C 3.2 Technical outputs The PSU has indication outputs: FAC - absence of AC supply output: - OC type output that indicates AC power loss. Under normal status, with 230V AC supply, the output is connected to ground (L level – 0V). In case of power loss, the PSU will switch the output into high impedance state hi-Z after approx. - Page 9 GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a three-year warranty for the equipment, , counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects, unless such...
