- Page 1 HPSBOC 7012C v.1.1 HPSBOC 13,8V/6A/17Ah/OC Buffer switch mode power supply unit with technical outputs. Edition: 9 from 01.03.2018 Supercedes edition: 8 from 01.06.2016...
-
Page 2: Table Of Contents
PSU, with high energy efficiency. The PSU is housed in a metal enclosure (colour RAL 9003) which can accommodate a 17Ah/12V battery. A micro switch indicates door opening (front cover). OPTIONAL POWER SUPPLY CONFIGURATIONS: (visualisation available at: www.pulsar.pl) BATTERY 17Ah: 1. Buffer power supply unit HPSBOC 13,8V/4x1,5A/17Ah. -
Page 3: Block Diagram
GREEN POWER plus www.pulsar.pl HPSBOC7012C 6. Buffer power supply unit HPSBOC 13,8V/(5V÷7,4V)/2A/17Ah. - HPSBOC7012C + DCDC20 (5V÷7,4V/2A) + 17Ah BATTERY 7Ah: 1. Buffer power supply unit HPSBOC 13,8V/12x0,5A/7Ah. - HPSBOC7012C + LB4 4x0,5A (AWZ574 or AWZ576) + LB8 8x0,5A (AWZ578 or AWZ580) + 7Ah 2. -
Page 4: Description Of Psu Components And Connectors

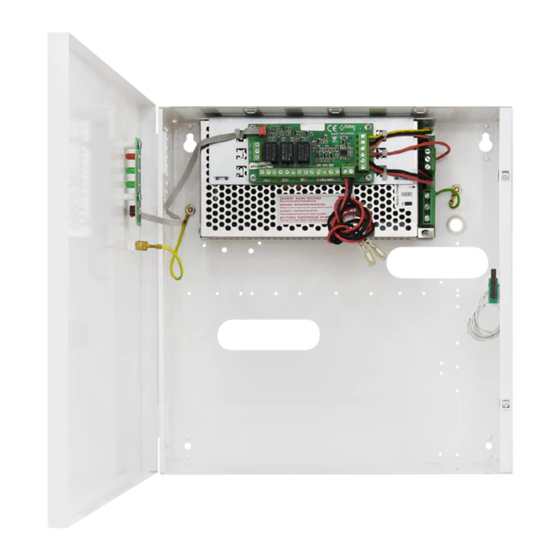

GREEN POWER plus www.pulsar.pl HPSBOC7012C Fig. 2. The view of the PSU. Description of PSU components and connectors (tab.2, fig.3). Element no. Description [Fig. 3] PSU module TAMPER, contact, sabotage protection (NC) Tab.2. Output terminals of the PSU. Fig.3. The view of the PSU. -
Page 5: Specifications
GREEN POWER plus www.pulsar.pl HPSBOC7012C 1.4 Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4) - operation safety (tab.5) - operating parameters (tab.6) Electrical parameters (tab. 3) 176÷264V AC Mains supply Current up to 0.95A@230VAC Supply power 100W max. Efficiency 11V ÷... -
Page 6: Installation
GREEN POWER plus www.pulsar.pl HPSBOC7012C Mechanical parameters (tab. 4) Dimensions W=280, H=292, D+D =82+8 [+/- 2mm] =285, H =296 [+/- 2mm] The dimensions of the 190x170x75mm (WxHxD) max battery compartment Fixation See figure 2 Net/gross weight 2,3kg / 2,5kg Enclosure... -
Page 7: Installation Procedure
GREEN POWER plus www.pulsar.pl HPSBOC7012C As the PSU is designed for a continuous operation and is not equipped with a power-switch, therefore an appropriate overload protection shall be guaranteed in the power supply circuit. Moreover, the user shall be informed about the method of unplugging (usually through assigning an appropriate fuse in the fuse-box). -
Page 8: Technical Outputs
GREEN POWER plus www.pulsar.pl HPSBOC7012C 3.2 Technical outputs The PSU has indication outputs: EPS - absence of AC supply output: - OC type output that indicates AC power loss. Under normal status, with 230V AC supply, the output is connected to ground (L level –... -
Page 9: Operation And Use
GREEN POWER plus www.pulsar.pl HPSBOC7012C 4. Operation and use. 4.1 Overload or short circuit of the PSU output (SCP on) In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration of the voltage takes place immediately after the failure (overload) is over. - Page 10 The power supply unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but recycled according to the applicable law. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
