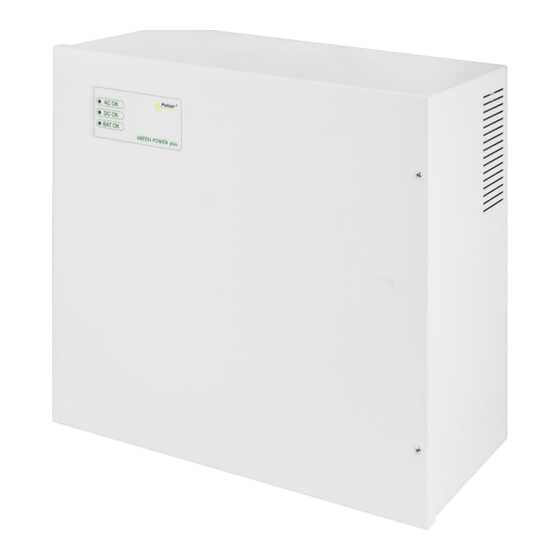

- Page 1 HPSBOC 5048C v.1.0 HPSBOC 54V/5A/4x17Ah/OC Buffer switch mode power supply unit with technical outputs. EN** Edition: 2 from 01.06.2016 Supercedes edition: 1 from 21.04.2016...
-
Page 2: Table Of Contents
4x17Ah/12V battery. A micro switch indicates door opening (front cover). The power supply housing has space for additional modules (fuse blocks, voltage regulators and DC/DC converters). Optional power supply configurations are available at the website: www.pulsar.pl See chart 1... -
Page 3: Block Diagram
HPSBOC5048C 1.2 Block diagram (fig.1) Fig.1. The block diagram of the PSU. 1.3 Description of the module’s components and connectors. Table 1. Elements of the module’s (see fig. 2). Element no. Description LED indicating presence of AC power LED indicating presence of DC power... -
Page 4: Description Of Psu Components And Connectors
HPSBOC5048C Fig. 2. The view of the PSU. Description of PSU components and connectors (tab.2, fig.3). Element no. Description [Fig. 3] PSU module TAMPER, contact, sabotage protection (NC) Tab.2. Output terminals of the PSU. Fig.3. The view of the PSU. -
Page 5: Specifications
HPSBOC5048C 1.4 Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4) - operation safety (tab.5) - operating parameters (tab.6) Electrical parameters (tab. 3) Mains supply Current up to 1,5A@230VAC Supply power 270W max. Efficiency Output voltage V DC buffer operation... -
Page 6: Installation
HPSBOC5048C Operation safety (tab.5) Protection class PN-EN 60950-1:2007 I (first) Protection grade PN-EN 60529: 2002 (U) IP20 Electrical strength of insulation: - between input and output circuits of the PSU (I/P-O/P) 3000 V/AC min. - between input circuit and PE protection circuit (I/P-FG) 1500 V/AC min. -
Page 7: Installation Procedure
HPSBOC5048C 2.2 Installation procedure. 1. Before installation, cut off the voltage in the 230V power-supply circuit. 2. Mount the PSU in a selected location and connect the wires. 3. Connect the power cables (~230Vac) to L-N clips of the PSU. Connect the ground wire to the clip marked by the earth symbol PE (PSU module connector). -
Page 8: Technical Outputs
HPSBOC5048C 3.2 Technical outputs The PSU has indication outputs: EPS - absence of AC supply output: - OC type output that indicates AC power loss. Under normal status, with 230V AC supply, the output is connected to ground (L level 0V). -
Page 9: Operation And Use
HPSBOC5048C 4. Operation and use. 4.1 Overload or short circuit of the PSU output (SCP on). In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration of the voltage takes place immediately after the failure (overload) is over. - Page 10 GENERAL WARRANTY CONDI TI ONS 1. Pulsar (the manufacturer) grants a two-year warranty for the equipment, production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects, unless such defects have been reported within the warranty period (item 1).
