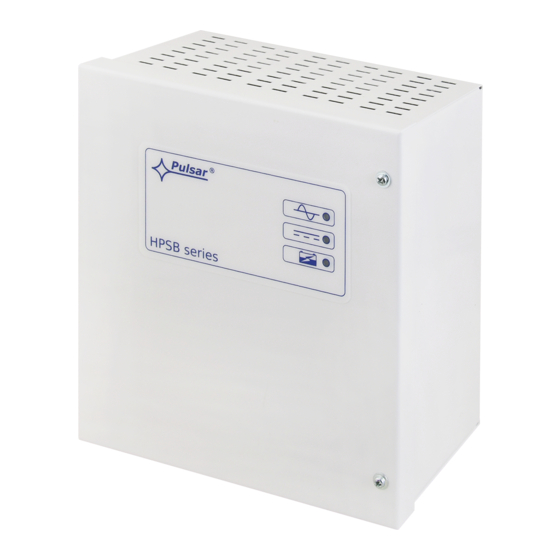

- Page 1 USER MANUAL Edition: 1 from 24.11.2020 Supersedes the edition: Power supplies HPSB series Buffer switched mode power supply.
-
Page 2: Table Of Contents
HPSB series Features: supply voltage ~200 – 240 V LED optical indication DC 13,8 V; 27,6 V or 54 V uninterruptible power deep discharge battery protection (UVP) supply battery output protection against short circuit ... -
Page 3: Block Diagram
HPSB series 1.2. Block diagram (rys.1). Fig.1. Block diagram of PSU. 1.3. Description of components and connectors. Table 1. Description of PSU components and connectors (see Fig. 2a, 2b, 2c, 2d, 2e). Part no. Description LED for DC output voltage... - Page 4 HPSB series Fig. 2b. View of power supply module (models 12V5A, 12V7A, 24V2A, 24V3A) Fig. 2c. View of power supply module (models 12V10A, 24V5A, 48V3A) Fig. 2d. View of power supply module (models 12V15A, 24V7A) Fig. 2e. View of power supply module (models 12V20A, 24V10A, 48V5A) Table 2.
-
Page 5: Specifications
HPSB series Fig.3. View of PSU. 1.4 Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4) - operation safety (tab.5) - operating parameters (tab.6) - Page 6 Table 3. Electrical parameters. Models HPSB-12V2A-B HPSB-12V3A-B HPSB-12V3A-C HPSB-12V5A-C HPSB-12V7A-C HPSB-12V10A-C HPSB-12V15A-D HPSB-12V20A-E PSU type A (EPS - External Power Source), II environmental class Supply voltage ~ 200 - 240 V Current consumption 0,4 A 0,5 A 0,5 A 0,8 A 1,3 A 1,5 A Power frequency...
- Page 7 HPSB series Models HPSB-24V2A-B HPSB-24V3A-B HPSB-24V5A-C HPSB-24V7A-C HPSB-24V10A-D HPSB-48V3A-B HPSB-48V5A-C PSU type A (EPS - External Power Source), II environmental class Supply voltage ~ 200-240 V Current consumption 0,8 A 1,3 A 1,5 A 1,5 A 1,5 A Power frequency...
-
Page 8: Installation
Table 4. Mechanical parameters. Enclosure dimensions 170x180 200x230 230x300 300x300 330x380 460x390 (WxH) [±2mm] Enclosure dimensions 305x305 335x385x173 465x395x173+ 175x185x82+8 205x237x82+8 237x305x82+8 +D) [±2mm] x105+8 Fixing (WxH) 145x152 175x202 205x272 274x265 298x310 425x322 155x100x75 190x100x75 215x172x75 250x172x100 325x178x168 450x190x168 Fitting battery (WxHxD) Enclosure Steel sheet DC01 0,7mm... -
Page 9: Operating Status Indication
HPSB series Mount the PSU in a selected location and connect the wires. Connect the power cables (~230 V) to AC 230 V clips of the transformer. Connect the ground wire to the clip marked by the earth symbol . -
Page 10: Maintenance
HPSB series 4. Maintenance. Any and all maintenance operations may be performed following the disconnection of the PSU from the power supply network. The PSU does not require performing any specific maintenance measures, however, in the case of significant dust rate, its interior is recommended to be cleaned with compressed air. In the case of a fuse replacement, use a replacement of the same parameters.
