24v/1a/2x1,2ah buffer, switching power supply unit (8 pages)
Summary of Contents for Pulsar HPSB 2512B
Page 1
HPSB 2512B v.1.0 HPSB 13,8V/2A/7Ah Buffer, switch mode power supply unit. Edition: 1’st from 03 th of October 2011 Supercedes the ------------- edition:...
Page 2
Maximum battery charging current: 0.5 A. Total device current + battery: 2.5 A max. OPTIONAL POWER SUPPLY CONFIGURATIONS: (visualisation available at: www.pulsar.pl) 1. Buffer power supply unit HPSB 13,8V/2x1A/7Ah. - HPSB2512B + LB2 2x1A (AWZ585, AWZ586) + 7Ah 2. Buffer power supply unit HPSB 13,8V/4x0,5A/7Ah.
Page 3

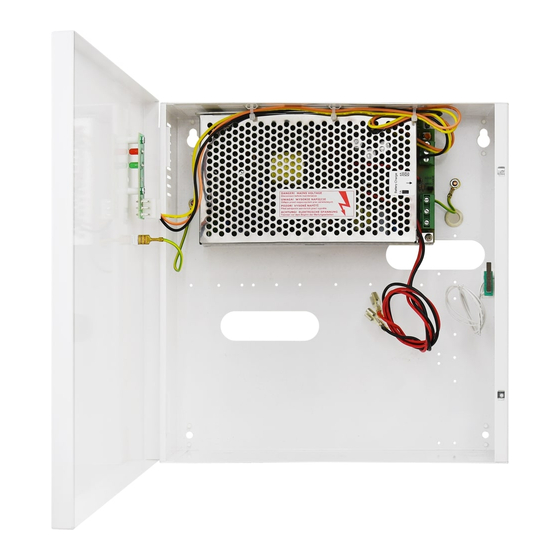

1.2 Block diagram (fig.1). Fig.1. The block diagram of the PSU. 1.3 Description of PSU components and connectors ( tab.1, tab.2, fig.2). Part no. Description [Fig. 2] PSU module connectors (see: tab.2) green LED indicates AC power P1 potentiometer, output voltage adjustment BAT+/GND: battery outputs + BAT=red, - GND=black TAMPER, contact, sabotage protection (NC) Additional connector for LED indication...
Page 5
1.4 Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4) - operation safety (tab.5) - operating parameters (tab.6) (tab. 3) Electrical parameters Mains supply 176÷264V AC Current up to 0,45A@230VAC Power frequency 50÷60Hz Supply power 35W max. Efficiency Output voltage 13,8V DC –...
Page 6
(tab.6) Operating parameters Operating temperature -10ºC...+40ºC (see: chart 1) Storage temperature -20ºC...+60ºC Relative humidity 20%...90%, without condensation Vibrations during operation unacceptable Impulse waves during operation unacceptable Direct insulation unacceptable Vibrations and impulse waves during transport According to PN-83/T-42106 Chart 1. Acceptable output current from the PSU depending on ambient temperature. 2.
Page 7
The shock protection circuit shall be performed with a particular care, i.e. the yellow and green wire coat of the power cable shall stick to one side of the terminal - marked with ‘ ‘ symbol on the PSU enclosure. Operation of the PSU without the properly made and fully operational shock protection circuit is UNACCEPTABLE! It can cause a device failure or an electric shock.
Page 8
GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a two-year warranty for the equipment, starting from the initial product date of purchase placed on the receipt. 2. If a purchase proof is missing, a three-year warranty period is counted from the device’s production date.
