Ducted Version Air Exhaust System - Infiniton CMPP-61X Instruction Manual

Fix the brackets (Optional):
 Drill holes at the marked points with a ɸ10 mm drill bit.
 Insert the Wall Plugs 11 into the holes.
 Screw 2 screws 10 (5 x 50) to Wall Plugs 11 at the horizontal line A; the four fifth length of the
screws 10 (5 x 50) was screwed into the Wall Plugs 11.
 Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.
Hook the hood body
Hook the hood body to the 2 screws 10 (5 x 50) at the horizontal line A.
Level the hood body itself.
Remove the filter from the inside of the hood body, fix the screws 10 to Wall Plugs 11 at the
points (3).
CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney
using either a flexible or rigid pipe ɸ 150 or ɸ 120 mm, the choice of
which is left to the installer.
 If to install a ɸ 120 mm air exhaust connection, insert the reducer
flange 3 on the hood body outlet.
 Fix the pipe 4 in position using sufficient pipe clamps (not
supplied).
 Remove possible charcoal filters.

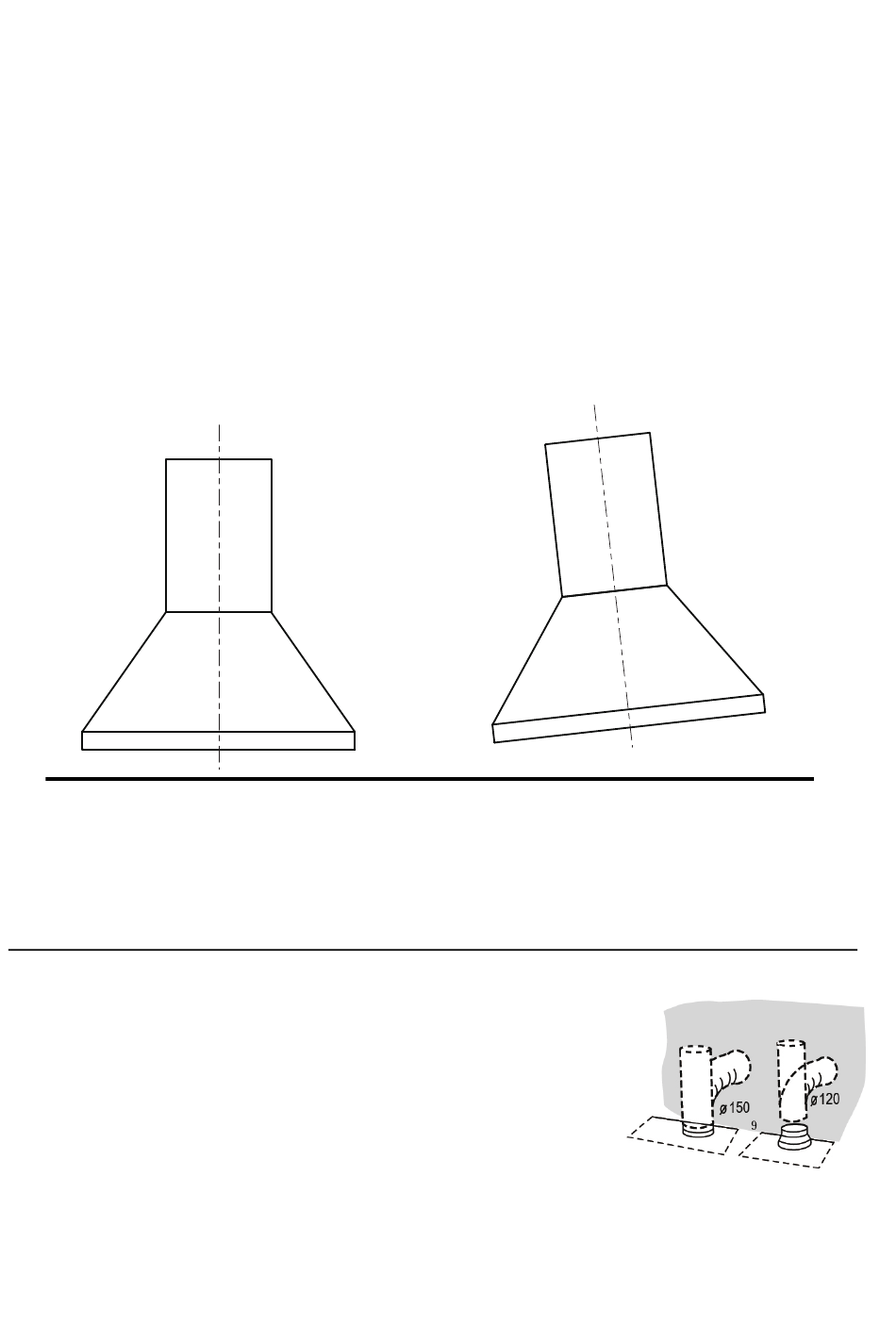

Right Wrong
