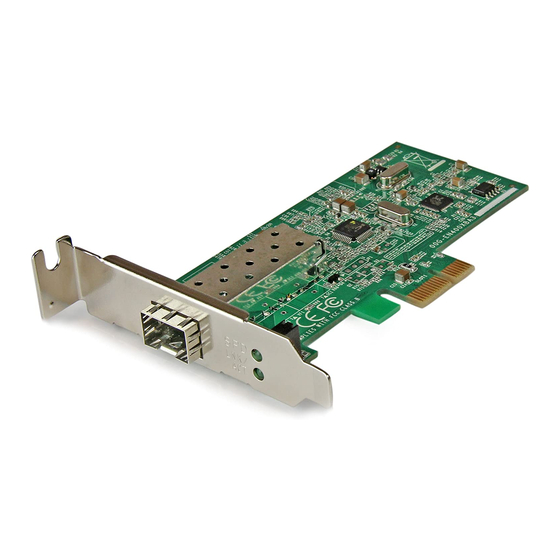

PCI Express 10/100 Mbps Ethernet Fiber
Network Card with Open SFP Slot
PEX100SFP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/13/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PEX100SFP
Summary of Contents for StarTech.com PEX100SFP

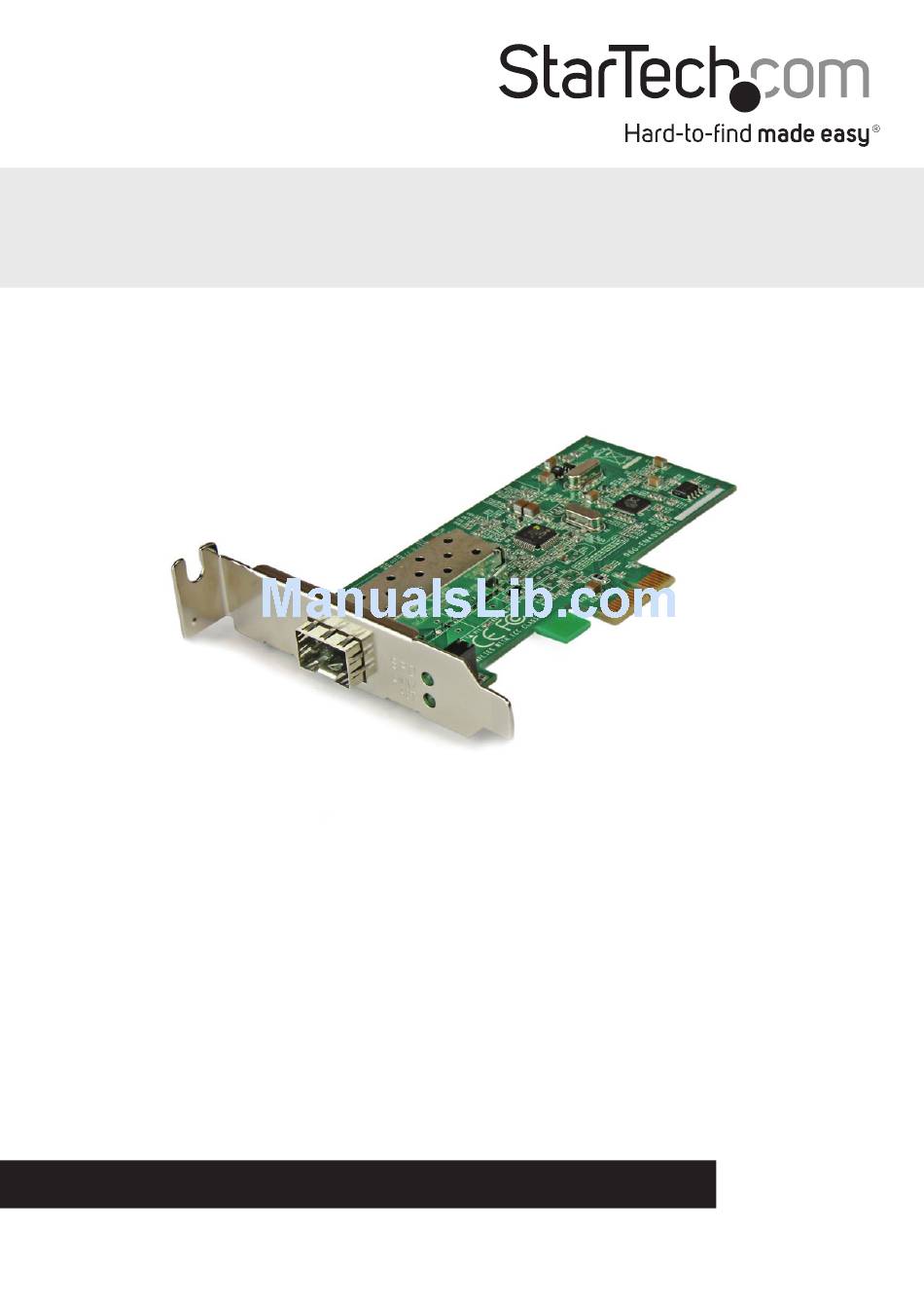

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/13/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Features ................................ 1 Package Contents ............................. 1 Installation ....................2 Hardware Installation ..........................2 Connecting to a Network ........................3 Software Installation ..........................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Introduction The PEX100SFP PCI Express 10/100 Mbps Ethernet Fiber Open SFP Network Card lets you connect a PCI Express-based PC directly to a fiber optic network using the 10/100 Mbps SFP of your choice. A versatile solution for connecting a computer directly to a 10/100 Mbps fiber network,... -
Page 5: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Connecting To A Network
Connecting to a Network Note: You must connect the PCI Express Fiber 10/100 Mbps Ethernet Adapter to the network before installing the network driver. For connector type, cabling requirements, and maximum segment distance when connecting the PCI Express 10/100 Mbps Ethernet Adapter to your network, please refer to the following table. -
Page 7: Software Installation
Software Installation 1. Once PEX1000SFP has been installed in the computer, turn on the power to the computer. 2. When the Found New Hardware Wizard window pops up, select Install from a list or specific location (Advanced)and click Next to continue. 3. -
Page 8: Specifications
Specifications Compliant with IEEE 802.3u 100Base-FX, IEEE802.1Q VLAN Tagging, IEEE802.1p Applicable Standards Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1 LED Indicators Link, Activity Operating Temperature 0°C ~ 45° C (32°F ~ 113°F) Storage Temperature -10°C ~ 70°C (14°F ~ 158°F) Humidity 5% ~ 95% RH non-condensing... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
