Getting Started:

The GCP-300 current probe enables a general purpose oscilloscope to
display AC and DC current signals up to 200 amps Peak(140A RMS). The
GCP-300 current probe can also make AC and DC measurements with a
multimeter by using the BNC-to-banana plug adapter.
Max. 11 Wire
Press Button

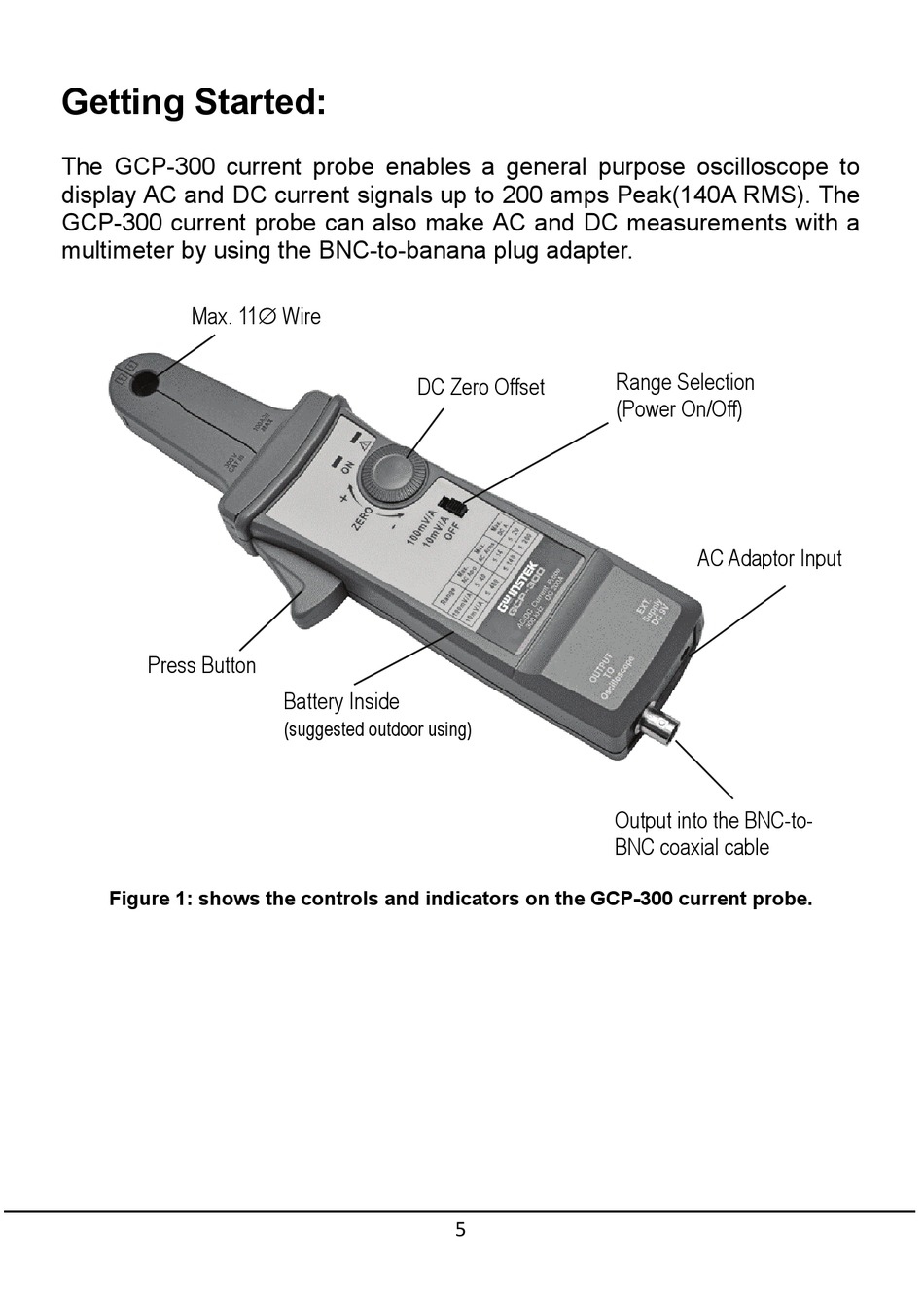

Figure 1: shows the controls and indicators on the GCP-300 current probe.
DC Zero Offset
Battery Inside
(suggested outdoor using)
5
Range Selection
(Power On/Off)
AC Adaptor Input
Output into the BNC-to-
BNC coaxial cable
