CONTROLLER LABELS:
LC40 series faceplate: 1 sensor input, 1 relay output.
LC41 series faceplate: 2 sensor inputs, 1 relay output. The relay included is a latching relay.
LC42 series faceplate: 3 sensor input, 2 relay outputs. One relay is latching and the other is a single input
relay.

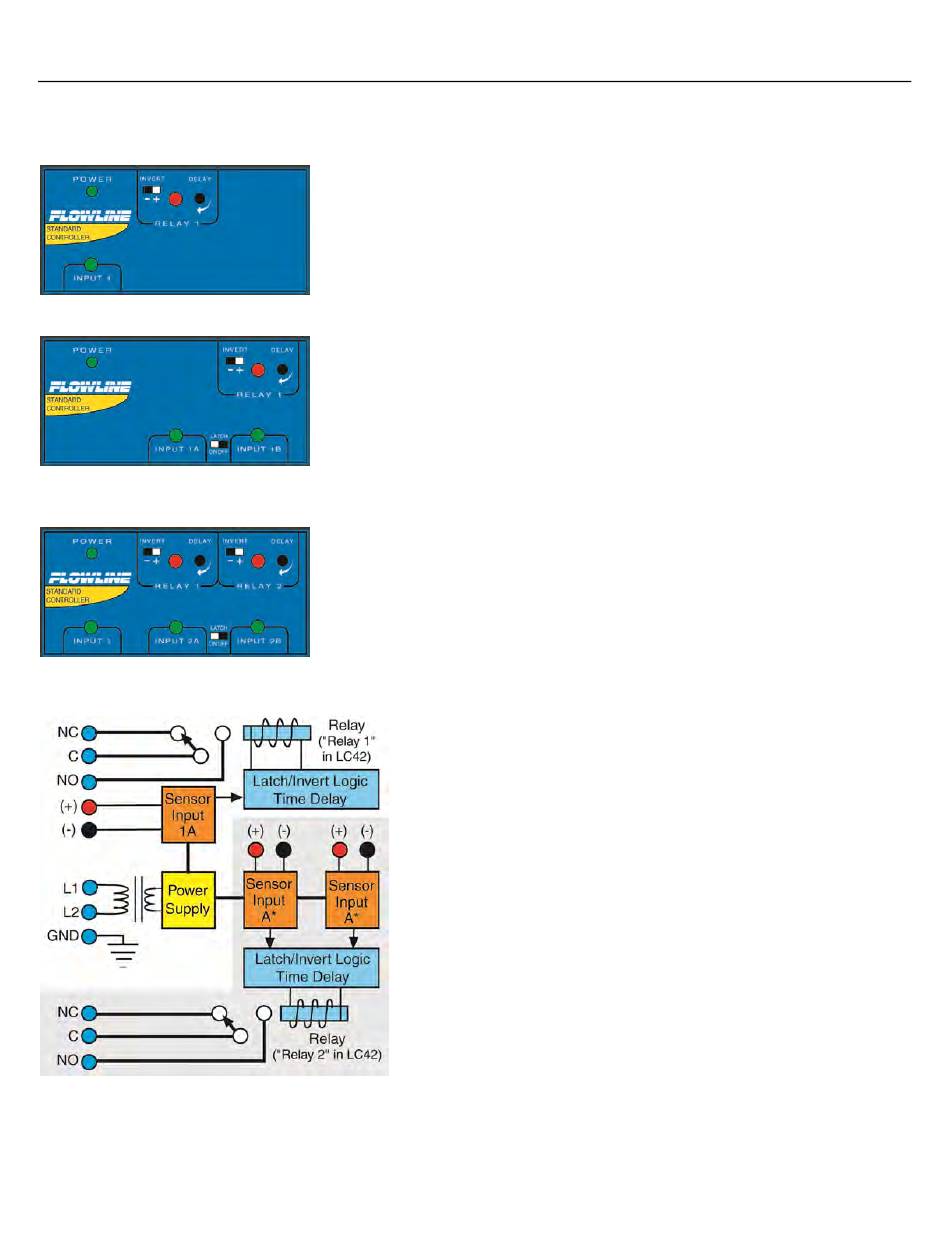

INTERNAL CONTROLLER LOGIC:
|
4
MN301520 Rev A1
