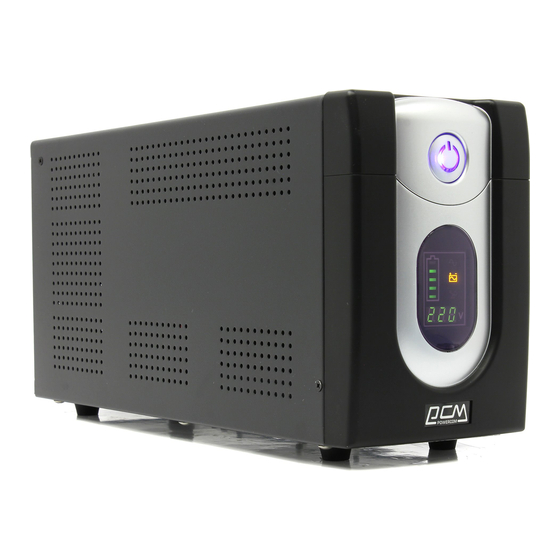

- Page 1 U P S Line-Interactive 1025VA-3000VA IMD-1025A, IMD-1025AP, IMP-1025A, IMP-1025AP IMD-1200A, IMD-1200AP, IMP-1200A, IMP-1200AP IMD-1500A, IMD-1500AP, IMP-1500A, IMP-1500AP IMD-2000A, IMD-2000AP, IMP-2000A, IMP-2000AP ■USER MANUAL■...
- Page 2 EMC Statement These products are tested and thereby comply with the conditions of CE regulation, which established to offer sufficient protection against dangerous interference for installation. Installation and use of the equipment should comply with the instructions provided to avoid such interference due to the amount of radiofrequency energy that generates by the equipment;...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS WARNING: SAVE THESE INSTRUCTIONS!! This Manual Contains Important Instructions that should be followed during Installation and Maintenance of the UPS WARNING: Manual contains important instructions of UPS and batteries during installation and maintenance. Follow this instruction at all time ...
- Page 4 3.2 Connection to Main and Load Follow all installation and safety instructions very carefully; failure to do so may cause hazardous situations to personnel and equipment. Ensure the main power voltage matches with UPS. (110V/220V) For electrical installation, closely observe the nominal current rating of the source. ...
- Page 5 4.3 UPS Control Control panel functions Function Description Display Function Description LED Display AVR Boost (Yellow) Line Mode(Green) Correcting under-voltage condition. UPS is operating with Main power Output power remain normal AVR Buck(Yellow) Battery Mode(Yellow) Correcting over-voltage condition. UPS operating with Battery power Output power remain normal Battery Fault(Red) Battery fault or overload occurred...
- Page 6 UPS Monitoring Connection UPSMON Pro software (Or other power monitoring software) can further utilize the UPS with warning reminders, monitoring, control shut down, and setting adjustments. Using monitoring features requires connecting the UPS to a computer or the internet. Connect UPS to Computer with USB (Optional) Locate the USB port on UPS.
- Page 7 Ensure the UPS is turned off and disconnected from the main power. Unscrew the front panel. Push the front panel upward then pull out the front panel. Remove the battery cover, disconnect battery cable, then remove the battery. (negative pole first) Replace with the same type and quantity of battery.
- Page 8 APP-B Technical Specifications Model 1025A/AP 1200A/AP 1500A/AP 2000A/AP 3000A/AP Configuration Capacity (VA/ Watts) 1025VA/615W 1200VA/720W 1500VA/900W 2000VA/1200W 3000VA/1800W Form Tower Type Input Voltage / 110 / 120 VAC or 220 / 230 / 240 VAC Input Voltage Range 75 - 150 or 165 - 300 VAC Input Frequency Range 50 Hz / 60 Hz (Auto Sensing) Output...
