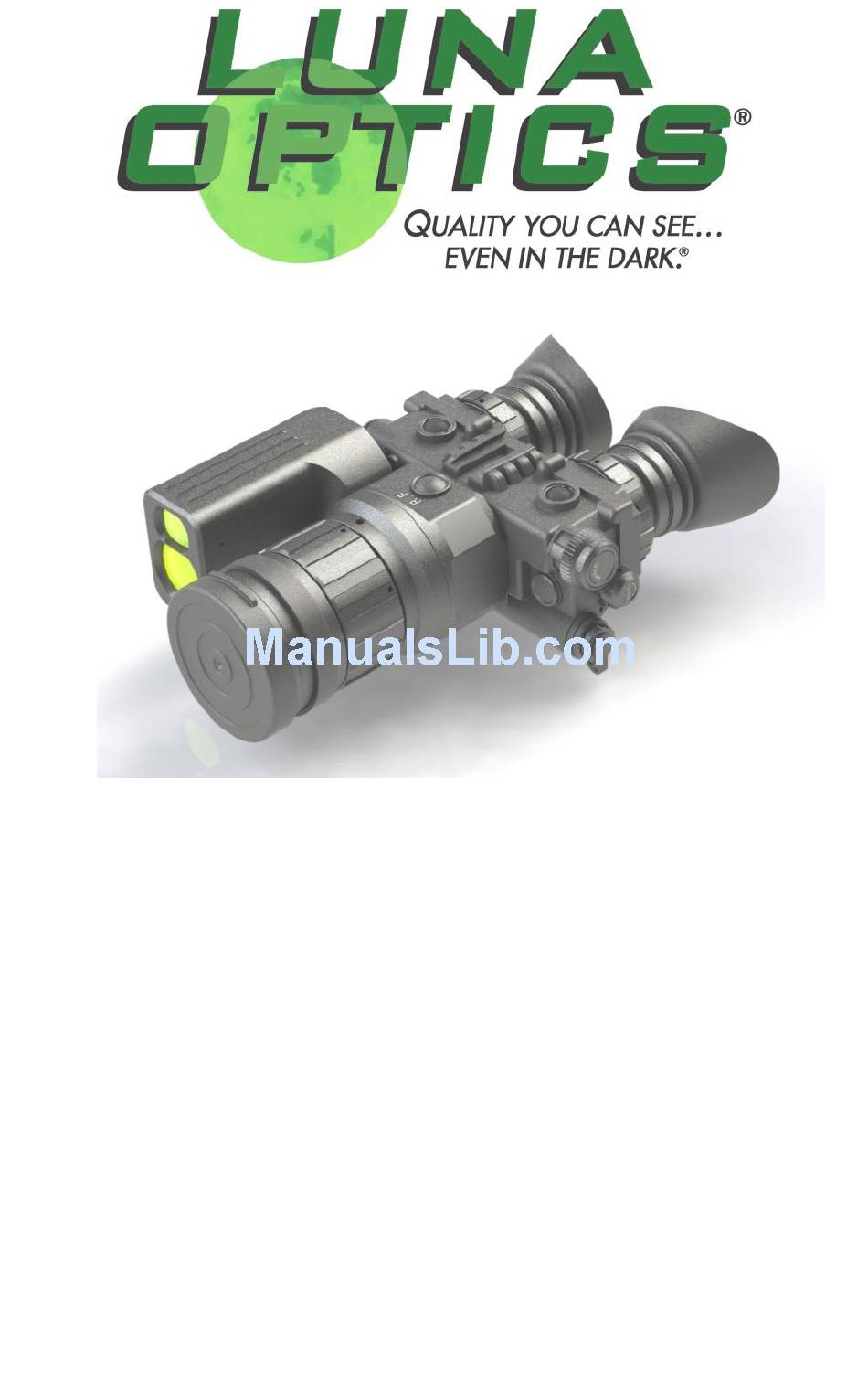

- Page 1 LN-TB35-LRF LN-TB50-LRF THERMAL IMAGING BINOCULARS WITH BUILT-IN LASER RANGEFINDER INSTRUCTION MANUAL IMPORTANT: Please read this manual in its entirety prior to using this device!
- Page 2 INTRODUCTION Thank you for purchasing a quality LUNA OPTICS ® product. With proper care and maintenance your device will provide many hours of operation and outstanding reliability. Please read this manual – it is your key to enjoying this exciting and hi-tech product! THERMAL IMAGING Without getting too technical and confusing, let’s try to...
- Page 3 Please look below to identify all the parts of the unit. LN-TB35-LRF (shown) & LN-TB50-LRF (same but with larger 75mm front lens) Lens and unit appearance may vary slightly.
- Page 4 INSTALLING THE BATTERIES: Your night vision unit operates on commonly available 3V Lithium batteries, CR123-type. You will need 3 batteries to operate the device. To install the batteries, unscrew the battery compartment cover and install the batteries inserting the positive (+) end first. Once the batteries are inside, replace the cover.
- Page 5 image is sharp and clear. Once the clear image is obtained, you no longer need to adjust the Oculars Focusing Rings, just rotate the Distance Focusing Rings to adjust the distance to the object you are viewing. ADJUSTING DISTANCE BETWEEN EYEPIECES: After you turn the power on and after you adjust the focusing to the best possible...
- Page 6 ZOOM FUNCTION The standard (optical) magnification of your thermal binoculars is either 3.5x or 5x (you will see the objects 3.5x or 5x closer than if looking with the naked eye). It is possible to increase the magnification by applying a digital zoom function. There are two zoom levels (2x and 4x) meaning your combined magnification will be either 7x or 14x.
- Page 7 accurately read distance will depend on the reflective characteristics of the object, as well as its size and ability to view it unobstructed. We suggest to measure distance 3 times for the same object to determine the most precise reading. EXTERNAL POWER SUPPLY It is possible to connect an optional external power supply...
-
Page 8: Technical Specifications
Power Supply_______________________ 3 x CR123 Lithium Working time ________________________________ 4.5-5hrs Temperature Range: CR123 Batteries______________-10C / +50C (14F – 122F) Dimensions________________165mm x 139mm x 66mm Weight_______________________________________ 1400g LUNA OPTICS, INC. 300 Hawthorn Dr. Fate, TX 75087 (USA) Tel: +1-972-722-1100; Fax: +1-844-273-3079; E-mail: info@lunaoptics.com Web: www.lunaoptics.com...
