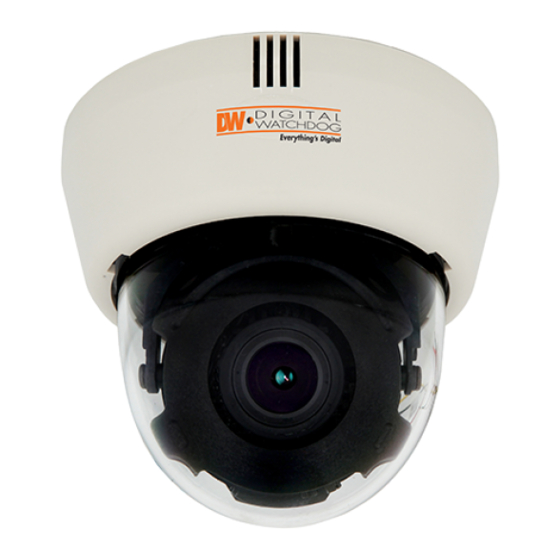

- Page 1 Indoor Dome Camera DWC-D4367WD DWC-D4367WTIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 12132012...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
- Page 3 TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Mount Installation Instructions Connecting to Monitors Adjusting the Camera Lens Adjusting the 3-Axis Gimbal Module OSD Menu 14-25 Troubleshooting Warranty Information 27-28 Specifications 29-30...
- Page 4 FEATURES* 1/3” Sony Super HAD CCD II 620 TV Lines (B&W), 600 TV Lines (Color) 3.3~12mm Varifocal Auto Iris Lens 70ft Range IR with Intelligent Camera Sync [DWC-D4367WTIR Only] Electronic Day and Night [DWC-D4367WD Only] TDN (True Day and Night / IR Cut Filter) [DWC-D4367WTIR Only] Smart DNR (Digital Noise Reduction) WDR (Wide Dynamic Range) Star-Light (Super Low Light Technology)
- Page 5 PART & DESCRIPTIONS* Lens Power Input Connctor 12VDC/24VAC Dual Voltage RS-485 Primary Video BNC-Output Connector Bubble Dome Cover Upper Case NO IR Camera Control Board Secondary Video-BNC Output Connector Mounting Screws...
- Page 6 DIMENSIONS IN MILLIMETERS (IN)* Surface Mount 108(4.25”) 40.5(1.59”) 96.8(3.81”) 56.3(2.22”) Top View 108(4.25”) (3.5”)
- Page 7 INSIDE THE BOX* Included with Snapit Indoor Dome Camera User Manual Mounting Template 2 Machine Screws and 2 Dry Wall Anchors Secondary Video-BNC Cable...
- Page 8 SURFACE MOUNT INSTALLATION INSTRUCTIONS* Squeeze the sides of the Use the camera’s mounting Drill holes into the drywall and camera and separate the template or your camera to insert the drywall mounts into camera module from the mark the holes as required. the holes.
- Page 9 WALL MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in Use the mount to mark the Secure the wall mount to the the box. pilot holes that are required. wall using the mounting Drill holes into the drywall screws. and insert the drywall mounts.
- Page 10 CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. DC 12V / AC 24V CCTV Monitor NO IR Second Video Output Monitor 300.0mm(11.8”) Power Connection: 12VDC & 24VDC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output for on-site configuration.
- Page 11 UTP SYSTEM* Passive to Passive Monitor Passive UTP UTP Cable (Max.300ft) DVR(Digital Video Recorder) Including the Passive UTP Passive to Active Monitor Active UTP UTP Cable (Max 3,000ft) DVR(Digital Video Recorder) Including the Passive UTP...
- Page 12 ADJUSTING THE CAMERA LENS* Follow the instructions provided below to make any lens adjustments. ZOOM FOCUS Zoom: Tele Wide NO IR Focus: Near Loosen the Zoom & Focus Handles by rotating them counter-clockwise. Adjust the field of view by moving the handles to the RIGHT (Tele) to zoom in, or to the LEFT (Wide) to zoom out. Adjust the focus the same way as described above AFTER the desired zoom position is established.
- Page 13 ADJUSTING THE 3-AXIS GIMBAL* The Gimbal mechanism yields maximum rotation and placement as shown below. NO IR NO IR Rotation 360 Panning 360 NO IR Tilting 90 Tilting 75...
- Page 14 MODULE OSD MENU* EXPOSURE COLOR DAY & NIGHT FUNCTION LENS WB MODE D&N MODE MIRROR MANUAL / DC AWC / ATW / MANUAL / PUSHLOCK AUTO / COLOR / B&W MIRROR / OFF BACKLIGHT RED GAIN NIGHT C. SHARPNESS OFF / BLC / HME / WDR 0 ~ 255 0 ~ 100 0 ~ 30...
- Page 15 EXPOSURE LENS Manual mode supports the fixed board lens or the manual iris Manual lens. DC mode supports the auto-iris varifocal lens. NOTE: Both MANUAL and DC mode have FOCUS TARGET. You can adjust the focus by finding the highest number on the FOCUS TARGET. See page 16 for focus information.
- Page 16 EXPOSURE BACKLIGHT BACK LIGHT COMPENSATION User can manually adjust the BLC level in five areas of the scene (TOP, BOTTOM, CENTER, LEFT, RIGHT). MANUAL Increase the BLC levels to make the image brighter. This is recommended. Camera will automatically detect and adjust the BLC zone. BLC levels to choose SMART from include: LOWEST, LOW, MID, HIGH.
- Page 17 EXPOSURE AGC (AUTO GAIN CONTROL) AGC enhances the picture brightness in low light conditions. A higher level AGC setting makes the images brighter; however, it could increase OFF / LOW / MID / HIGH / HIGHEST the amount of noise. STARLIGHT Starlight mode automatically activates slow shutter function when the image is too dark.
- Page 18 COLOR WB MODE Auto White Balance Control mode compensates for color temperature changes between 2000K and 18000K. Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K and 9500K. Users can control the white balance manually by changing RED MANUAL GAIN and BLUE GAIN (see below).
- Page 19 DAY & NIGHT D&N MODE Camera switches between day and night automatically depending AUTO on light level. Camera will stay in color mode when there is enough light. Camera will switch to B&W at night or other low light environments. If AUTO is selected, please define the following settings: *BURST: If ON is selected, the camera provides a color burst signal *in night mode.
- Page 20 FUNCTION MIRROR Flips the image horizontally. MIRROR SHARPNESS Sets the image sharpness. The higher the number, the sharper 0 ~ 30 the image. GAMMA Select the desired gamma level. 0.45 is default setting. 0.45 / 0.60 / 1.0 / MANUAL SLC (SIDE LIGHT COMPENSATION) Increase the brightness on sides of the image.
- Page 21 MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. AREA SET OFF / ON AREA 1 ~ 4 If ON, motion areas can be selected and moved accordingly. Select Areas 1-4 and adjust using controls for TOP, BOTTOM, LEFT, or RIGHT.
- Page 22 PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. MASK 1 ~ MASK 8 Select ON or OFF for each mask (MASK 1 through 8). OFF / ON If ON is selected you can set the area to be masked and the shape and color of the mask.
- Page 23 SETUP TITLE If ON is selected, you can display the camera title on the screen. OFF / ON *CLR: Clear the title. *POS: Position the title on the screen. DPC (DEAD PIXEL CANCELLATION) DPC automatically removes defective pixels in real time. If AUTO is selected, you can define the following settings: AUTO *WHITE THR: Cancels the white defective pixels.
- Page 24 SETUP MONITOR MODE 1 is the default. If the displayed image is not good enough, try MODE 2. MODE 1 MODE 2 LANGUAGE The camera supports the following languages: ENGLISH, CANTONESE, MANDARIN, JAPANESE, DEUTSCH, FRENCH, ITALIAN, RUSSIAN, SPANISH, AND DUTCH. OSD COLOR The following colors are available for the OSD menu: BLUE, GREEN, CYAN, RED, MAGENTA, YELLOW, PURPLE, and GRAY.
- Page 25 EXIT EXIT Save the current settings and exit the OSD menu. SAVE & EXIT Exit the OSD menu without saving the changes. EXIT...
- Page 26 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current. FOR OUT-OF-FOCUS VIDEO Check the clear dome cover and the lens for dirt or fingerprints.
- Page 27 WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
- Page 28 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
- Page 29 SPECIFICATIONS* DWC-D4367WD & DWC-D4367WTIR VIDEO Image Sensor 1/3" Sony Super HAD CCD II Total Pixels 811 (H) x 508 (V), 411K Pixels Effective Pixels 768 (H) x 494 (V) Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal or Line Lock Horizontal Resolution 620 TV Lines [B&W], 600 TV Lines [Color] Minimum Illumination F1.2 (30IRE): 0.14 Lux [Color]...
- Page 30 OPERATIONAL Backlight Compensation OFF / BLC / HME / WDR Star-Light OFF / AUTO (X2-X1024) Privacy Zones OFF / ON (8 Programmable Zones) Language ENGLISH / MANDARIN / CANTONESE / JAPANESE / GERMAN FRENCH / ITALIAN / RUSSIAN / SPANISH / DUTCH ENVIRONMENTAL Operating Temperature C ~ 55...
