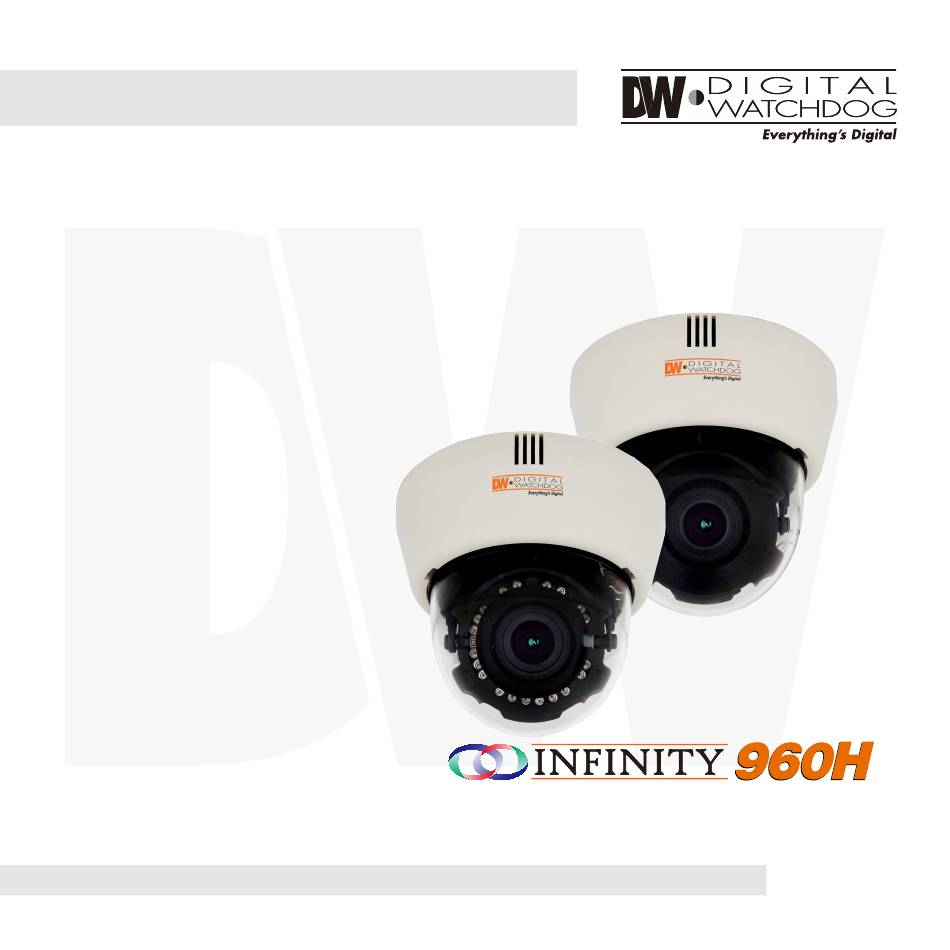

- Page 1 960H SNAP-IT Indoor Dome Camera DWC-D4567WD DWC-D4567WTIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 12132012...
-
Page 2: Fcc Compliance
PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages. - Page 3 Table of Contents Introduction Features Parts and Descriptions Dimensions Installation Included Accessories Easy Installation 9-11 Mounting Installation Instructions Connecting to Monitors UTP System Adjusting the Camera Adjusting the 3-Axis Gimbal Camera OSD Menu and Glossary 16-32 Troubleshooting Warranty Information 34-35 Specifications 36-37...
- Page 4 FEATURES* DWC-D4567WD / DWC-D4567WTIR 1/3” 960H High Resolution CCD 700 TV Lines 3.3~12mm Varifocal Auto Iris Lens 70ft Range IR with Intelligent Camera Sync [D4567WTIR Only] True Day and Night [D4567WTIR Only] Star-Light (Super Low Light Technology) EWDR (Electronic Wide Dynamic Range) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure) AGC / SMART BLC / AWB...
-
Page 5: Parts & Descriptions
PARTS & DESCRIPTIONS* Lens Power Input Conne ctor 12VDC/24VAC Dual Voltage RS 485 Primary Video BNC Output Connector NO IR Dome Cover Upper Case Control Board Secondary Video BNC Output Connector Mounting Screws Joystick... -
Page 6: Dimensions In Millimeters (Inches)
DIMENSIONS IN MILLIMETERS (INCHES)* Indoor Surface Mount (4.25”) (1.59”) 40,5 3.50”) 96,8 (3.81”) 56,3 (2.22 ”) TOP VIEW (4.25”) -
Page 7: Installation
INSTALLATION* Included with Indoor Dome Camera 1. User Manual 2. Mounting Template 3. Second Video Jack 4. Two (2) Assembly Screws and Two (2) Wall Anchors... -
Page 8: Easy Installation
EASY INSTALLATION*... -
Page 9: Surface Mount Installation Instructions
SURFACE MOUNT INSTALLATION INSTRUCTIONS* Squeeze the sides of the Use the camera’s mounting Drill holes into the drywall and camera and separate the template or your camera to insert the drywall mounts into camera module from the mark the holes as required. the holes. -
Page 10: Wall Mount Installation Instructions
WALL MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in Use the mount to mark the Secure the wall mount to the the box. pilot holes required. Drill wall using the mounting holes into the drywall and screws. insert the drywall mounts. Attach the base of the camera Adjust the camera lens, and to the wall mount with the... -
Page 11: Mounting On Electrical Junction Box
MOUNTING ON ELECTRICAL JUNCTION BOX* NO IR Philips #8-32 x 0.75 NOTE: Screws required for electrical junction boxes are not supplied. These screws are readily available at an electrical supply store. -
Page 12: Connecting To Monitors
CONNECTING TO MONITORS* DC 12V / AC 24V CCTV Monitor NO IR Left Right Down 2nd Video Output Monitor 300.0 Power Connection - 12V DC / 24V AC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output on the camera’s Control Board for easy on-site configuration. - Page 13 UTP SYSTEM* Passive to Passive Passive UTP Monitor UTP Cable ( 300 ft) Max. DVR (Digital Video Recorder) Including the Passive UTP Passive to Active Active UTP Monitor UTP Cable ( 3,000 ft) Max. DVR (Digital Video Recorder) Including the Passive UTP...
-
Page 14: Adjusting The Camera
ADJUSTING THE CAMERA* Follow the instructions provided below to make any lens adjustments. ZOOM FOCUS Zoom: Tele Wide NO IR Focus: Near Loosen the Zoom & Focus Handles by rotating them counter-clockwise. Adjust the Field of View by moving the handle to the RIGHT (Tele) to zoom in, or to the LEFT (Wide) to zoom out. -
Page 15: Adjusting The 3-Axis Gimbal
ADJUSTING THE 3-AXIS GIMBAL* The Gimbal mechanism yields maximum rotation and placement as shown below. -
Page 16: Module Osd Menu
MODULE OSD MENU* EXPOSURE COLOR DAY NIGHT LENS WB MODE D&N MODE Manual / DC (0~99) AWC / ATW / MANUAL / PUSH AUTO / COLOR / B&W E. SHUTTER R-Y GAIN C-SUP x256 ~ x2, 1/60, 1/100 FLC, 0~255 0~100 1/120 ~ 1/100000 B-Y GAIN... - Page 17 EXPOSURE LENS MANUAL mode supports MANUAL Select DC and control Joystick to DC mode supports an a Fixed Board lens adjust the brightness level from Auto-Iris Varifocal lens. or a Manual Iris lens. 0~99. E. SHUTTER 1/60 is the default shutter speed. Select 1/100FLC for flickerless mode.
- Page 18 EXPOSURE When BLC is enabled, adjust the BLC Level in five areas in Backlight compensation prevents subjects in the screen. Each can be adjusted from 0 to 255. Move the defined areas of the scene from appearing joystick controller LEFT and RIGHT to adjust the values in too dark when backlighting is present.
- Page 19 EXPOSURE Auto Gain Control automatically adjusts the video gain to enhance picture brightness in low light conditions. Select AGC OFF / LOW / MIDDLE / HIGH. STARLIGHT Starlight automatically activates the slow shutter function when a scene is too dark. You can adjust the frame integration level from X2 to X256, or select OFF.
- Page 20 COLOR WB MODE Auto White Balance Control mode compensates for color temperature changes between 2000K and 18000K. Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K and 9500K. Users can control the white balance manually by MANUAL changing Red Gain (M.WB R) and Blue Gain (M.WB B).
- Page 21 DAY NIGHT DAY & NIGHT AUTO Camera switches between day and night automatically depending on certain light levels. COLOR Camera always stays in day mode. Camera always stays in night mode. ※ If AUTO is selected, please define the following settings. ▪...
- Page 22 FUNCTION MIRROR Flips the image horizontally. MIRROR / OFF SHARPNESS Sets image sharpness. The higher the number, the 0~25 sharper the image. GAMMA Controls the output signal level. The higher the setting, the darker the dark colors will be. 0.45 is the default. NEGA Negative reverses the color signals (C and Y).
- Page 23 FUNCTION Highlight Masking Exposure masks highlights and allows objects to appear more clearly. If ON is selected, the HME level can be adjusted from 0 to 60. EXIT JUMP EXIT Exit the OSD without saving. SAVE & EXIT Exit the OSD after saving the current settings. FACTORY SET Go back to factory default settings.
-
Page 24: Set Window
MOTION MOTION The camera can detect movement and display an alarm on the screen. SET WINDOW If ON is selected, 1 ~ 240 motion areas appear. Select from 1 to 240 cells. To exit: go to cell in upper right-hand corner and move joystick to the right to return to the OSD menu. - Page 25 MOTION SHOW INDI. TRACE Set the motion detection indicator to OFF / ICON / TRACE If ICON is selected, a blue bell will appear in the upper left hand corner of the screen when motion is detected. If TRACE is selected, the area where motion was detected will be highlighted.
- Page 26 PRIVACY Parts of the screen can be hidden by privacy masking. A total of 6 different privacy masking zones are available. MASK 1~ MASK 6 Select ON or OFF for each mask OFF / ON (MASK 1 through 6). If ON is selected, you can set the area to be masked and the shape and color of the mask. Select SET WINDOW.
-
Page 27: Sync Mode
SYNC SYNC MODE Select AUTO / INTER. - Select AUTO (L/L) to synchronize video signals when two or more cameras are using AC power in a switching system. V-PHASE When more than two cameras are installed in a switching system, phase difference in the AC power line can occur. - Page 28 SET-UP CAMERA ID Assign an ID number for the camera. Select a value from 0 to 254 . TITLE Display a title for the camera on the screen. Select ON / OFF. If ON is selected, define the following settings. - EDIT to select characters.
- Page 29 SET-UP DPC (Dead Pixel Cancellation) Dead Pixel Cancellation automatically removes defective pixels in real time. Select OFF or AUTO. If AUTO is selected, define the following: - WHITE THR.: Cancels the white defective pixels. - BLACK THR.: Cancels the black defective pixels.
- Page 30 SET-UP LANGUAGE Select language to display on the monitor. Select ENG / CHN. BAUDRATE Adjust the data communication speed. Select 2400 / 4800 / 9600 / 14400 / 19200 / 38400.
- Page 31 SET-UP OMNI LENS Set the OMNI LENS menus when you use an Omni Focus Lens. If 0 (=ON) is selected, set the following sub-menus: - ALARM Works with the MOTION DETECT function. When motion is detected, the camera gives off an alarm. Select ON or OFF. - READ TIME Set how many seconds to stay zoomed in when alarm occurs.
- Page 32 EXIT EXIT Exit the OSD without saving. SAVE & EXIT Exit the OSD after saving the current settings. FACTORY Go back to factory default settings.
-
Page 33: Troubleshooting
TROUBLESHOOTING Before sending your camera for repair, check the following or contact one of our technical specialists. No VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the menu setup of the camera. Check the power supply and make sure the camera has the proper voltage and current. -
Page 34: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR : For the initial five (5) years and one (1) year on IR LED from the original purchase date,... -
Page 35: Limits And Exclusions
LIMITS AND EXCLUSIONS* There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including without limitation or damage to recording media), resulting from the use of these products or arising out of any breach of the warranty. -
Page 36: Specifications
SPECIFICATIONS* VIDEO Image Sensor 960H Sharp CCD Total Pixels 1020 (H) x 507 (V), 520K Pixels Scanning System 2 : 1 Interlace Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal or Auto Horizontal Resolution 650 TV Lines [Color], 700 TV Lines [B/W] Minimum Illumination F1.2 (30IRE): 0.3 Lux [Color] F1.2 (30IRE): 0.0 Lux [B/W]... - Page 37 OPERATIONAL Sharpness 0-25 Gamma MANUAL / 0.45 / 0.60 / 1.00 Motion Detection OFF / ON Privacy Zones OFF / ON (6 Programmable Zones) Title ON / OFF (Up to 16 Characters) Language ENGLISH / CHINESE ENVIRONMENTAL Operating Temperature C ~ 55 C (14 F ~ 131 Operating Humidity...
