Summary of Contents for Digital Watchdog DWC-D6351D

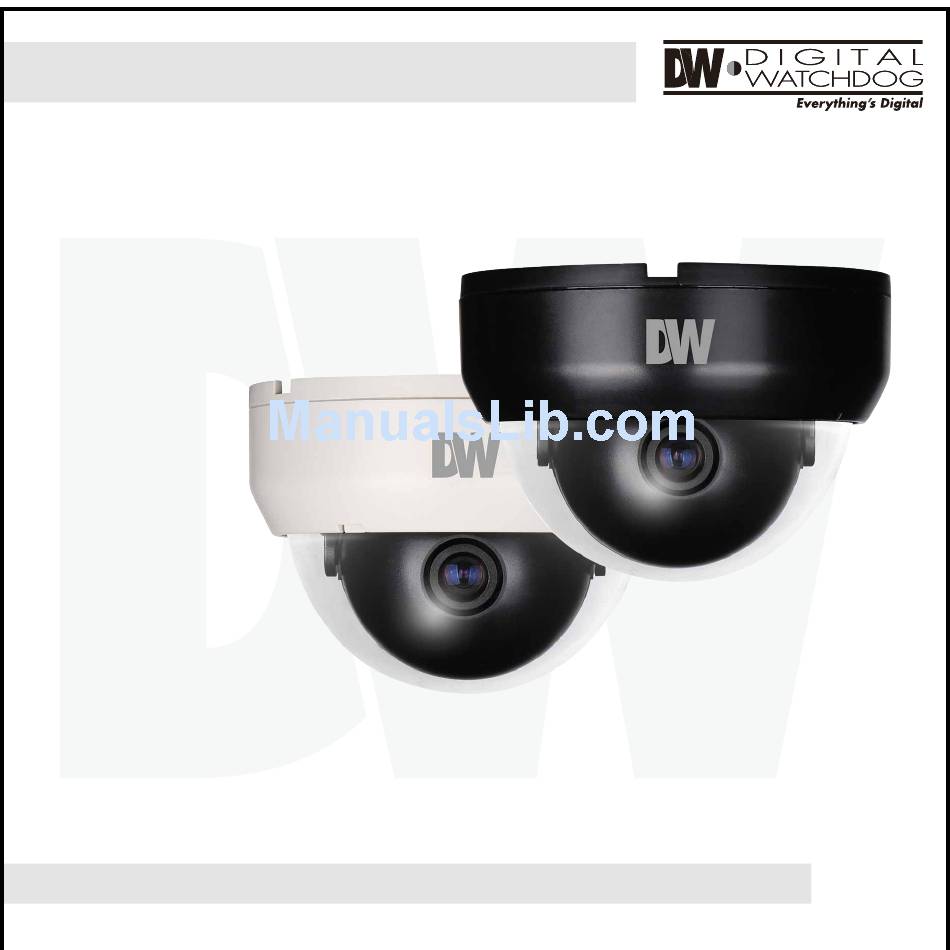

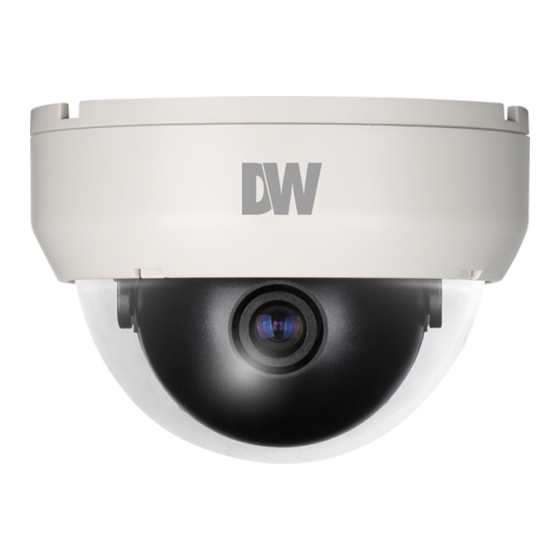

- Page 1 Indoor Dome Camera DWC-D6351D DWC-D6351DB ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 10252013...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Installation Instructions Connecting to Monitors Adjusting the Camera Angle Troubleshooting Warranty Information 13-14 Specifications... - Page 4 FEATURES* 1/”3 CMOS Sensor 600 TV Lines [B/W], 580 TV Lines [Color] 3.6mm Fixed Lens Electronic Day & Night DRC (Dynamic Range Compressor) 2D DNR (2D Digital Noise Reduction) HME (Highlight Masking Exposure) SLC (Side Light Compensation) Available in Charcoal and Ivory color Models...
- Page 5 PARTS & DESCRIPTION* Bottom Case Camera Gimbal Upper Case Dome Cover...
-
Page 6: Dimensions
DIMENSIONS IN MILLIMETERS (IN)* 90.0 3.54” 90.0 3.54” 67.0 2.64” 8.0 0.31” 5.0 0.20”... -
Page 7: Inside The Box
User Manual Mounting Template 2 Machine Screws and 2 Dry Wall Anchors Indoor Dome IR Camera DWC-D6351D DWC-D6351DB ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. -
Page 8: Easy Installation
EASY INSTALLATION* camera... -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS* 1. Use the camsera or mounting template to mark and drill the necessary holes in the wall or ceiling. 2. Pull wires through and make connections. 3. Using the two (2) included screws, mount and secure the camera to the wall or ceiling. -
Page 10: Connecting To Monitors
CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC CCTV Monitor Power Connection - 12VDC... - Page 11 ADJUSTING THE CAMERA GIMBAL* Non IR Non IR Rotation 360º Panning 360º Non IR Tilting 75º...
-
Page 12: Troubleshooting
TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the power supply and make sure the camera has the proper voltage and current. -
Page 13: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial two (2) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge. - Page 14 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
-
Page 15: Specifications
SPECIFICATIONS* VIDEO Image Sensor 1/3” CMOS Sensor Total Pixels 728 (H) X 488 (V) Scanning System 2 : 1 Interlace Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal Horizontal Resolution 600 TV Lines [B/W], 580 TV Lines [Color] Minimum Illumination F1.2 (30IRE): 0.17 Lux [Color] F1.2 (30IRE): 0.06 Lux [B/W] S/N Ratio 52dB (AGC off) - Page 16 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 8:30am to 8:00pm EST...
