Digital Watchdog DWC-D2252DIR User Manual

Indoor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DWC-D2252DIR, D2262DIR, D2362DIR
DWC-D2363D, D2363TIR
DWC-D2367WD, D2367WTIR

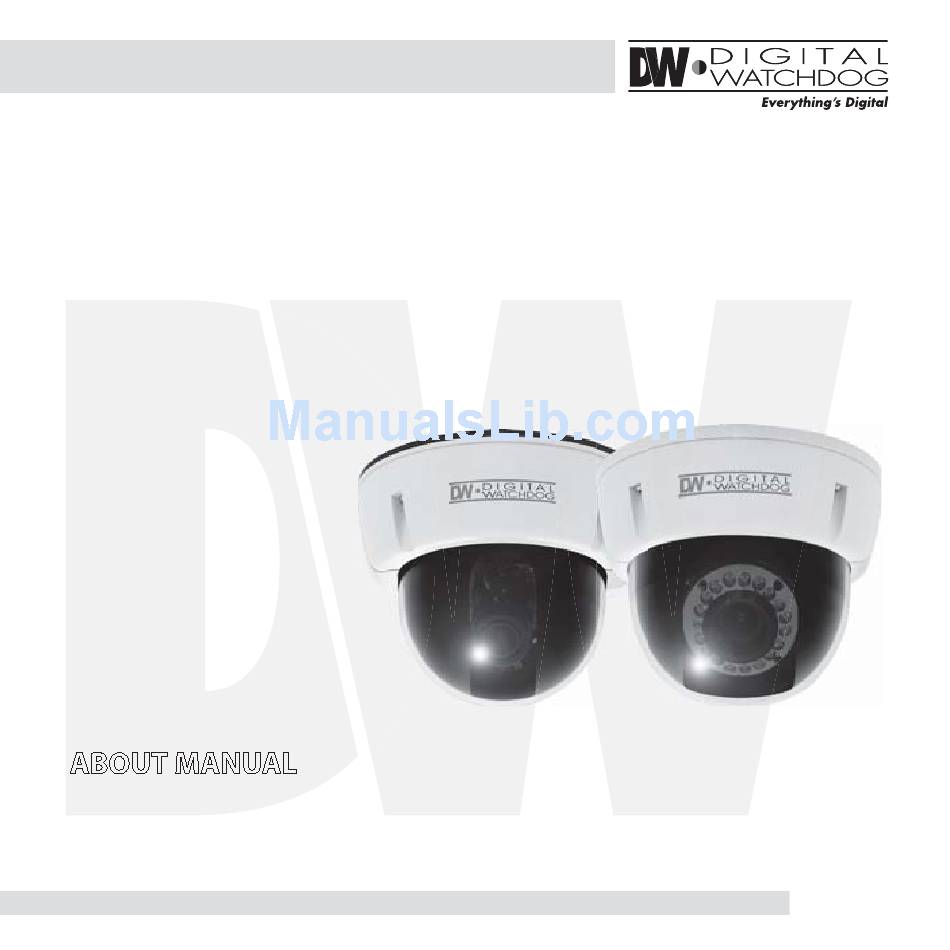

Indoor Dome Camera

User Manual

ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
12232010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWC-D2252DIR and is the answer not in the manual?

Questions and answers

Related Manuals for Digital Watchdog DWC-D2252DIR

Summary of Contents for Digital Watchdog DWC-D2252DIR

  • Page 1: User Manual

    DWC-D2252DIR, D2262DIR, D2362DIR DWC-D2363D, D2363TIR DWC-D2367WD, D2367WTIR Indoor Dome Camera User Manual ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 12232010...
  • Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. or other damages. Be careful when handling the unit. To prevent damages, do not drop the camera or subject it to shock or vibration.
  • Page 3 TROUBSHOOTING Before sending your camera for repair, check the following or contact our technical specialist. No Video Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the menu setup of the camera. Check the power supply and make sure the camera has the proper voltage and current.
  • Page 4 FEATURES * - D2252DIR, D2262DIR 1/3” Sony Super HAD II CCD 420 TV Lines 3.6mm Fixed Lens (D2252DIR) 3.3 ~ 12m Varifocal Auto Iris Lens (D2262DIR) 100ft Range IR with Intelligent Camera Sync Electronic Day and Night DRC (Dynamic Range Compressor) HME (Highlight Masking Exposure) SLC (Side Light Compensation) AGC / BLC / AWB...
  • Page 5 FEATURES * - D2362DIR 1/3” Sony Super HAD II CCD 540 TV Lines 3.3 ~ 12mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camera Sync Electronic Day and Night DRC (Dynamic Range Compressor) HME (Highlight Masking Exposure) SLC (Side Light Compensation) AGC / BLC / AWB Negative Imaging Mirror Image Control...
  • Page 6 BLC (Back Light Compensation) Programmable Privacy Zone (8) & Motion Detection Easy Icon Driven OSD Menu with Built-in Joystick Auto Sensing 12VDC/24VAC with Line Lock Secondary Video-BNC Output FEATURES * - D2363TIR 1/3” Sony Super HAD II CCD High Resolution 560 TV Lines 3.3 ~ 12mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camera Sync True Day and Night / TDN5...
  • Page 7 FEATURES * - D2367WD 1/3” Sony Super HAD II CCD 560 TV Lines 3.3 ~ 12mm Varifocal Auto Iris Lens Electronic Day and Night EWDR (Electronic Wide Dynamic Range) Star-Light (Super Low Light Technology) DSS (Digital Slow Shutter) 3D-DNR (3D Digital Noise Reduction) DIS (Digital Image Stabilizer) HME (Highlight Masking Exposure) AGC / BLC / AWB...
  • Page 8 FEATURES * - D2367WTIR 1/3” Sony Super HAD II CCD 560 TV Lines 3.3 ~ 12mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camera Sync True Day and Night / TDN5 EWDR (Electronic Wide Dynamic Range) Star-Light (Super Low Light Technology) DSS (Digital Slow Shutter) 3D-DNR (3D Digital Noise Reduction) DIS (Digital Image Stabilizer)

  • Page 9: Dimension (Mm)

    DIMENSION (mm) * 103.1 109.6 41.3 91.0 85.0 91.0 85.0 117.0 125.0 VIDEO (YELLOW) BNC JACK L= 300mm DC 12V or AC24V BLACK 5mm TWIST SOLDERING RS485 (Black+ & White -)

  • Page 10: Power Requirement

    Power Requirement * Power Wire Maximum Distance Wire Gauge 12VDC 24VAC 24 AWG 80ft 323ft 22 AWG 128ft 513ft 20 AWG 203ft 815ft 18 AWG 323ft 1295ft 16 AWG 514ft 2056ft 14 AWG 816ft 3264ft 12 AWG 1295ft 5183ft 10 AWG 2057ft 8228ft Coaxial Cable Type Maximum Distance...

  • Page 11: Camera Installation

    INSTALLATION * Included with Digital Watchdog Camera: 1. User Manual 2. Mounting Template 3. Security L-Key 4. Single Sided Hex Key 5. Secondary BNC Cable for a Field Monitor 6. Four (4) Screws and Four (4) Dry Wall Anchors Camera Installation Use the Mounting Template (2) when mounting the camera.
  • Page 12 INSTALLATION * A. Loosen the Screws (A) with the Security L-Key included with your camera. B. Separate the Upper Case (B) from the Base (F). C. Cut a hole in the ceiling for routing the cables. D. Use the Mounting Template to drill the four screw holes on the surface of the ceiling.
  • Page 13 CONNECTION * DC12V / AC24V BNC Cable Video Output Main Monitor Spot Monitor Cable Field Test Monitor...

  • Page 14: Lens Adjustment

    LENS ADJUSTMENT * B.Focus Lever A. Zoom Lever A. Move the Zoom Lever until you get the desired position. B. Move the Focus Lever until you get the desired focus.
  • Page 15 CAMERA SETTING & ON-SCREEN DISPLAY * D2252DIR, D2262DIR, D2362DIR, D2363D, D2363TIR, D2367WD, D2367WTIR Dip Switch for the IR Remote Controller Mini Joystick for the Menu Setup RIGHT DOWN LEFT Field Test Monitor Video Output RS485 Connector...

  • Page 16: Module Osd Menu

    MODULE OSD MENU * (D2252DIR, D2262DIR, D2362DIR) EXPOSURE COLOR DAY&NIGHT BRIGHTNESS WB MODE D&N MODE SHUTTER FUNCTION MOTION PRIVACY MIRROR ALARM MASK 1 SHARPNESS MASK 2 GAMMA MASK 3 MASK 4 COLOR SET SYNC SETUP EXIT SYNC CAMERA ID EXIT TITLE EDIT SAVE &...

  • Page 17: Osd Menu

    OSD MENU * (D2252DIR, D2262DIR, D2362DIR) EXPOSURE BRIGHTNESS MANUAL (ELC LEVEL : 0 ~ 100) / DC (DC LEVEL : 0 ~ 31) SHUTTER 1/60, 1/100FLC, 1/120 ~ 1/100000 OFF / ON BLC (Back Light Compensation) OFF / 12dB ~ 36dB AGC (Auto Gain Control) EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET...
  • Page 18 FUNCTION MIRROR OFF/ MIRROR SHARPNESS 0 ~ 49 GAMMA USER / 0.45 / 0.6 / 1.00 OFF / ON (0 ~ 50) SLC (Side Light Compensation) OFF / ON (0 ~ 55) HME (Highlight Masking Exposure) OFF /ON DIS (Digital Image Stabilizer) EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET MOTION (OMNI-Plus Cameras Only)
  • Page 19 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON COLOR SET BLACK / GRAY / COLOR 1~ 6 EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SYNC SYNC MODE INTERNAL / AUTO V-PHASE 0 ~ 199...
  • Page 20 MODULE OSD MENU * (D2363D, D2363TIR) EXPOSURE COLOR DAY&NIGHT BRIGHTNESS WB MODE D&N MODE SHUTTER R-Y GAIN C_SUP BLC / HME B-Y GAIN A_SUP STARLIGHT FUNCTION MOTION PRIVACY MIRROR MOTION PRIVACY SHARPNESS GAMMA FREEZE NEGATIVE D-ZOOM 3D DNR SYNC SETUP EXIT SYNC TITLE EDIT...
  • Page 21 OSD MENU * (D2363D, D2363TIR) EXPOSURE BRIGHTNESS 0 ~ 100 SHUTTER 1/60, FLK, 1/120 ~ 1/100000 OFF / ON , BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (Auto Gain Control) OFF / AUTO (x2 ~ x256) STARLIGHT x32 is recommended.
  • Page 22 FUNCTION MIRROR OFF/MIRROR/V-FLIP/ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF/ ON OFF / ON (0 ~ 100) 3D-DNR 3D-DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) OFF / INDOOR / OUTDOOR DRC (Dynamic Range Compressor) OFF / ON...
  • Page 23 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON MASK 7 OFF / ON MASK 8 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SYNC...
  • Page 24 MODULE OSD MENU * (D2367WD, D2367WTIR) EXPOSURE COLOR DAY&NIGHT BRIGHTNESS WB MODE D&N MODE SHUTTER R-Y GAIN C_SUP B-Y GAIN A_SUP MAX_DR STARLIGHT FUNCTION MOTION PRIVACY MIRROR MOTION MASK 1 SHARPNESS MASK 2 GAMMA MASK 3 FREEZE MASK 4 NEGATIVE MASK 5 3D DNR MASK 6...
  • Page 25 OSD MENU * (D2367WD, D2367WTIR) EXPOSURE LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.) SHUTTER 1/60, 1/100FLC, 1/120 ~ 1/100000 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF Auto Gain Control MAX-DR OFF /ON (0~ 20) (Electronic Wide Dynamic Range) OFF / AUTO (x2 ~ x256)
  • Page 26 FUNCTION MIRROR OFF/MIRROR/V-FLIP/ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF/ ON OFF / LOW / MIDDLE / HIGH 3D-DNR 3D Digital Noise Reduction D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) OFF / ON Side Light Compensation OFF / ON Highlight Masking Exposure...
  • Page 27 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SYNC SYNC INTERNAL / AUTO V-PHASE...

  • Page 28: Specifications

    SPECIFICATIONS * Model D2252DIR / D2262DIR Camera TYPE Color/BW Indoor Dome Camera Mount Surface Super HAD II CCD Image Device Size 1/3" Pixels-Total 537(H) x 505(V) 510(H) x 492(V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min.
  • Page 29 SPECIFICATIONS * Model D2362DIR Camera TYPE Color/BW Indoor Dome Camera Mount Surface Image Device Super HAD II CCD Size 1/3" Pixels-Total 811(H) x 508(V) 768(H) x 494(V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min.
  • Page 30 SPECIFICATIONS * Model D2363D Camera TYPE Color/BW Indoor Dome Camera Mount Surface Image Device Super HAD II CCD Size 1/3” Pixels-Total 811 (H) x 508 (V) 768 (H) x 494 (V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz...
  • Page 31 SPECIFICATIONS * Model D2363TIR Camera TYPE Color/BW Indoor Dome Camera Mount Surface Image Device Super HAD II CCD Size 1/3” Pixels-Total 811 (H) x 508 (V) 768 (H) x 494 (V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz...
  • Page 32 SPECIFICATIONS * Model D2367WD Camera TYPE Color/BW Indoor Dome Camera Mount Surface Image Device Super HAD II CCD Size 1/3” Pixels-Total 811 (H) x 508 (V) 768 (H) x 494 (V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz...
  • Page 33 SPECIFICATIONS * Model D2367WTIR Camera TYPE Color/BW Indoor Dome Camera Mount Surface Image Device Super HAD II CCD Size 1/3” Pixels-Total 811 (H) x 508 (V) 768 (H) x 494 (V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz...

  • Page 34: Warranty Information

    WARRANTY INFORMATION * Digital Watchdog (referred to as “the Warrantor”) warrants the Camera Series against defects in materials or workmanship as follows. LABOR : For the initial five (5) years from the date of original purchase, if the camera is determined to be defective, the Warrantor will repair or replace the unit, with new or refurbished product at its option, at no charge.

  • Page 35: Limits And Exclusions

    LIMITS AND EXCLUSIONS * There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages, including without limitation and damage to recording media, resulting from the use of these products or arising out of any breach of the warranty.
  • Page 36 5436 W Crenshaw St. Tampa, FL 33634 Tel: 866-446-3595 / 813-888-9555 Fax: 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours: Monday-Friday 8:30am to 8:00pm EST...
