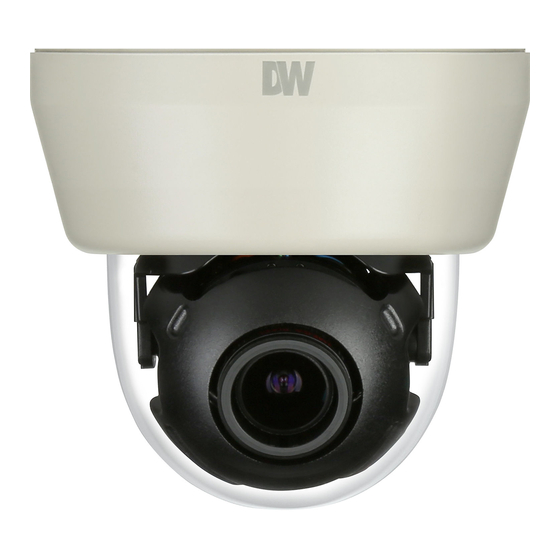

Digital Watchdog STAR-LIGHT DWC-D4283WD User Manual

Universal hd over coax snapit indoor dome cameras
Hide thumbs Also See for STAR-LIGHT DWC-D4283WD:
Table of Contents

Advertisement

Quick Links

Download this manual

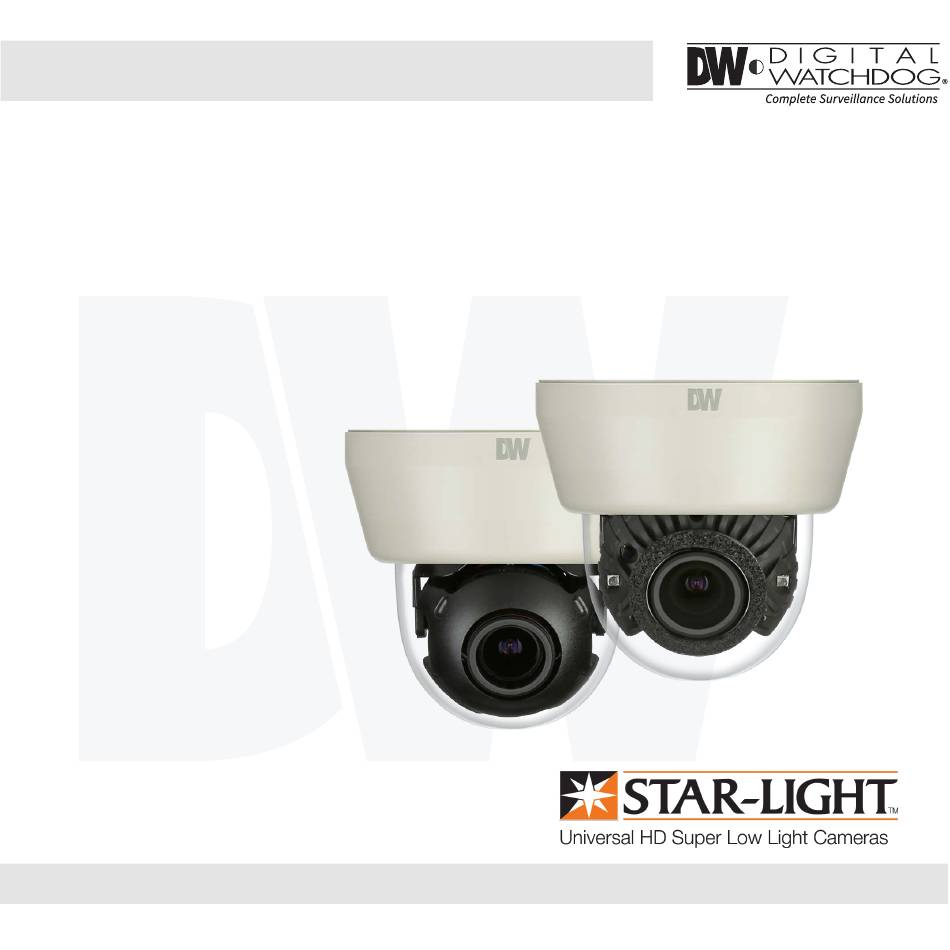

STAR-LIGHT Universal HD
over Coax
Dome Cameras
DWC-D4283WD
DWC-D4283WTIR
User's Manual
Ver. 08/17
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
Snapit
TM
Indoor
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAR-LIGHT DWC-D4283WD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digital Watchdog STAR-LIGHT DWC-D4283WD

Summary of Contents for Digital Watchdog STAR-LIGHT DWC-D4283WD

  • Page 1 STAR-LIGHT Universal HD over Coax Snapit Indoor Dome Cameras DWC-D4283WD DWC-D4283WTIR User’s Manual Ver. 08/17 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
  • Page 2 Index INTRODUCTION Safety Information Features Part Name Dimension Product & Accessories INSTALLTION Installation Connecting to Monitors Control Board Adjusting the Camera angle OSD MENU Menu Tree OSD Menu - Exposure OSD Menu - Color OSD Menu - Day&Night OSD Menu - Function OSD Menu - Motion OSD Menu - Privacy OSD Menu - Setup...

  • Page 3: Safety Information

    Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and...
  • Page 4 Safety Information 7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock. 8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.

  • Page 5: Important Safety Instructions

    Important Safety Instructions 1. Read these instructions. All these safety and operating instructions should be read before the product is installed or operated. 2. Keep these instructions. The safety, operating and use instructions should be retained for future reference. 3. Heed all warnings. All warnings on the product and in the operating instructions should be adhered to.

  • Page 6: Disposal Of Old Appliances

    Important Safety Instructions 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
  • Page 7 Features Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support STAR-LIGHT™ Super Low Light Technology 2.1MP 1/3" Image Sensor at Real-time 30fps Microphone Built-in Auto Focus P-Iris Lens from 2.8~12mm True Wide Dynamic Range (WDR) OSD Control Via Coaxial (UTC) Snapit™...
  • Page 8 Part name Bubble Dome Cover Upper Case Vent Mic connector Lens Tilt Stopper Screw Cables: Audio, UTP, RS485, Alarm Joystick Test Video Cable Slot BNC Cable Power Cable...
  • Page 9 Dimension Unit : Inches (mm) 2.21" (56.3mm) 1.6" (40.5mm) 4.25" (108mm) 4.25" (108mm)

  • Page 10: Product And Accessories

    Product & Accessories Please check if all the camera and accessories are included in the package. Camera Cables DC Plug Cable Manual Screw & Test Video Cable Template Sheet Plastic Anchor-2pcs NOTE : The ‘Test Video Cable’ is used to test the camera by connecting to a portable display.

  • Page 11: Installation Instructions

    Installation- Instructions To remove the camera’s dome for installation, squeeze the sides of the camera and separate the camera module from the camera dome. Use the camera’s mounting template or your camera and drill the necessary mounting holes to the mounting surface. Pull wires through and make connections.
  • Page 12 Connecting to DVR/Encoder (Coax) Use the diagram below to connect to an Universal DVR or CRT Monitor properly. Coax Video Output Mode (Default Mode) 12VDC/24VAC UNIVERSAL DVR COAX Test Video Output UTP/Coax switch Monitor COAX - Power Connection : 12VDC/24VAC Dual Voltage. (Auto Polarity Detection and Protection) - All cameras are equipped with a test video output for on-site con guration.
  • Page 13 Connecting to DVR/Encoder (UTP) Use the diagram below to connect to an Universal DVR or CRT Monitor properly. UTP Video Output Mode 12VDC/24VAC UNIVERSAL DVR Balun (Receiver at DVR side) Test Video Output UTP/Coax switch Monitor COAX - Power Connection : 12VDC/24VAC Dual Voltage. (Auto Polarity Detection and Protection) - All cameras are equipped with a test video output for on-site con guration.

  • Page 14: Control Board

    Control Board OSD Joystick RS 485 ALARM AUDIO BK D+ WH D- - OSD Joystick : The function setting and video output can be adjusted with OSD joystick. (default : HD-A) Image Mode Switches to HD-TVI mode when press OSD Joystick to left 5sec or longer. Switches to HD-A mode when press OSD Joystick to right 5sec or longer.

  • Page 15: Adjusting The Camera Angle

    Adjusting the Camera angle Panning 360º Rotation 350º Tilting 75º (Non-IR 75º)

  • Page 16: Osd Menu Tree

    OSD Menu Tree NOTE : The function setting can be adjusted with both switch (OSD joystick) and remote control through RS485 or UTC. In case of camera without OSD joystick, it can be adjusted with coaxial (UTC) only. EXPOSURE MOTION EXPO MOTI MOTION...
  • Page 17 OSD Menu Exposure LENS MANUAL : Manual mode supports the xed board lens or the manual iris lens. AUTO : AUTO mode sets the camera’s iris automatically. EXPOSURE LENS EXPO D&N FUNC MOTI PRIV EXIT LENS AUTO BACKLIGHT LEVEL BRIGHTNESS DEFOG SHUTTER AUTO...
  • Page 18 OSD Menu Exposure 4. 2-MOTOR Set the 2-Motor Lens sub-menu. EXPOSURE LENS 2-MOTOR EXPO D&N FUNC MOTI PRIV EXIT LENS AUTO BACKLIGHT LEVEL AF MODE AUTO BRIGHTNESS ZOOM SET STOP DEFOG SHUTTER AUTO FOCUS SET ____ SCANNING HALF 2-MOTOR ONEPUSHAF RETURN SENS-UP SYNC TDN...
  • Page 19 OSD Menu Exposure BACKLIGHT HME HIGHLIGHT MASKING EXPOSURE HME allows objects to appear clearly on the screen by EXPOSURE masking extremely bright areas. To setup HME, set the EXPO D&N FUNC MOTI PRIV EXIT level and color. The lower the setting, the darker the LENS AUTO BACKLIGHT...
  • Page 20 OSD Menu Exposure EXPOSURE DEFOG EXPO D&N FUNC MOTI PRIV EXIT LENS AUTO MODE AUTO BACKLIGHT LEVEL ____ RETURN DEFOG STARLIGHT 3D DNR HIGH EXIT JUMP DRC ( DYNAMIC RANGE COMPRESSOR ) DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image.

  • Page 21: Color Gain

    OSD Menu Color WB MODE COLOR WHITE BAL. EXPO D&N FUNC MOTI PRIV EXIT WHITE BAL. AUTO C-TEMP 5000K COLOR GAIN R-GAIN EXIT JUMP B-GAIN RETURN AUTO Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K ˚ and 12000K ˚. AUTO-EX Auto White Balance Control mode compensates for color temperature changes lower than 2500K ˚...
  • Page 22 OSD Menu Day & Night DAY/NIGHT EXPO D&N FUNC MOTI PRIV EXIT MODE AUTO AGC THRES ____ AGC MARGIN ____ CDS THRES CDS MARGIN EXTERN SW EXT LED AUTO DELAY SMART IR EXIT JUMP MODE AUTO : Day/ Night switch will be based on the AGC levels. COLOR : The camera always stays in day/color mode.
  • Page 23 OSD Menu Function FUNCTION EXPO D&N FUNC MOTI PRIV EXIT SHARPNESS GAMMA 0.55 MIRROR FLIP EXIT JUMP SHARPNESS 0 ~ 10 - Sets the image sharpness. The higher the number, the sharper the image. GAMMA 0.45 ~ 0.75 - Select the desired gamma level. 0.55 is default setting. MIRROR / FLIP MIRROR : Re ects the camera horizontally.
  • Page 24 OSD Menu Motion The camera can detect movement and display an alarm on the screen. when movement is detected. MOTION DET WINDOW EXPO D&N FUNC MOTI PRIV EXIT MOTION WINDOW USE DET WINDOW WINDOW ZONE DET TONE DET H-POS DET V-POS MDRECT FILL DET H-SIZE SENSITIVITY...
  • Page 25 OSD Menu Privacy You can hide some parts of the screen for privacy masking. A total of 16 di erent privacy masking zones are available. The cameras support square privacy masks or advanced polygon masks. PRIVACY EXPO D&N FUNC MOTI PRIV EXIT PRIVACY...
  • Page 26 OSD Menu Setup COMMUNICA SETUP CAM ID BAUDRATE 9600 EXPO D&N FUNC MOTI PRIV EXIT COMMUNICA SET DONE CAM TITLE RETURN IMAGE RANGE FULL FREQ 60Hz LANGUAGE INITIAL EXIT JUMP COMMUNICATION Adjust the camera’s ID and Baudrate. Default Protocol is Pelco-D. - CAM ID : Provide an ID number for the camera (0 ~ 255).
  • Page 27 OSD Menu Setup SETUP EXPO D&N FUNC MOTI PRIV EXIT COMMUNICA CAM TITLE IMAGE RANGE FULL FREQ 60Hz LANGUAGE INITIAL EXIT JUMP FREQ When the camera’s image appears to have ickering issues, change the frequency value to adjust the image. LANGUAGE Select from the following: English (Default), Chinese, Chinese (S), Japanese, and Koran.
  • Page 28 OSD Menu EXIT EXIT EXPO D&N FUNC MOTI PRIV EXIT SAVE&EXIT EXIT SAVE & EXIT Exit the OSD menu after saving the recent changes. EXIT Exit the OSD menu without saving any changes.

  • Page 29: Troubleshooting

    Troubleshooting Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the power supply and make sure the camera has the proper voltage and current. Check UTP/COAX switch inside the camera’s housing and con rm the switch’s position matches the signal connection type.

  • Page 30: Speci Cations

    Speci cations VIDEO Image Sensor 1/3” CMOS Sensors Active Pixels 1944(H) x 1092(V) Scanning System Progressive scan Freguency 60Hz / 50Hz Signal Technology 2.0 Megapixel Universal Synchronization Internal Resolution 1920x1080 (1080p30fps) F1.4 (30IRE): 0.03 Lux (Color) Minimum Scene Illumination F1.4 (30IRE): 0 Lux (B&W) S/N Ratio 55dB Video Output...
  • Page 31 Speci cations OPERATIONAL (CONT.) Starlight OFF, X2 - X32 Wide Dynamic Range (WDR) LOW / MIDDLE / HIGH Digital Noise Reduction OFF / LOW / MIDDLE / HIGH White Balance AUTO / AUTO-EX / PRESET / MANUAL Day and Night AUTO / COLOR / BW / EXTERN Auto Gain Control 0 ~ 10...

  • Page 32: Limits & Exclusions

    This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...

  • Page 33: Warranty Information

    Warranty Information Digital Watchdog (referred to as “the Warranter”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warranter will repair or replace the unit with a new or refurbished product at its option at no charge.
  • Page 34 Notes...
  • Page 35 Notes...
  • Page 36 East Coast Headquarters Office: 5436 W Crenshaw St, Tampa, FL 33634 West Coast Headquarters Office: 16220 Bloomfield Ave., Cerritos, CA 90703 PH: 866-446-35951 FAX: 813-888-9262 www.Digital-Watchdog.com Technical Support: USA & Canada 1+ (866) 446-3595 International 1+ (813) 888-9555 French Canadian 1+ (514) 360-1309 Support Hours: Monday-Friday 9:00am to 8:00pm EST...

This manual is also suitable for:

Star-light dwc-d4283wtir
