Digital Watchdog DWC-D4583WTIR Quick Start Manual

Quick Start Guide
DWC-D4583WTIR
Torx Wrench
WHAT'S IN THE BOX
Quick
DC plug
1 Set setup
cable
guide
Sunshield cover &
Torx Wrench DC Plug Cable Test Video Cable
Template Sheet
Screws and
Test video
anchors – 1 Set
cable
2pcs
Torx Wrench DC Plug Cable Test Video Cable
Torx Wrench DC Plug Cable
Screw & Moisture absorber &
Template Sheet Manual
Absorber Guide
Mounting
1 Set
template
Template Sheet Manual
Template Sheet Manual
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in
the 'Search by Product' search bar. Results for
applicable part numbers will populate automatically
based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for
initial set-up. It is recommended that the user read the entire instruction
manual for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday

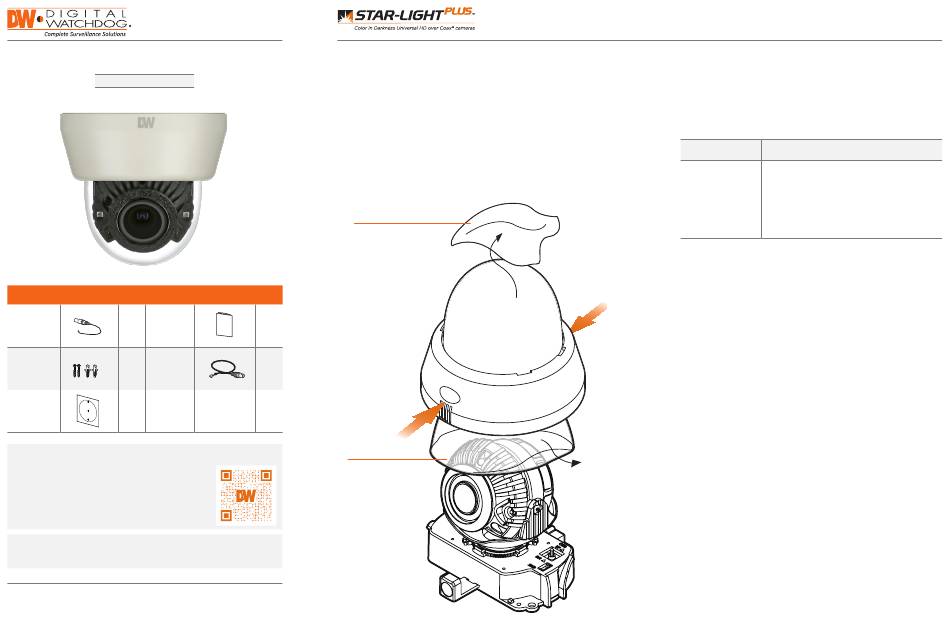

STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must withstand five times the weight of
your camera.
2. Do not let the cables get caught in improper places or the electric
line cover can be damaged. This may cause a short or fire.
3. Detach the camera's dome cover by pressing on the two small
buttons located at each side of the cover dome.
4. Remove the dome protection film before placing the dome back
on the camera base.
Protection sticker
Sunshield cover &
DC Plug Cable
Test Video Cable
1 Set
Screw & Moisture absorber &
Manual
Absorber Guide
1 Set
Sunshield cover &
Sunshield cover &
Test Video Cable
Screw & Moisture absorber &
Absorber Guide
Screw & Moisture absorber &
Protection film
Absorber Guide
digital-watchdog.com
Quick Start Guide
STEP 2 – CABLING THE CAMERA TO
EXTERNAL DEVICES
Pass the wires through the mount bracket and make all
necessary connections. Connect the BNC cable and power
cables to the camera.
Power
Power Consumption
Requirements
DC12V (LED off): 4.62W (385mA)
DC12V/AC24V DC12V (LED on): 7.13W (595mA)
dual voltage AC24V (LED off): 3.96W (280mA)
AC24V (LED on): 6.5W (410mA)
