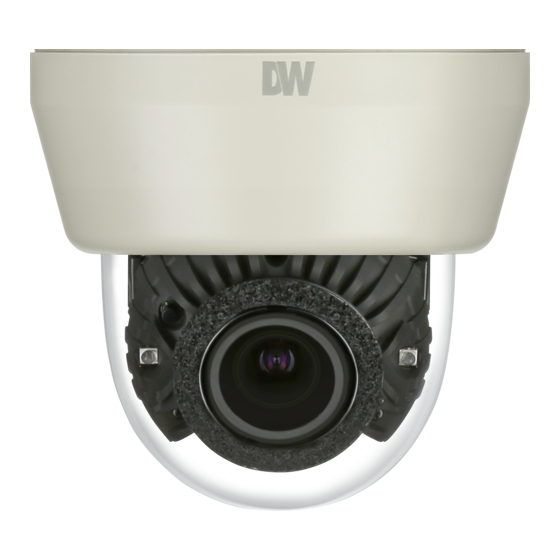

Digital Watchdog DWC-D4283WTIR Quick Start Manual

Quick Start Guide
DW® Universal HD over Coax®
Snapit™ indoor dome cameras
DWC-D4283WD DWC-D4283WTIR
WHAT'S IN THE BOX
Screws
and plastic Mounting
1 Set
Screw &
anchors- template
Torx Wrench
2pcs Plastic Anchor-2pcs Mount Bolt & Nut
Screw &
Torx Wrench
Plastic Anchor-2pcs
Test video Quick set up
1
cable guide
Template Sheet
Manual Test Video Cable
for installing by Bolt & Nut
Manual Test Video Cable
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in
the 'Search by Product' search bar. Results for
applicable part numbers will populate automatically
based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick set up guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday

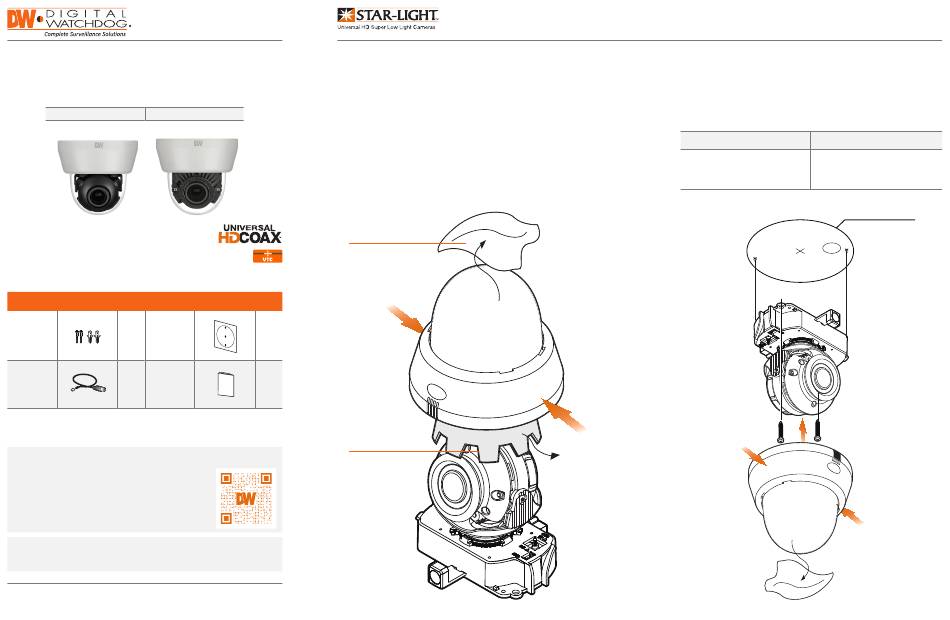

STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must withstand five times the weight of your
camera.
2. Pay attention to the cables. They can easily become caught and
damaged. Any damage may cause a short or fire.
3. Detach the camera's dome cover by pressing on both sides of the
dome cover.
4. Use the mounting template to mark and drill the necessary holes in
the mounting surface.
Protective sheet
Screw &
Mount Bolt & Nut Torx Wrench
Plastic Anchor-2pcs
1
Screw &
Torx Wrench
Plastic Anchor-2pcs
Template Sheet
Manual Test Video Cable
for installing by Bolt & Nut
1
Manual Test Video Cable
Protective pad
digital-watchdog.com
Quick Start Guide
STEP 2 – CABLING THE CAMERA TO
EXTERNAL DEVICES
Pass the wires through the mount bracket and make all necessary
connections. Connect the BNC cable and power cables to the camera.
Power Requirements Power Consumption
DC12V (LED off): 3.0W
DC12V (LED on): 5.2W
DC12V / AC24V dual-voltage
AC24V (LED off): 2.3W
AC24V (LED on): 4.6W
Mounting template
