Page 2: Dear Customer

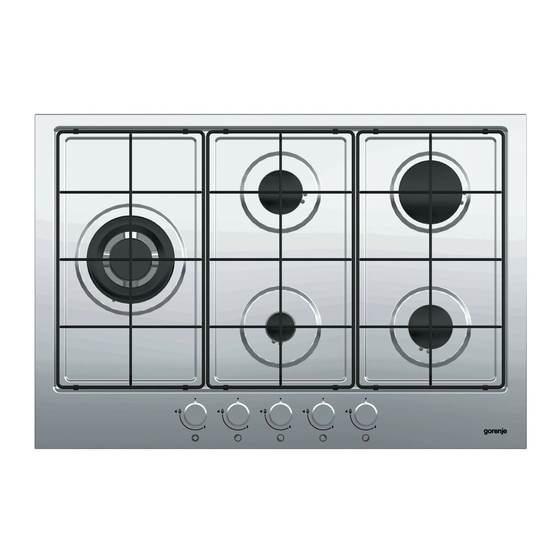

Dear customer! This electric integrated gas cooker is manufactured for household use. Our appliances are packed in the environmentally friendly materials which may be recycled, deposited or destroyed without any hazard to the environment. Such packaging materials are also labeled accordingly. Once the life cycle your appliance is over, make sure not to pollute the environment, and deliver it to the authorized collectors of old household appliances. -
Page 3: Important Warnings
TECHNICAL INSTRUCTIONS AND INSTALLATION Important warnings • Installation of the appliance (installation class:3) into a kitchen worktop and its connection to the power mains and the gas supply may only be performed by an adequately qualified technician. • When the appliance is in use, additional heat and moisture are emitted into the room. When the appliance is used for a prolonged period of time at a high performance level, intensive ventilation or use of kitchen hood may is required in the room where the appliance is installed. -
Page 4: Installation
INSTALLATION • Installation of the appliance into a kitchen worktop and its connection to the power mains may only be performed by an adequately qualified technician. • Veneer or other fi nish of the piece of kitchen furniture into which the hob is to be built in should be treated with heat resistant glue (100°C);... -
Page 5: Connecting The Appliance To The Power Mains
Installing the foam Before inserting the appliance into the opening in the kitchen worktop, the supplied foam gasket must be attached to the lower side of the glass ceramic (glass) cooking hob (see gasket figure above). Do not install the appliance without the foam gasket! The gasket should be attached to the appliance in the following way: - Remove the protective film from the gasket. - Page 6 • The current conducting and isolated parts must be protected from any possibility of direct contact. WARNING! • Before any intervention, disconnect the appliance from the power mains. Connect the appliance in compliance with the electric connections diagram supplied; make sure the relevant network voltage is observed! The ground wire should be connected to the clip indicated by the earthing symbol.
-
Page 7: Adjustment Elements
• When connecting, the knee R1/2 should be held firmly to prevent it from rotating. • For sealing of the connection joints, use a non-metal approved gaskets and approved sealants. • The gaskets should only be used once. The thickness of the flat non-metal gaskets should not be deformed more than by 25 percent. -
Page 8: Technical Information
Instructions for liquid gas (LPG: G30, G31) Tighten the screw on the side of the tap, rod clockwise completely. Warning: these tasks may only be carried out by a qualified technician, authorized by the gas distributing company or authorized service center! TECHNICAL INFORMATION (TAB.1) 426164 - 426162... - Page 9 Important warnings • The gas burners are fitted a candle as flame failure device. If the burner flame is extinguished accidentally or unintentionally (e.g. when some liquid boils over or when there is draught in the room): gas supply is automatically cut off, thus preventing the gas from being emitted into the room.
-
Page 10: Ignition And Operation Of The Burners
INSTRUCTIONS FOR USE AND MAINTENANCE OPERATION 1. Gas cooking zone front left 2. Gas cooking zone rear left 3. Gas cooking zone rear right 4. Gas cooking zone front right 5. Gas cooking zone rear central 6. Gas cooking zone front central 7. - Page 11 for 5 to 6 seconds after the flame has ignited. After this time, which gives the safety device enough time to cut-in, the flame will be on permanently. • The flame can then be set between the maximum and minimum level. Any setting between 0 and the large flame is not recommended, as the flame is not stable in this interval and may be extinguished.
-
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE Do not use a steam cleaning appliance to clean this appliance. The steam could reach the electrical components and cause a short circuit. The appliance should be cleaned regularly, preferably after each use, after cooling down. To avoid water marks and limescale deposits, use a soft cloth to dry surfaces that have been cleaned with water. -
Page 13: Ceramic Glass Surface
Ceramic glass surface After each use of the glass-ceramic hob, wait for it to cool down and clean it; otherwise, even the smallest food residue will be burnt onto the hot surface next time you use the appliance. For regular cleaning and maintenance of the glass-ceramic surface, use special conditioning agents which form a protective layer on the surface, shielding it from dirt. - Page 14 SPECIAL WARNINGS AND FAULT REPORTING Important During the warranty period, only a service center authorized by the manufacturer may carry out any repairs. Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse or by disconnecting the power plug from the wall outlet.
