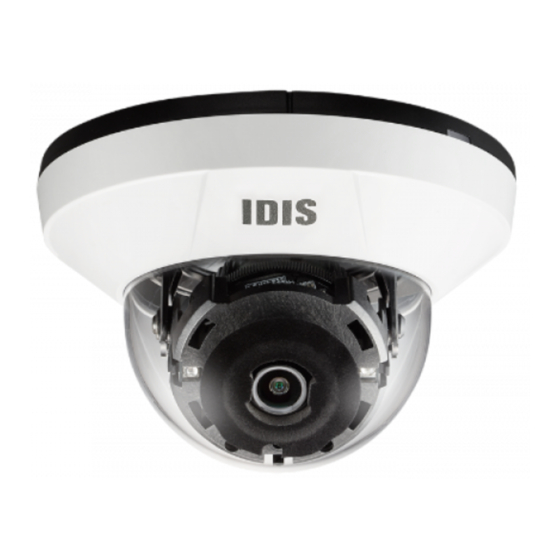

DC-D4212R
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DirectIP DC-D Series and is the answer not in the manual?

Questions and answers

Related Manuals for Idis DirectIP DC-D Series

Summary of Contents for Idis DirectIP DC-D Series

  • Page 1 DC-D Series Installation Manual DC-D4212R Powered by...
  • Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 – Introduction ......... 6 Product Features .

  • Page 6: Part 1 - Introduction

    • Easy network access via UPnP (Universal Plug and You can use the IDIS Discovery program to change Play) function and embedded mDNS (Multicast DNS) network camera settings or the IDIS Solution Suite...

  • Page 7: Accessories

    Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Guide Pattern Screws (2 ea.) Quick Guide...

  • Page 8: Overview

    For more information on network connection setup, refer to the IDIS Discovery operation manual. The following table describes the network cable specifications. <The network cable specifications>...

  • Page 9: Factory Reset

    It's also possible to do a factory reset by pressing and releasing the reset button while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system. For more information on factory reset, refer to the IDIS Discovery operation manual.

  • Page 10: Installation

    Part 1 – Introduction Installation Closing the Dome Cover Attach the dome cover to the bottom cover. Turn the • Check the wall or ceiling to see if it needs to be dome cover clockwise to fasten the dome cover. reinforced.

  • Page 11: Dimension

    Part 1 – Introduction Dimension 130mm...

  • Page 12: Part 2 - Camera Connection

    Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Power Network Camera Monitor Out Power Network Remote Monitoring DirectIP™ NVR makes it easy to use cameras without extra network configurations.

  • Page 13: With Non Directip™ Nvr-Based Layout

    Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact.

  • Page 14: Part 3- Appendix

    ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below.

  • Page 15: Specifications

    Part 3- Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.9” CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length f=4.0mm Aperture F2.15 Angular Field of View H: 83° / V: 43° / D: 100.4° Min.
  • Page 16 Part 3- Appendix General Operating Temperature -10˚C ~ 50˚C (14˚F ~ 122˚F) Boot Up Temperature 0˚C ~ 50˚C (32˚F ~ 122˚F) Operating Humidity 0% ~ 90% Power Source PoE (IEEE 802.3af Class 2) Power Consumption Max. 4W Approval FCC, CE External Dimensions (Ø...
  • Page 18 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
