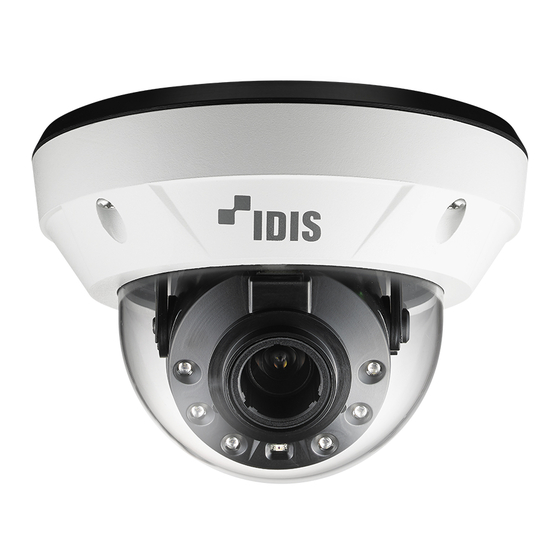

Idis DC-D4233WRX Operation Manual
  1. Manuals
  2. Brands
  3. Idis Manuals
  4. Security Camera
  5. DC-D4233WRX
  6. Operation manual

Idis DC-D4233WRX Operation Manual

Hide thumbs Also See for DC-D4233WRX:
Table of Contents

Advertisement

Quick Links

Download this manual
Network
Camera
Operation Manual
DC-D4223RX / DC-D4223WRX / DC-D4233RX /
DC-D4233WRX / DC-D4233HRX
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-D4233WRX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Idis DC-D4233WRX

Summary of Contents for Idis DC-D4233WRX

  • Page 1 Network Camera Operation Manual DC-D4223RX / DC-D4223WRX / DC-D4233RX / DC-D4233WRX / DC-D4233HRX Powered by...
  • Page 2 Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 - Remote Setup ........7 Remote Setup .
  • Page 6 Part 2 - IDIS Web ........

  • Page 7: Part 1 - Remote Setup

    Configure basic network camera settings and all other system settings. Screen images may vary depending on the model. Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. Click on the Setup icon.

  • Page 8: Quick Setup

    Part 1 - Remote Setup Quick Setup From the Remote Setup screen, select the menu on the left to display the current settings. Select an option under the menu to change the corresponding settings. Once you have changed the settings, click Save to apply the settings. Quick Setup allows you to set up System, Network, Video, Audio, and other basic settings needed for camera use.

  • Page 9: System

    There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the IDIS Discovery program. - ONVIF Event Type •...

  • Page 10: Date/Time

    Part 1 - Remote Setup • Setup Date/Time - Load Default Setup: Restores all settings other than Date/Time to their factory defaults. Select Include Network Setup to load default network settings as well. For more information on network setup, refer to the Network on page 12. - Import Setup: Open a setup file and apply its settings to the camera.

  • Page 11: User/Group

    Part 1 - Remote Setup User/Group • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups.

  • Page 12: Network

    Part 1 - Remote Setup Network IP Address IPv4 Change the network settings, enable FEN and security features, and control network bandwidth use. • Type: Select the type of network you are using. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup.

  • Page 13: Fen

    Part 1 - Remote Setup IPv6 Select Use FEN to enable the FEN feature. • Check Use to activate IPv6. • Type: Select the type of network you are using. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup.

  • Page 14: Port/Qos

    By enabling IDIS Web and RTSP ports, you setup to ensure normal operation. will be able to use the IDIS Web program or a media player that supports RTSP (Real-Time Streaming • You will not be able to save FEN settings unless you click on the OK button next to the FEN name Protocol) service to connect to the camera.
  • Page 15 Part 1 - Remote Setup • Use UPnP: If the camera is connected to the network • Port numbers of the remote program must be via an IP router (or NAT), select this option to connect updated whenever the camera's port numbers are to the camera without setting up port forwarding.

  • Page 16: Bandwidth Control

    Part 1 - Remote Setup Bandwidth Control Security Regulates the camera’s network bandwidth use based on network traffic fluctuations. • IP Filtering: Select this option to enable IP Filtering. IP Filtering allows camera access from certain IP addresses and blocks access from others. Select Network Bandwidth limit and then specify - Add: Add new IP addresses to Allow List or Deny the maximum bandwidth.

  • Page 17: Ieee 802.1X

    Part 1 - Remote Setup Video IEEE 802.1X Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication. Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options. • Certificates: Upload a certificate or a private key. You may be prompted to enter a password for the private key.

  • Page 18: Camera

    Part 1 - Remote Setup Camera White Balance Configure White Balance settings. Image Sensor Configure Image Sensor settings. • Preset: Use preconfigured white balance settings. - Auto: Allow the system to adjust the white balance automatically. The system will assess the •...
  • Page 19 Part 1 - Remote Setup • WDR: Disables or enables the WDR(Wide Dynamic Exposure Range). When the very dark and very bright areas Configure Exposure settings. exist simultaneously on the screen, WDR allows you to recognize the both areas. • Backlight Compensation: Enable/disable the Backlight Compensation feature.
  • Page 20 Part 1 - Remote Setup • IR Cut Filter: IR Cut Filter blocks out the infrared Day & Night spectrum. You can ensure clear images at all times by Configure Day & Night settings. blocking out the infrared spectrum in high-lighting conditions and allowing the infrared spectrum to pass through in low-lighting conditions.

  • Page 21: Streaming

    Part 1 - Remote Setup Streaming Miscellaneous Configure Miscellaneous settings. • Primary/Secondary/Tertiary/Quaternary: Multistreaming is supported. Enable/disable IR Strength: Set the brightness of the IR LED. The higher streaming use. The stream you set first has priority. the value is set, the brighter it is. •...

  • Page 22: Webcasting

    Part 1 - Remote Setup • Default Record Stream: Choose a stream to use Webcasting for recording. This setting, however, may not apply if a recording stream has been designated from the Use the webcasting service to view live images from the remote program or the SD memory card recording camera on a web site.

  • Page 23: Mat

    Part 1 - Remote Setup Privacy Masking Select the MAT option to use the MAT (Motion Adaptive Select Privacy Masking to set up a privacy mask over Transmission) feature during video transmission and a specific area. The section on which a privacy mask is recording.

  • Page 24: Audio

    Part 1 - Remote Setup Audio In/Out Configure audio in/out settings. • Audio Codec: Select an audio codec. • Input: Select an option and then an audio input source (microphone Built-in microphone models only or line-in). Adjust the volume. Noise Filter reduces the environmental noise and enhances the voice.

  • Page 25: Event Action

    Part 1 - Remote Setup Event Action Alarm out Designate event detection alert actions. Select Alarm Out to enable alarm out. • Dwell Time: Designate the alarm out duration. When an event occurs, alarm out will be generated for the specified duration.

  • Page 26: Email

    Select Email to send out emails. Select Remote Callback to send callback messages to a remote system. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 27: Audio Alarm

    Part 1 - Remote Setup Audio Alarm FTP Upload Select Audio Alarm to generate audio. Select FTP Upload to upload .jpg image of the event detected to an FTP server. • List: Displays a list of audio files to playback. Click Add or Remove to add/remove audio files.
  • Page 28 Part 1 - Remote Setup the new image. Event type is automatically added to the file names. • When specifying the Upload Path or Base File Name, you cannot use special characters such as \, /, #, *, |, :, ", <, >, and ?. •...

  • Page 29: Record

    Part 1 - Remote Setup Record Schedule Select the Schedule tab and set up a recording schedule. Select Record to record video on the SD memory card. First, make sure that an SD memory card (Class 6 or • Mode: Choose a recording mode. higher) has been properly inserted.

  • Page 30: Event

    - Event: Designate the stream to use for recording in event mode (post-event). • Recordings saved on the SD memory card can be searched and played back from the IDIS Solution Suite Compact program or remotely from the remote program. For more information, refer to each program's operation manual.

  • Page 31: Alarm In

    • Motion Zone: Click Setup and define the motion zone using blocks. • Not supported from the IDIS Web program. (Draw)/ (Erase): Enable/disable motion • The camera must be registered to the remote detection blocks.

  • Page 32: Trip-Zone

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 33: Audio Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 34: Tampering

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 35: System Event

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.
  • Page 36 Action must be configured correctly in order to send out emails and messages. • Remote Callback is not supported on IDIS Web. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 37: Part 2 - Idis Web

    – Tools → Internet Options → Advanced → Security → Use TLS 1.0 (select) • If connecting by entering an IP address and a port number, you can connect by entering just the IP address if IDIS Web connection port number has been set to 80 (443 when entering https).
  • Page 38 Run as administrator option. Otherwise, certain IDIS Web functions might not be available. • When running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown.

  • Page 39: Web Live Mode

    2013-05-29 16:25:22 2013-05-29 16:25:22 Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 40 Part 2 - IDIS Web Used to adjust live video quality. Click to control the alarm out device connected to the camera. Event status window at the bottom of the screen displays a list of events detected at remote locales.

  • Page 41: Web Search Mode

    113.49 NC-D320-IP & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays time information of the video recording from the remote locale. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 42 Part 2 - IDIS Web Click to configure rendering mode and OSD settings. Select rendering mode to adjust the video output rate or select which OSD elements to display on the screen from the OSD list. TYPE 1 Click to switch over to Web Live mode.
  • Page 43 Part 2 - IDIS Web Right-click on the screen to display the pop-up menu. Click to enable or disable each function. • Fisheye Dewarping: This function is not supported. • Change Camera Title: Used to change the camera's name. Renaming the camera in Web Search mode does not affect the camera's name on the remote system.

  • Page 44: Part 3 - Appendix

    Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video Audio System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Audio In/Out Event Action Alarm Out Email Remote Callback...

  • Page 45: Index

    Part 3 - Appendix Index Quality Bitrate Control Remote Port Resolution RTSP Port Camera Name Compression Date/Time DSCP Time Sync FEN Name Use FEN FEN Server Use HTTPS Frame Rate User/Group Use UPnP IDIS Web port IPFiltering Network Bandwidth Limit ONVIF Protocol V2.2...
  • Page 47 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
