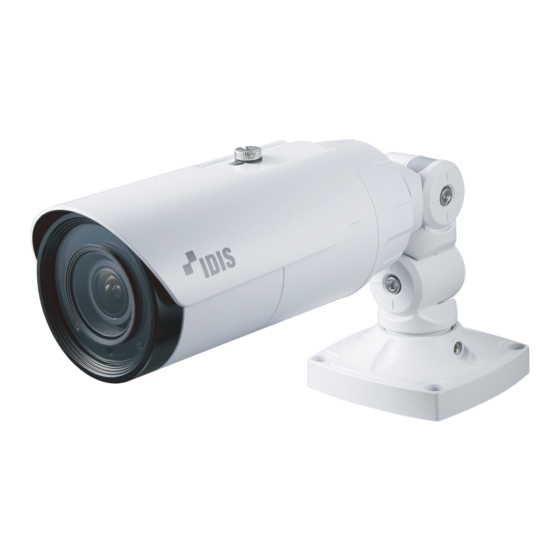

Idis DC-T3533HRX Operation Manual
  1. Manuals
  2. Brands
  3. Idis Manuals
  4. Security Camera
  5. DC-T3533HRX
  6. Operation manual

Idis DC-T3533HRX Operation Manual

Hide thumbs Also See for DC-T3533HRX:
Table of Contents

Advertisement

Quick Links

Download this manual
Network
Camera
Operation Manual
DC-T3533HRX
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-T3533HRX and is the answer not in the manual?

Questions and answers

Related Manuals for Idis DC-T3533HRX

Summary of Contents for Idis DC-T3533HRX

  • Page 1 Network Camera Operation Manual DC-T3533HRX Powered by...
  • Page 2 Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 - Remote Setup ........7 Remote Setup .
  • Page 6 Part 2 - IDIS Web ........

  • Page 7: Part 1 - Remote Setup

    Configure basic network camera settings and all other system settings. Screen images may vary depending on the model. Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. Click on the Setup icon.

  • Page 8: Quick Setup

    Part 1 - Remote Setup Quick Setup From the Remote Setup screen, select the menu on the left to display the current settings. Select an option under the menu to change the corresponding settings. Once you have changed the settings, click Save to apply the settings. Quick Setup allows you to set up System, Network, Video, Audio, and other basic settings needed for camera use.

  • Page 9: General

    There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the IDIS Discovery program. - ONVIF Event Type •...

  • Page 10: Date/Time

    Part 1 - Remote Setup Date/Time User/Group • User/Group: Change remote camera control • Date/Time: Change the camera’s date/time settings permission settings for users and user groups. and display formats and configure the time zone and daylight saving time settings. Click Save to apply the - Add Group: Add a new user group.

  • Page 11: Network

    Part 1 - Remote Setup Network • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups.

  • Page 12: Ip Address

    Part 1 - Remote Setup IP Address IPv6 IPv4 • Check Use to activate IPv6. • Type: Select the type of network you are using. If this option has been changed, click Save to apply the • Type: Select the type of network you are using. If this current settings, and then restart Remote Setup.

  • Page 13: Fen

    Web browser. (If you can not access special characters, you can access by changing the encoding.) The FEN Server operated by IDIS is a service to its clients and may go offline without notice for server update purposes or due to an unexpected failure.

  • Page 14: Port/Qos

    Web / HTTP ports are enabled by default and cannot be disabled. By enabling IDIS Web and RTSP ports, you will be able to use the IDIS Web program or a media player that supports RTSP (Real-Time Streaming Click Apply to use the recommended port numbers.

  • Page 15: Bandwidth Control

    Part 1 - Remote Setup Bandwidth Control • Port numbers of the remote program must be updated whenever the camera's port numbers are changed. Regulates the camera’s network bandwidth use based • ONVIF protocol may not function if using HTTPS. on network traffic fluctuations.

  • Page 16: Security

    Part 1 - Remote Setup Security IEEE 802.1X Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication. • IP Filtering: Select this option to enable IP Filtering. IP Filtering allows camera access from certain IP addresses and blocks access from others. •...

  • Page 17: Video

    Part 1 - Remote Setup Video Camera Image Sensor Configure Image Sensor settings. Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options. • Mode: Choose resolution. 16:9 for 4M and 4:3 for 5M. When changing sensor mode, some settings will be reset to default.
  • Page 18 Part 1 - Remote Setup - 3DNR: Set whether to enable or disable 3DNR White Balance (3D Noise Reduction). When 3DNR is enabled, the Configure White Balance settings. level of background noise is reduced in low light conditions. It does not cause overall image blurring which might occur when using noise filter, but it may cause afterimage (lag).
  • Page 19 Part 1 - Remote Setup • WDR: Disables or enables the WDR(Wide Dynamic Exposure Range). When the very dark and very bright areas Configure Exposure settings. exist simultaneously on the screen, WDR allows you to recognize the both areas. • Backlight Compensation: Enable/disable the Backlight Compensation feature.
  • Page 20 Part 1 - Remote Setup • IR Cut Filter: IR Cut Filter blocks out the infrared Day & Night spectrum. You can ensure clear images at all times by Configure Day & Night settings. blocking out the infrared spectrum in high-lighting conditions and allowing the infrared spectrum to pass through in low-lighting conditions.

  • Page 21: Streaming

    Part 1 - Remote Setup Streaming Miscellaneous Configure Miscellaneous settings. • Primary/Secondary/Tertiary/Quaternary: • Video Output: Select a video output signal format. Multistreaming is supported. Enable/disable • IR Strength: Set the brightness of the IR LED. The streaming use. The stream you set first has priority. higher the value is set, the brighter it is.
  • Page 22 Part 1 - Remote Setup • Frame Rate: Choose a frame rate setting for video - Current Resolution: Displays the resolution of the streaming. The fame rate of the current stream cannot designated streaming area. be higher than the fame rate of the higher stream if those stream resolutions are same.

  • Page 23: Webcasting

    Part 1 - Remote Setup Webcasting Select the MAT option to use the MAT (Motion Adaptive Use the webcasting service to view live images from the camera on a web site. Transmission) feature during video transmission and recording. • HTML Code: Copy and paste the html code shown on •...

  • Page 24: Privacy Masking

    Part 1 - Remote Setup Audio Privacy Masking Select Privacy Masking to set up a privacy mask over Configure audio in/out settings. a specific area. The section on which a privacy mask is applied will appear as black when monitoring video. •...

  • Page 25: In/Out

    Part 1 - Remote Setup Event Action In/Out Designate event detection alert actions. • Audio Codec: Select an audio codec. • Input: Select an option and then adjust the volume. Noise Filter reduces the environmental noise and enhances the voice. If you turn on the noise filter, the sound may be distorted somewhat.

  • Page 26: Alarm Out

    Part 1 - Remote Setup Alarm out Email Select Email to send out emails. Select Alarm Out to enable alarm out. • SMTP Server/Port: Enter the SMTP server’s IP address • Dwell Time: Designate the alarm out duration. When (or domain name) and port number you received an event occurs, alarm out will be generated for the from the network administrator.

  • Page 27: Remote Callback

    Select Remote Callback to send callback messages to a Select Audio Alarm to generate audio. remote system. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 28: Ftp Upload

    Part 1 - Remote Setup FTP Upload Select FTP Upload to upload .jpg image of the event detected to an FTP server. - FTP Server: Enter the FTP server’s IP address (or domain name). - Upload Path: Designate the file upload path. - Port: Enter the FTP server’s port number.

  • Page 29: Record

    Part 1 - Remote Setup Record • When specifying the Upload Path or Base File Name, you cannot use special characters such as \, /, #, *, |, :, ", <, >, and ?. Select Record to record video on the SD memory card. •...
  • Page 30 • Recordings saved on the SD memory card can be cause the recording to exceed the 100MB limit searched and played back from the IDIS Solution and stop before the end of the specified recording Suite Compact program or remotely from the duration.

  • Page 31: Event

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 32: Motion Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 33: Trip-Zone

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 34: Audio Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 35: Tampering

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 36: System Event

    Action must be configured correctly in order to send out emails and messages. Select System Event and configure system event • Remote Callback is not supported on IDIS Web. settings. With system event enabled, system status, • The camera must be registered to the remote alarm in status, and disk status will be checked system in order to use the Remote Callback feature.

  • Page 37: Part 2 - Idis Web

    – Tools → Internet Options → Advanced → Security → Use TLS 1.0 (select) • If connecting by entering an IP address and a port number, you can connect by entering just the IP address if IDIS Web connection port number has been set to 80 (443 when entering https).
  • Page 38 Run as administrator option. Otherwise, certain IDIS Web functions might not be available. • When running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown.

  • Page 39: Web Live Mode

    2013-05-29 16:25:22 2013-05-29 16:25:22 Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 40 Part 2 - IDIS Web Used to control zoom and focus at a remote location. • One push button - Press this button to find the optimum focus automatically. - It is recommended to get an approximate focus using the manual focusing button before pressing the one push button for fast and efficient focusing.
  • Page 41 Part 2 - IDIS Web This function is not supported. &...

  • Page 42: Web Search Mode

    113.49 NC-D320-IP & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays time information of the video recording from the remote locale. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 43 Part 2 - IDIS Web Click to configure rendering mode and OSD settings. Select rendering mode to adjust the video output rate or select which OSD elements to display on the screen from the OSD list. TYPE 1 Click to switch over to Web Live mode.
  • Page 44 Part 2 - IDIS Web Right-click on the screen to display the pop-up menu. Click to enable or disable each function. • Fisheye Dewarping: This function is not supported. • Change Camera Title: Used to change the camera's name. Renaming the camera in Web Search mode does not affect the camera's name on the remote system.

  • Page 45: Part 3 - Appendix

    Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video Audio System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Audio In/Out Event Action Alarm Out Email Remote Callback...

  • Page 46: Index

    Part 3 - Appendix Index Quality Bitrate Control Remote Port Resolution RTSP Port Camera Name Compression Date/Time DSCP Time Sync FEN Name Use FEN FEN Server Use HTTPS Frame Rate User/Group Use UPnP IDIS Web port IPFiltering Network Bandwidth Limit ONVIF Protocol V2.1...
  • Page 47 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
