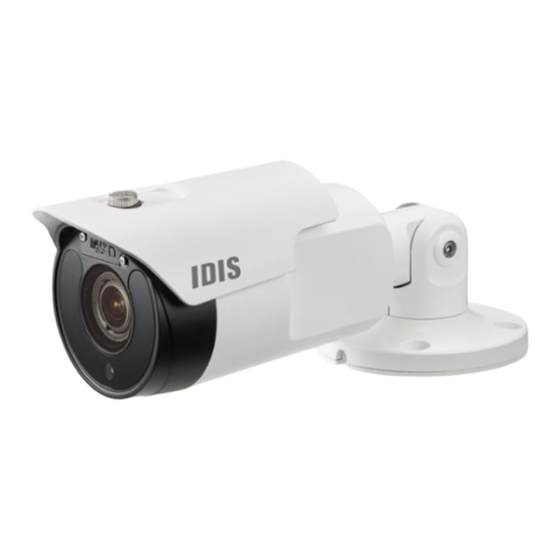

- Page 1 DC-T Series Installation Manual DC-T4233WRX / DC-T4233HRX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
Web) lets you remotely view live video using a web • Automatic web casting code (HTML) generation browser. In addition, you can use the IDIS Solution Suite • Up to 10 simultaneous remote monitoring Compact to manage network cameras and view/record connections video. - Page 7 • Quick and easy firmware upgrade over the network Remote monitoring and recording via multistreaming are available using the IDIS Solution Suite Compact • Redundant firmware and auto recovery features for program. For more information on using IDIS Solution improved system stability Suite Compact, refer to its operation manual.
-
Page 8: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Quick Guide Ferrite Core Camera Sun Shield Sun Shield Screw, O Ring Screws, Anchors (4 ea.) -
Page 9: Overview
Part 1 – Introduction Overview Product color and design may vary depending on the model. Body • Lens Motorized focus and zoom lens is installed. • IR LED A sensor in the bottom middle monitors lighting levels and activates the IR LED during low-lighting conditions. -
Page 10: Cable
For more information on network connection setup, refer to the IDIS Discovery operation manual. • Audio In Connect an audio source to this port. (line in) •... - Page 11 Part 1 – Introduction • Alarm in • Check your local laws and regulations on making Connect an alarm-in device to this port. Connect a video or audio recordings. The user will be held mechanical or electrical switch to the IN and GND liable for any violation of the law.
-
Page 12: Factory Reset
It's also possible to do a factory reset by pressing and releasing Insert a SD memory card into the SD memory card the reset switch while the camera is turned on or using the IDIS slot with the 'micro SD' print facing upward. -
Page 13: Waterproof Cable Installation
Part 1 – Introduction Insert a round rubber ring (silicone rubber) into the RJ45 jack. Insert the network cable into the waterproof cap, rubber bushing, and waterproof cap body in order. Make sure that the cover is joined properly when screwing it;... -
Page 14: Installation
Part 1 – Introduction Screw Lock the waterproof cap into the waterproof cap body. Connect external devices, network and power adapter. Not pulling the cable back may cause water to seep in and damage the product. Apply power. Installation • Check the wall or ceiling to see if it needs to be Dimensions reinforced. -
Page 15: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Power Audio Out Sensor In Alarm Out Network Camera Monitor Out... -
Page 16: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 17: Part 3 - Appendix
Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 18: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8" CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Motorized Vari-focal Focal Length f=2.8 - 12.0mm Aperture F1.4 - 2.8 Iris Control DC Iris Angular Field of View... - Page 19 Part 3 - Appendix ** An SLC (Single Level Cell) or MLC (Multi Level Cell) card by SanDisk or Transcend is recommended to ensure stable recording performance. ** An SD memory card is a consumable product with a finite service life. Prolonged use will damage the card's memory sectors and result in data loss or memory card failure.
