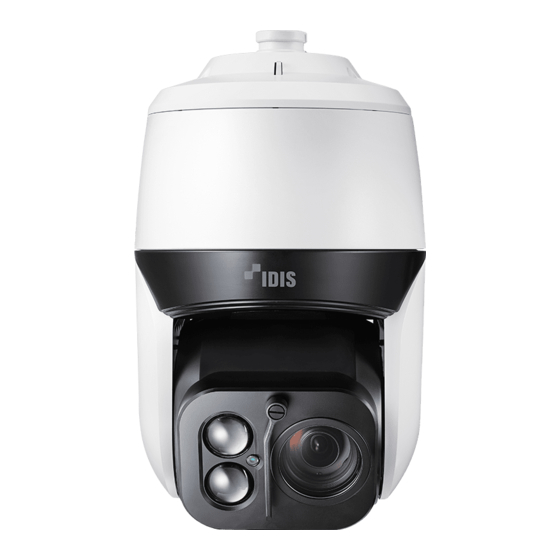

- Page 1 DC-S Series Installation Manual DC-S3883HRX / DC-S3583HRX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 © 2018 IDIS Co., Ltd. IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
M-JPEG still image compression algorithms ethernet. • Supports 4-stage video compression rate and You can use the IDIS Discovery program to change multiple compression resolutions network camera settings or the IDIS Solution Suite • Two-way audio communication support for remote... - Page 7 • Slow shutter support for improved low-lighting video Remote monitoring and recording via multistreaming capture performance are available using the IDIS Solution Suite Compact • Day & Night feature (built-in IR cut filter changer) program. For more information on using IDIS Solution •...
-
Page 8: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Mount Adapter, Screws Allen Wrench Ferrite Core Waterproofing accessory (Bushing, Glue) -
Page 9: Overview
Part 1 – Introduction Overview • Body Assembly Standards For tightening the body. • Lens Product color and design may vary depending on the AF Zoom Lens is mounted. model. • IR LED A sensor in the middle monitors lighting levels and activates the IR LED during low-lighting conditions. -
Page 10: Pendant (Inner View)
Part 1 – Introduction Pendant (Inner View) • Alarm In/Out – ALI:Connect an alarm-in device to this port. (Mechanism: Choose between an NC (Normally Closed) type or an NO (Normally Open) type) → Connect a mechanical or electrical switch to the alarm in port and the GND (ground) connector. -
Page 11: Factory Reset
EARTH Cable It's also possible to do a factory reset by pressing and releasing the reset switch while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system. For more information on factory reset, refer to the IDIS Discovery operation manual. -
Page 12: Installation
Part 1 – Introduction Installation Installation Installation of this product does not require the use of • Check the wall or ceiling to see if it needs to be special tools. reinforced. The camera may fall off if the wall or For more information on other devices comprising the ceiling is not strong enough to support its weight. - Page 13 Part 1 – Introduction Assemble the mount adapter to the camera body Assemble the pendant and the body by matching and secure it by using the mount adapter screws (3 the installation direction guides. Rotate the camera points). body clockwise to position the reference mark in the upper section and the lower section as shown in the figure.
-
Page 14: Dimensions
Part 1 – Introduction Dimensions Ø242mm (9.52”) Ø43.5mm (1.71”) -
Page 15: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out 24 VAC Sensor In Power Monitor Out... -
Page 16: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 17: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 18: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/1.7" CMOS Max. Resolution 3072x1728 (5M) 3840x2160 (8M) Scanning Mode Progressive Scan Lens type AF Zoom Lens Focal Length f=4.3mm ~ 129.0mm Aperture F1.6 ~ 5.0 Iris Control DC Auto Iris Angular Field of View... - Page 19 Part 3 - Appendix Network Video Compression H.265, H.264(MP), M-JPEG Bitrate Control VBR, CBR Max. Frame Rate 30fps : 3072 x 1728 (WDR) (5M) 30fps : 3840 x 2160 (WDR) (8M) Audio Compression G.726, G.711 Supported Resolution 5M: 3072 x 1728, 1920 x 1080, 1280 x 720, 640 x 360 8M: 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 Multi-Video Streaming Quadruple...
- Page 20 Part 3 - Appendix External Dimensions (Ø x H) 9.52” x 15.79” (242mm x 401mm) Weight (Main Unit) 16.31 lbs. (7.4kg) V1.1...
- Page 21 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
