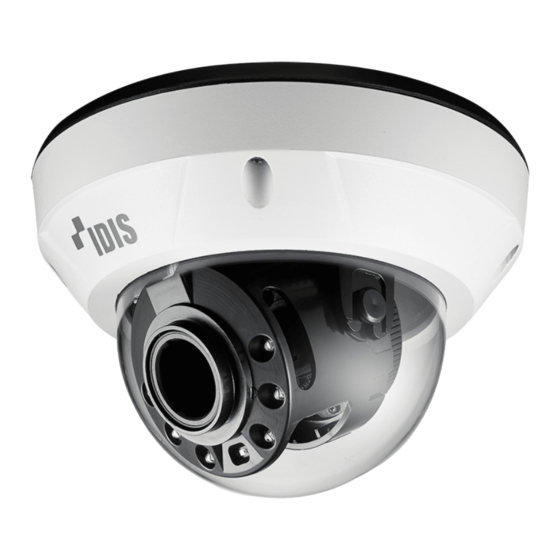

- Page 1 Network Camera Quick Guide DC-D4236X / DC-D4236RX / DC-D4236WRX / DC-D4236HRX Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. -
Page 4: Dome Cover
Allen Wrench ( DC-D4236WRX, DC-D4236HRX only) Guide Pattern Please download software (IDIS Discovery, IDIS Center, IDIS Solution Suite Compact) and product manual from this link : -IDIS Website (www.idisglobal.com) - Search IDIS Discovery, IDIS Center, IDIS Solution Suite Compact. Overview DC-D4236WRX, DC-D4236HRX • Product color and design may vary depending... - Page 5 Body DC-D4236RX DC-D4236X Network Camera...
-
Page 6: Camera Installation
Camera Installation DC-D4236WRX, DC-D4236HRX Removing the Dome Cover DC-D4236X, DC-D4236RX Turn the dome cover counterclockwise. Remove the dome cover. IR LED Network Port Dome Cover Assembly Lens Part Alarm I/O, Audio I/O, Factory Reset Button Video Out (CVBS) Built-in Microphone... -
Page 7: Inserting A Sd Memory Card
‘micro SD’ print facing upward. DC-D4236X, DC-D4236RX Remove the dome cover. DC-D4236WRX, DC-D4236HRX Push the SD memory card until it disengages from the slot, and then pull it out. micro SD Logo is a trademark of SD-3C, LLC. - Page 8 Use the provided guide pattern to check the distance between the screws. the power adapter. Adjust the angle. For more information, refer to the Angle Adjustment. DC-D4236WRX, DC-D4236HRX Push the network cable through the cable rubber, using the protective connector provided. Cable rubber Protect...
-
Page 9: Closing The Dome Cover
DC-D4236X, DC-D4236RX Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. DC-D4236WRX, DC-D4236HRX Connect external devices, the network cable, and the power adapter. Fasten the screws for the dome cover clockwise using Adjust the angle. -
Page 10: Specifications
Vandal Resistance Out-door Ready IP67, Heater Operating DC-D4236X, -10°C ~ +50°C (14°F ~ +122°F) Temperature DC-D4236RX DC-D4236WRX -20°C ~ +55°C (-4°F ~ +131°F) DC-D4236HRX -40°C ~ +55°C (-40°F ~ +131°F) Boot Up DC-D4236X, 0°C ~ +50˚C (32°F ~ +122˚F) Temperature... - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
