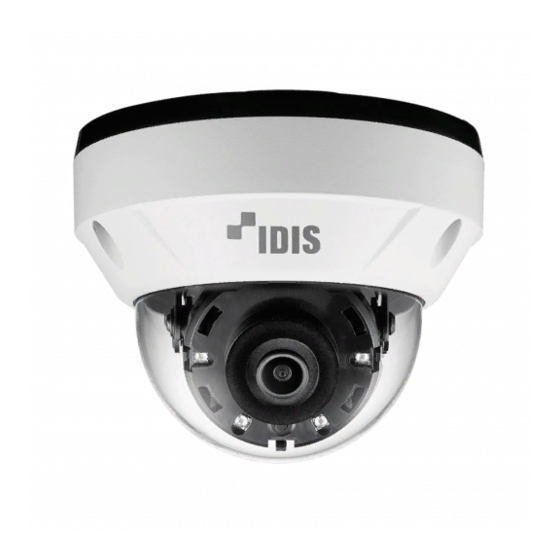

- Page 1 DC-D Series Installation Manual DC-D4213RX DC-D4213WRX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Easy network access via UPnP (Universal Plug and ethernet. Play) function and embedded mDNS (Multicast DNS) You can use the IDIS Discovery program to change protocol network camera settings or the IDIS Solution Suite • Wide dynamic range compensation (True WDR) for... -
Page 7: Accessories
Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. DC-D4213RX DC-D4213WRX Guide Pattern Network Camera Quick Guide Screws (2 ea.) Protect Connector (1 ea.) Allen Wrench Desiccant... -
Page 8: Overview
Part 1 – Introduction Overview Body Product color and design may vary depending on the DC-D4213RX model. Dome Cover DC-D4213RX DC-D4213WRX... - Page 9 For more information on network connection setup, refer to the IDIS Discovery operation manual. The following table describes the network cable specifications. <The network cable specifications>...
- Page 10 Part 1 – Introduction • Cable Access Hole I/O Connector For routing cables. • Audio - O (Out): Connect an amplifier to this port (line out). This device does not feature a built-in audio amplifier unit and therefore requires the user to purchase a separate speaker system with a built-in amplifier.
-
Page 11: Factory Reset
It's also possible to do a factory reset by pressing and releasing the reset button while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system. For more information on factory reset, refer to the IDIS Discovery Remove the dome cover. -
Page 12: Inserting A Sd Memory Card
Part 1 – Introduction Inserting a SD Memory Card DC-D4213WRX Insert a SD memory card into the SD memory card slot Loosen the screws counterclockwise using the Allen with the 'microSD' printed facing upward. wrench provided with the product. Push the SD memory card until it disengages from the slot, and then pull it out. - Page 13 Part 1 – Introduction Assemble the cable rubber to the bottom cover. Use the screws, anchors provided with the camera to secure the bottom cover on a wall or a ceiling. Use the provided guide pattern to check the distance between the screw holes if necessary.
-
Page 14: Closing The Dome Cover
Part 1 – Introduction Adjust the angle. For more information, refer to the Closing the Dome Cover Angle Adjustment. Attach the enclosed desiccant to the designated DC-D4213RX space inside the dome cover using double-sided tape as shown below. Attach the dome cover to the bottom cover. Turn the Desiccant dome cover clockwise to fasten the dome cover. -
Page 15: Angle Adjustment
Part 1 – Introduction Angle Adjustment Dimension The lens can be rotated along three axes. DC-D4213RX Ø 110mm Lens Rotation Horizontal Rotation Vertical Rotation • Lens Rotation Used to adjust the lens' rotation angle. Turn the rotator in clockwise or counterclockwise direction. •... - Page 16 Part 1 – Introduction DC-D4213WRX Ø 120mm...
-
Page 17: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Power Network Camera Power Monitor Out Network Remote Monitoring DirectIP™ NVR makes it easy to use cameras without extra network configurations. -
Page 18: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 19: Part 3- Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 20: Specifications
Part 3- Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8” CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length f=4.0mm/f=2.8mm Aperture F2.15/F2.0 Iris Control Fixed Iris Angular Field of View H: 87°... - Page 21 Part 3- Appendix Network Video Compression H.265(MP), H.264(MP), M-JPEG Bitrate Control H.264 - VBR/CBR H.265 Max. Frame Rate 30fps : 1920 x 1080 (WDR) Supported Resolution 1920x1080, 1280x720, 704x480, 640x360, 352x240 Multi-Video Streaming Quadruple Ethernet RJ45(10/100BASE-T) Audio In/Out Line-in 1ea / Line-out 1ea / Internal Mic 1ea DC-D4213RX model only Alarm In 1 TTL, NC/NO Programmable, 4.3V(NC) or 0.3V(NO) threshold, 5V DC...
- Page 22 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
