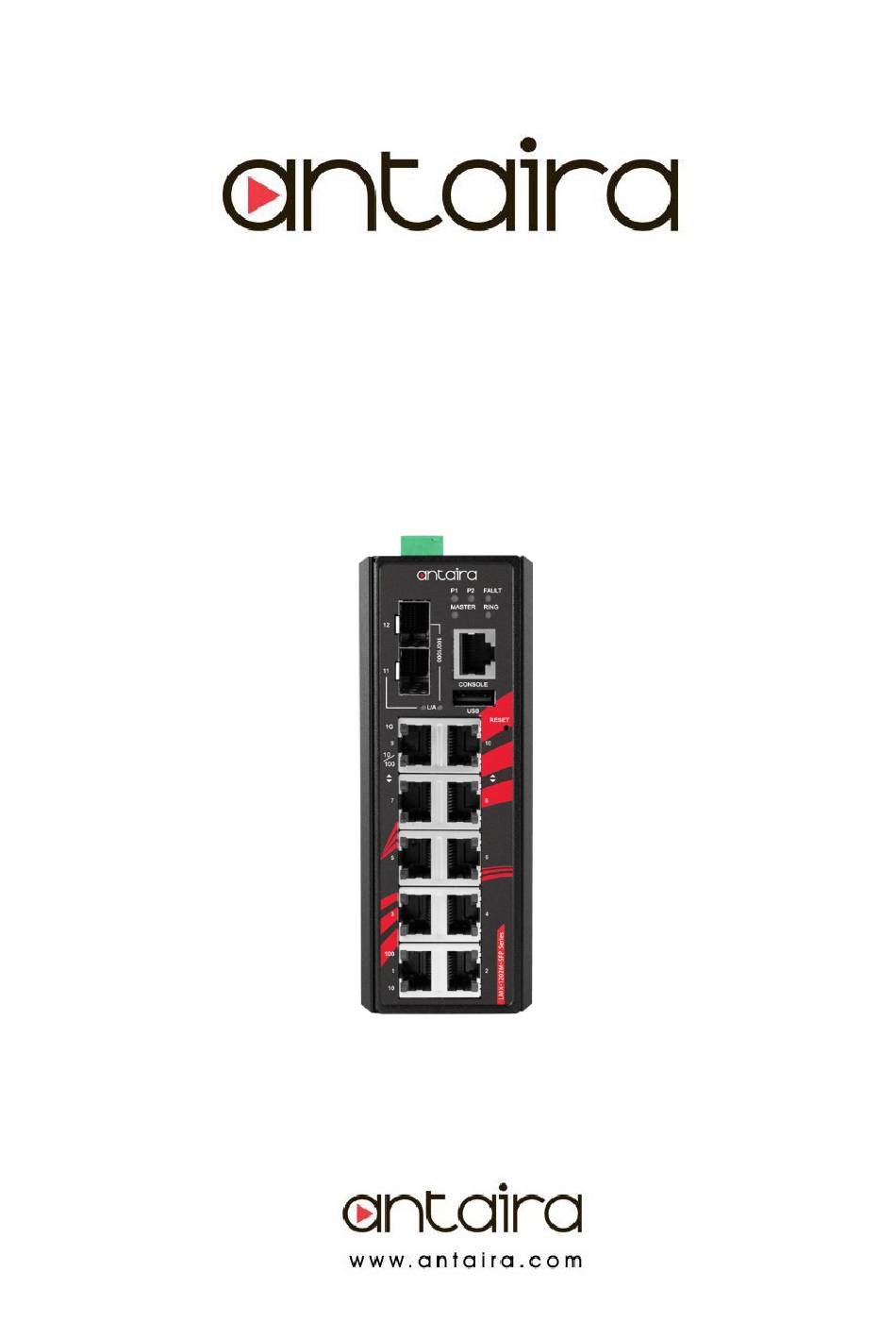

- Page 1 Antaira Industrial Ethernet Switches LMX-1002C-SFPeries User Manual V1.0 LMX-1202M-SFP Series (LMX-1202M-SFP / LMX-1202M-SFP-T) 12-Port Industrial Gigabit Managed Ethernet Switch, with 8*10/100Tx, 2*10/100/1000Tx, and 2*100/1000 SFP Slots Hardware Manual Version 1.1...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMX-1202M-SFP Series Hardware Manual V1.1 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-1202M-SFP Series Hardware Manual V1.1 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions... -
Page 5: Introduction
SCADA systems or control networks. The LMX-1202M-SFP series is compact, IP30 rated, and DIN-rail or wall mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMX-1202M-SFP Series Hardware Manual V1.1 IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP MODBUS TCP for SCADA system integration ... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMX-1202M-SFP Series Hardware Manual V1.1 1.4 Package Contents 1– LMX-1202M-SFP series: 12-port industrial gigabit managed Ethernet switch, with 8*10/100Tx, 2*10/100/1000Tx and 2*100/1000 SFP Slots 1-Quick Installation Guide 2-W all mounting brackets and screws ... -
Page 8: Hardware Description
LMX-1202M-SFP Series Hardware Manual V1.1 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-1202M-SFP series: 12- port industrial gigabit managed Ethernet switches with 8*10/100Tx, 2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots. (W x D x H) is 54mm x 99mm x 142mm Figure2.1... -
Page 9: Front Panel

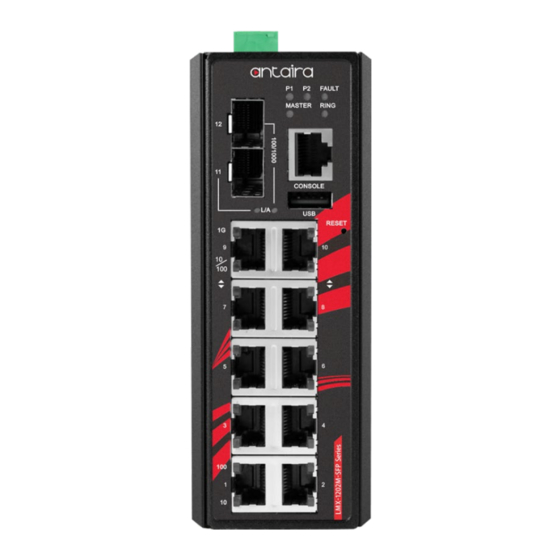

Figure2.2 The Front Panel of LMX-1202M-SFP Series 2.3 Top View Figure 2.3, below, shows the top panel of the LMX-1202M-SFP series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs 12~48VDC. Figure 2.3- Top Panel View of LMX-1202M-SFP Series... -
Page 10: Led Indicators
Flashing Networking is active (Lower LED) Not connected to network Table 2.1 - LED Indicators for LMX-1202M-SFP Series Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". -
Page 11: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMX-1202M-SFP Series Hardware Manual V1.1 2.5 Reset Button There is a Reset button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-1202M-SFP Series Hardware Manual V1.1 The following figures show the cabling schematics for straight-through and crossover. Figure 2.4 Figure 2.5 Straight-Through Cable Schematic Crossover Cable Schematic 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than... - Page 13 Antaira Technologies - Industrial Ethernet Switches LMX-1202M-SFP Series Hardware Manual V1.1 Second, insert the fiber cable of the LC connector into the transceiver as shown in Figure 2.9. Figure 2.9 - LC Connector to the Transceiver To remove the LC connector from the transceiver, please follow the steps shown below: 1.
-
Page 14: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMX-1202M-SFP Series Hardware Manual V1.1 2.7 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.12. -
Page 15: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMX-1202M-SFP Series Hardware Manual V1.1 The wire gauge for the terminal block should range between 12 ~ 24AWG • • If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm. - Page 16 Antaira Technologies - Industrial Ethernet Switches LMX-1202M-SFP Series Hardware Manual V1.1 Rail on to the track as shown below in Figure 3.2. 4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3. 5. Check if the bracket is mounted tightly on the rail.
-
Page 17: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMX-1202M-SFP Series Hardware Manual V1.1 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 18: Hardware Installation
LMX-1202M-SFP Series Hardware Manual V1.1 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMX-1202M-SFP series: 12-port industrial gigabit managed Ethernet switches with 8*10/100Tx, 2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots for fiber Caution: This device is intended for use indoor and at altitudes up to 2000 meters. -
Page 19: Maintenance And Service
• Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMX-1202M-SFP series: 12-port industrial gigabit managed Ethernet switches with 8*10/100Tx, 2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots for fiber. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 20 -40°C ~ 85°C (-40°F ~ 185°F) Ambient Relative Humidity 5 to 95%, (non-condensing) FCC Class A IEC6100-4-2/3/4/5/6/8; IEC6100-6-2; IEC6100-6-4 IEC60068-2-32 (Free fall) Regulatory IEC60068-2-27 (Shock) Stability Testing Approvals IEC60068-2-6 (Vibration) Safety UL 61010-1, 61010-2-201 Certifications NEMA TS2 Table 5.1 - LMX-1202M-SFP Series Technical Specifications...
- Page 21 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
