- Page 1 LMX-2012G-SFP Series 20-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, with 8*10/100/1000Tx Ports and 12*100/1000 SFP Ports Hardware Manual Version 1.0 (June 2021)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Product Software Features 1.3 Package Contents 1.4 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Top View Panel... -
Page 6: Overview

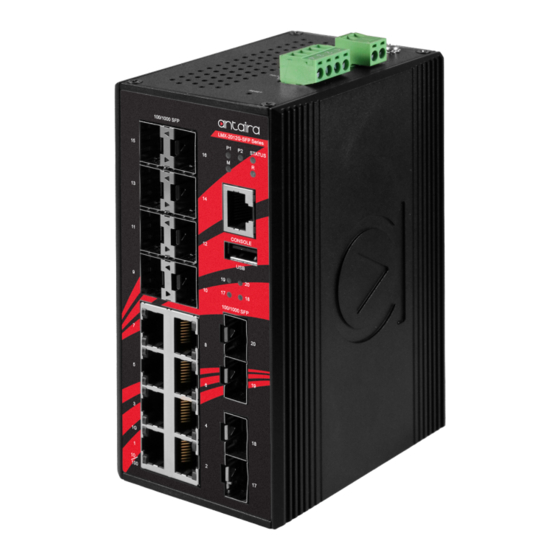

LMX-2012G-SFP Series - Hardware Manual - v1.0 1 Overview Antaira Technologies’ LMX-2012G-SFP series is a 20-port industrial gigabit managed Ethernet switch embedded with 8*10/100/1000Tx Ethernet ports and 12*100/1000 dual rate SFP slots for fiber connections. The LMX-2012G-SFP is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP MODBUS TCP for SCADA system integration Port Configuration Status, statistics, mirroring, rate limiting, event syslog Event Handling Event notification: Cold/Warm Start, Power Failure, Authentication, SNMP trap and Fault Alarm Relay Output... - Page 8 Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 Figure 1.1 - Caution Label Figure 1.1 - Étiquette de mise en garde Figure 1.2 - Hot Surface Warning Label Figure 1.2 - Étiquette d'avertissement de surface chaude...
-
Page 9: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 71.5mm x 99mm x 142mm... -
Page 10: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 Top View Panel Figure 2.3, below, shows the top panel of the product series:... -
Page 11: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 12: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 Flashing Networking is active Not connected to network Table 2.1 - LED Indicators Note: “P1” is the abbreviation for “Power 1”, “P2” is for “Power 2”, “LNK” is for “Link”, and “ACT” is for “Activity”. -
Page 13: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 Table 2.2 - 10/100Base-T(X) RJ45 Pin Assignments Crossover Cable Straight Through Cable Pin Number / Signal Pin Number / Signal Pin Number / Signal Pin Number / Signal... -
Page 14: Wiring The Relay Contact
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.6. -
Page 15: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 Figure 2.8 - Wiring the Relay Contact Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG. If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm. -
Page 16: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. -
Page 17: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. - Page 18 Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 Figure 3.4 - Remove DIN-Rail bracket from the Switch Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions...
-
Page 19: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 20: Maintenance And Service
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot ●... -
Page 21: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping L2 Switching v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave... - Page 22 Antaira Technologies - Industrial Ethernet Switches LMX-2012G-SFP Series - Hardware Manual - v1.0 Port Interface 8*10/100/1000BaseTx Ethernet Port Auto-negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection SFP Port 12*100/1000 SFP slots RS232 Serial Console 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8, N, 1...
- Page 23 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
