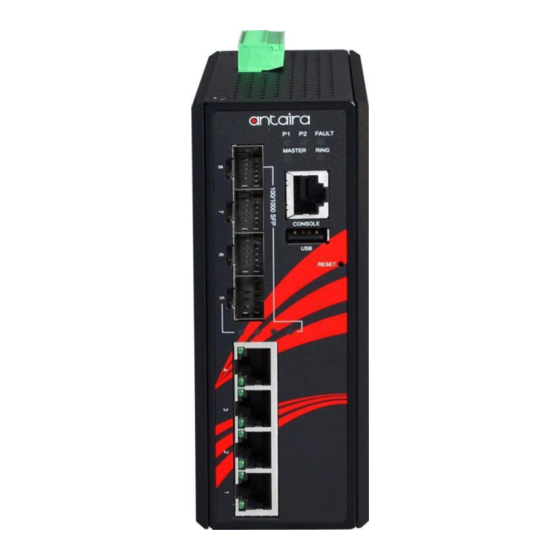

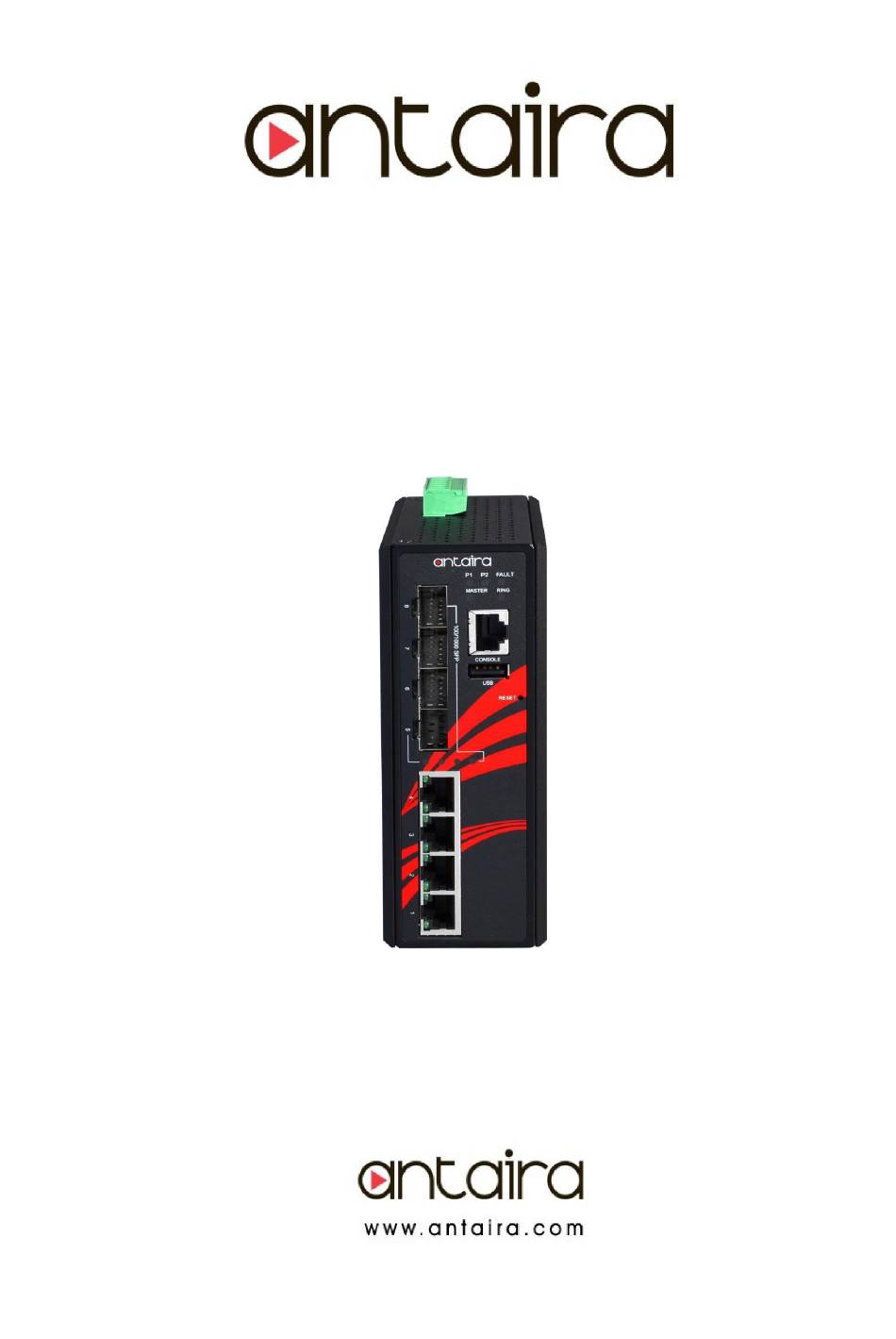

- Page 1 Antaira Technologies - Industrial Ethernet Switches LMX-0804G-SFP Series User Manual V1.0 LMX-0804G-SFP Series 8-Port Industrial Gigabit Managed Ethernet Switches with 4*10/100/1000Tx, 4*100/1000 SFP Slots Version 1.1 Hardware Manual...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Gigabit Managed Ethernet Switches Hardware Manual Version 1.1 (January 2018) This manual supports the following models: LMX-0804G-SFP LMX-0804G-SFP-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-0804G-SFP Series Hardware Manual V1.1 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions... -
Page 5: Introduction
RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMX-0804G-SFP series is compact, IP30 rated, and DIN-rail or wall mountable. There are also two different models for varying operating temperatures, for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMX-0804G-SFP Series Hardware Manual V1.1 IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMX-0804G-SFP Series Hardware Manual V1.1 1.4 Package Contents 1– LMX-0804G-SFP series: 8-port industrial gigabit managed Ethernet switch, with 4*10/100/1000Tx ports and 4*100/1000 SFP slots 1-Product CD DIN Rail Kit & 2-W all mounting brackets and screws ... -
Page 8: Hardware Description
LMX-0804G-SFP Series Hardware Manual V1.1 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-0804G-SFP series: 8-port industrial gigabit managed Ethernet switches with 4*10/100/1000Tx RJ45 Ethernet ports and 4*100/1000 SFP fiber slots. (W x D x H) is 54mm x 99mm x 142mm Figure 2.1... -
Page 9: Front Panel
Figure 2.2 The Front Panel of LMX-0804G-SFP Series 2.3 Top View Figure 2.3, below, shows the top panel of the LMX-0804G-SFP series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs 12~48VDC. Figure 2.3... -
Page 10: Led Indicators
SFP LNK/ACT Amber Not connected to network 100Mbps Table 2.1 - LED Indicators for LMX-0804G-SFP Series Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". 2.5 Reset Button... -
Page 11: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LMX-0804G-SFP Series Hardware Manual V1.1 Seconds Function Save running configuration to USB Reboot the switch 7 or more Restore factory default Table 2.2 – Reset Button Functions 2.6 Ethernet Ports RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-0804G-SFP Series Hardware Manual V1.1 The following figures show the cabling schematics for straight-through and crossover. Figure 2.4 Figure 2.5 Straight-Through Cable Schematic Crossover Cable Schematic 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than... -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMX-0804G-SFP Series Hardware Manual V1.1 2.9 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the... -
Page 14: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-0804G-SFP Series Hardware Manual V1.1 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN- Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install... -
Page 15: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMX-0804G-SFP Series Hardware Manual V1.1 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 16: Hardware Installation
4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMX-0804G-SFP series: 8-port industrial gigabit managed Ethernet switches with 4*10/100/1000Tx ports and 4*100/1000 SFP fiber slots. Caution: This device is intended for use indoor and at altitudes up to 2000 meters. -
Page 17: Technical Specifications
Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMX-0804G-SFP series: 8-port industrial gigabit managed Ethernet switches with 4*10/100/1000Tx ports and 4*100/1000 SFP fiber slots. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 18 -40°C ~ 85°C (-40°F ~ 185°F) Ambient Relative Humidity 5 to 95%, (non-condensing) FCC Class A IEC6100-4-2/3/4/5/6/8; IEC6100-6-2; IEC6100-6-4 Regulatory IEC60068-2-32 (Free fall) Approvals Stability Testing IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) Safety UL 61010-1, UL 61010-2-201 Table 5.1 - LMX-0804G-SFP Series Technical Specifications...
- Page 19 Support (Antaira US Headquarter) + 844- 268-2472 (Antaira Europe Office) + 48- 22-862-88-81 (Antaira Asia Office) + 886- 2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
