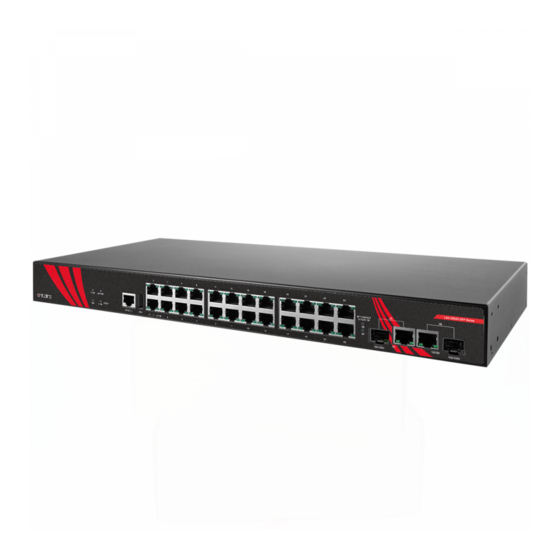

Summary of Contents for ANTAIRA LMX-2602G-SFP Series
- Page 1 LMX-2602G-SFP Series 26-Port Industrial Gigabit Managed Ethernet Switch, with 24*10/100/1000Tx RJ45 Ports and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots) Hardware Manual Version 1.0 (April 2020)
- Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMX-2602G-SFP Series Hardware Manual V1.0 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-2602G-SFP Series Hardware Manual V1.0 Table of Contents 1. Introduction ..............1 1.1 Product Overview ..............1 1.2 Product Software Features ..........1 1.3 Product Hardware Features ..........2 1.4 Package Contents ..............2 1.5 Safety Precaution .............. -
Page 5: Introduction
LMX-2602G-SFP series is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user- friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms... -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMX-2602G-SFP Series Hardware Manual V1.0 ➢ IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 1024 group ➢ Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH ◼... -
Page 7: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LMX-2602G-SFP Series Hardware Manual V1.0 1.5 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within this user manual. -
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMX-2602G-SFP Series Hardware Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-2602G-SFP series: (W x D x H) is 440mm x 200mm x 44mm Figure 2.1 LMX-2602G-SFP Series Physical Dimensions... -
Page 9: Front Panel
Figure2.2 The Front Panel of LMX-2602G-SFP Series 2.3 Rear Panel Figure 2.3, below, shows the top panel of the LMX-2602G-SFP series switch that is equipped with one 8-connector redundant power inputs (90~264VAC) and one 2-pin terminal block for replay output... -
Page 10: Led Indicators
Connected to network, 1000Mbps Flashing Networking is active LAN Port 1-24 Not connected to network Green Connected to network, 10/100Mbps 10/100 Flashing Networking is active LAN Port 1-24 Not connected to network Table 2.1 Table 2.1 - LED Indicators for LMX-2602G-SFP Series... -
Page 11: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMX-2602G-SFP Series Hardware Manual V1.0 2.5 Reset Button There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-2602G-SFP Series Hardware Manual V1.0 The following figures shows the 10,100 and 1000 Ethernet RJ-45 pin outs 2.7 Cabling ◼ Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded twisted pair (STP) cable. -
Page 13: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMX-2602G-SFP Series Hardware Manual V1.0 Second, insert the fiber cable of the LC connector into the transceiver as shown below in Figure 2.7. Figure 2.7 - LC Connector to the Transceiver To remove the LC connector from the transceiver, please follow the steps shown below: Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.8. -
Page 14: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMX-2602G-SFP Series Hardware Manual V1.0 Note • Only use copper conductors, 100°C, tighten to 5 lbs. • The wire gauge for the terminal block should range between 18~20 AWG • To eliminate power fault alarm, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 when using only one power supply 2.9 Grounding Note... -
Page 15: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-2602G-SFP Series Hardware Manual V1.0 3. Mounting Installation 3.1 Rack Mounting The switch comes with a rack-mounted kit which can be mounted in an EIA standard size, 19-inch rack. It can be placed in a wiring closet with other equipment. -
Page 16: Hardware Installation
LMX-2602G-SFP Series Hardware Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira Technologies’ LMX-2602G-SFP series: 26-Port Industrial Gigabit Managed Ethernet Switches with 24*10/100/1000Tx and 2* Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots). -
Page 17: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMX-2602G-SFP Series Hardware Manual V1.0 Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMX-2602G-SFP series: IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3z Gigabit Fiber IEEE 802.1d... - Page 18 RoHS Compliant Certifications FCC, CE Warranty 5 Years Table 5.1 - LMX-2602G-SFP Series Technical Specifications Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira:...
- Page 19 Antaira Technologies - Industrial Ethernet Switches LMX-2602G-SFP Series Hardware Manual V1.0 www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
