- Page 1 Antaira Industrial Ethernet Switches LMX-1002G-SFPeries User Manual V1.0 LMX-1002G-SFP Series (LMX-1002G-SFP / LMX-1002G-SFP-T) 10-Port Industrial Gigabit Managed Ethernet Switch, with 8*10/100/1000Tx and 2*100/1000 SFP Slots Hardware Manual Version 1.4 P/N: 92001002120001...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMX-1002G-SFP Series Hardware Manual V1.4 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 WARNING: EXPLOSION HAZARD – Do not disconnect while the circuit is live or unless the area is free of ignitable concentrations. This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com) or address (780 Challenger Street, Brea, CA...
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-1002G-SFP Series Hardware Manual V1.4 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions... -
Page 6: Introduction
RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMX-1002G-SFP series is a compact, IP30 rated, and DIN-rail or wall mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 7: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMX-1002G-SFP Series Hardware Manual V1.4 IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ... -
Page 8: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMX-1002G-SFP Series Hardware Manual V1.4 1.4 Package Contents 1– LMX-1002G-SFP series: 10-port industrial gigabit managed Ethernet switch, with 8*10/100/1000Tx and 2*100/1000 SFP slots 1-Product CD 2-W all mounting brackets and screws ... -
Page 9: Hardware Description
2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-1002G-SFP series: 10-port industrial gigabit managed Ethernet switches with 8*10/100/1000Tx and 2*100/1000 SFP slots. (W x D x H) is 54mm x 99mm x 142mm Figure2.1... -
Page 10: Front Panel

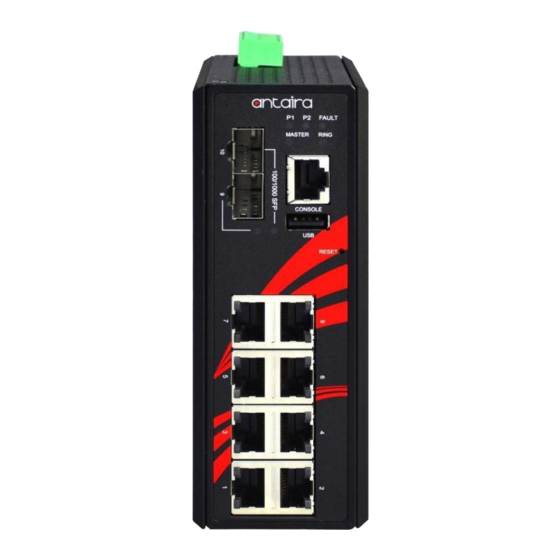

Figure 2.2 The Front Panel of LMX-1002G-SFP Series 2.3 Top View Figure 2.3, below, shows the top panel of the LMX-1002G-SFP series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs 12~48VDC. Figure2.3... -
Page 11: Led Indicators
SFP LNK/ACT Not connected to network 100Mbps Table 2.1 - LED Indicators for LMX-1002G-SFP Series Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". 2.5 Reset Button... -
Page 12: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LMX-1002G-SFP Series Hardware Manual V1.4 2.6 Ethernet Ports RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. -
Page 13: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-1002G-SFP Series Hardware Manual V1.4 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. - Page 14 Antaira Technologies - Industrial Ethernet Switches LMX-1002G-SFP Series Hardware Manual V1.4 To remove the LC connector from the transceiver, please follow the steps shown below: 1. Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.9.
-
Page 15: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMX-1002G-SFP Series Hardware Manual V1.4 2.8 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.11. -
Page 16: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMX-1002G-SFP Series Hardware Manual V1.4 The wire gauge for the terminal block should range between 12 ~ 24AWG If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm. -
Page 17: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-1002G-SFP Series Hardware Manual V1.4 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-... -
Page 18: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMX-1002G-SFP Series Hardware Manual V1.4 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 19: Hardware Installation
4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMX-1002G-SFP series: 10-port industrial gigabit managed Ethernet switches with 8*10/100/1000Tx and 2*100/1000 SFP slots for fiber. Caution: This device is intended for use indoor and at altitudes up to 2000 meters. -
Page 20: Technical Specifications
Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMX-1002G-SFP series: 10-port industrial gigabit managed Ethernet switches with 8*10/100/1000Tx and 2*100/1000 SFP slots for fiber. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 21 UL 61010-1, 61010-2-201, Safety ISA 12.12.01, ATEX NEMA TS2 Certifications Table 5.1 - LMX-1002G-SFP Series Technical Specifications Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com...
- Page 22 Antaira Technologies - Industrial Ethernet Switches LMX-1002G-SFP Series Hardware Manual V1.4 Any changes to this material will be announced on the Antaira website.
