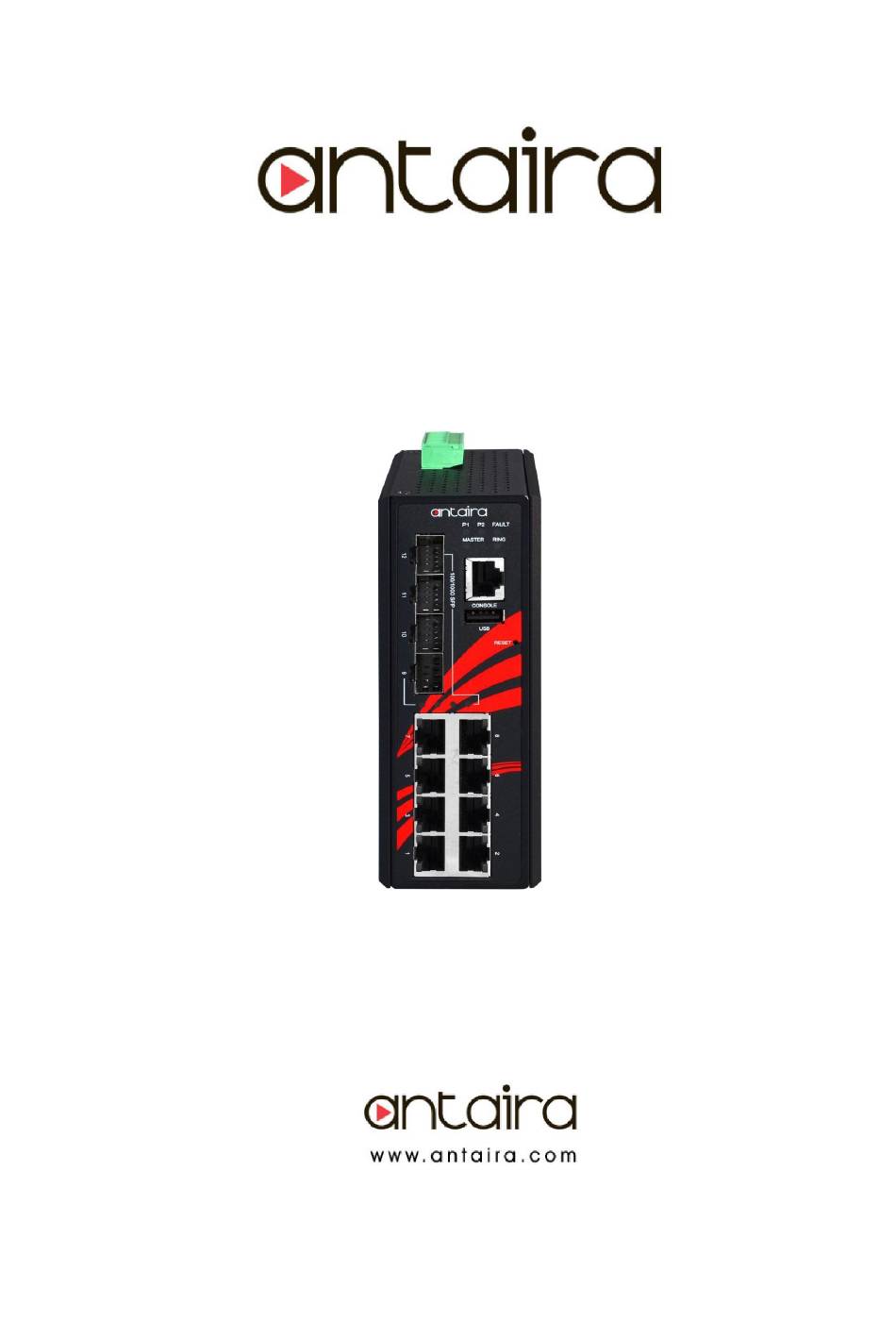

- Page 1 Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series User Manual V1.1 LMX-1204G-SFP Series 12-Port Industrial Gigabit Managed Ethernet Switch with 8*10/100/1000Tx and 4*100/1000 SFP Slots Version 1.2 Hardware Manual...
- Page 2 Technologies, LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Industrial Grade Gigabit Managed Ethernet Switches Hardware Manual Version 1.2 (February 2018) This manual supports the following models: • LMX-1204G-SFP • LMX-1204G-SFP-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.2 Table of Contents Introduction ............1 1.1 Product Overview ..............1 1.2 Product Software Features ............1 1.3 Product Hardware Features............2 1.4 Package Contents ..............3 1.5 Safety Precaution ..............3 Hardware Description ......... -
Page 5: Introduction
LMX-1204G-SFP Series Hardware Manual V1.2 1. Introduction All Antaira industrial managed switches come with a pre-installed “user-friendly” web console interface, which allows users to easily configure and manage the units, whether one is using a serial console and command line interface(CLI) commands like Telnet, SSH, HTTP (Web GUI) or simple network management protocols (SNMP). -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.2 IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.2 1.4 Package Contents 1– LMX-1204G-SFP series: 12-port industrial gigabit managed Ethernet switch, with 8*10/100/1000Tx ports and 4*100/1000 SFP slots for fiber connectivity 1-Product CD 2-Wall mounting brackets and screws ... -
Page 8: Hardware Description
LMX-1204G-SFP Series Hardware Manual V1.2 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-1204G-SFP series: 12-port industrial gigabit managed Ethernet switches with 8*10/100/1000Tx ports and 4*100/1000Fx SFP slots. (W x D x H) is 54mm x 99mm x 142mm Figure 2.1... -
Page 9: Front Panel
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.2 2.2 Front Panel The front panel of the LMX-1204G-SFP series industrial gigabit managed Ethernet switch is shown below in Figure 2.2. 6-Pin Removal Terminal Block (Power Input) Grounding Screw... -
Page 10: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.2 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 11: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.2 Seconds Function Save running configuration to USB Reboot the switch 7 or more Restore factory default Table 2.2 – Reset Button Functions 2.6 Ethernet Ports RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.2 Figure 2.4 Figure 2.5 Straight-Through Cable Schematic Crossover Cable Schematic 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.2 2.9 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and forma normally open circuit. -
Page 14: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.2 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-... -
Page 15: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.2 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 16: Hardware Installation
4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMX-1204G-SFP series: 12-port industrial gigabit managed Ethernet switches with 8*10/100/1000Tx ports and 4*100/1000 dual rate SFP fiber slots. Caution: This device is intended for use indoor and at altitudes up to 2000 meters. -
Page 17: Technical Specifications
Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMX-1204G-SFP series: 12-port industrial gigabit managed Ethernet switch with 8*10/100/1000Tx and 4*100/1000 SFP slots. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 18 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website...
