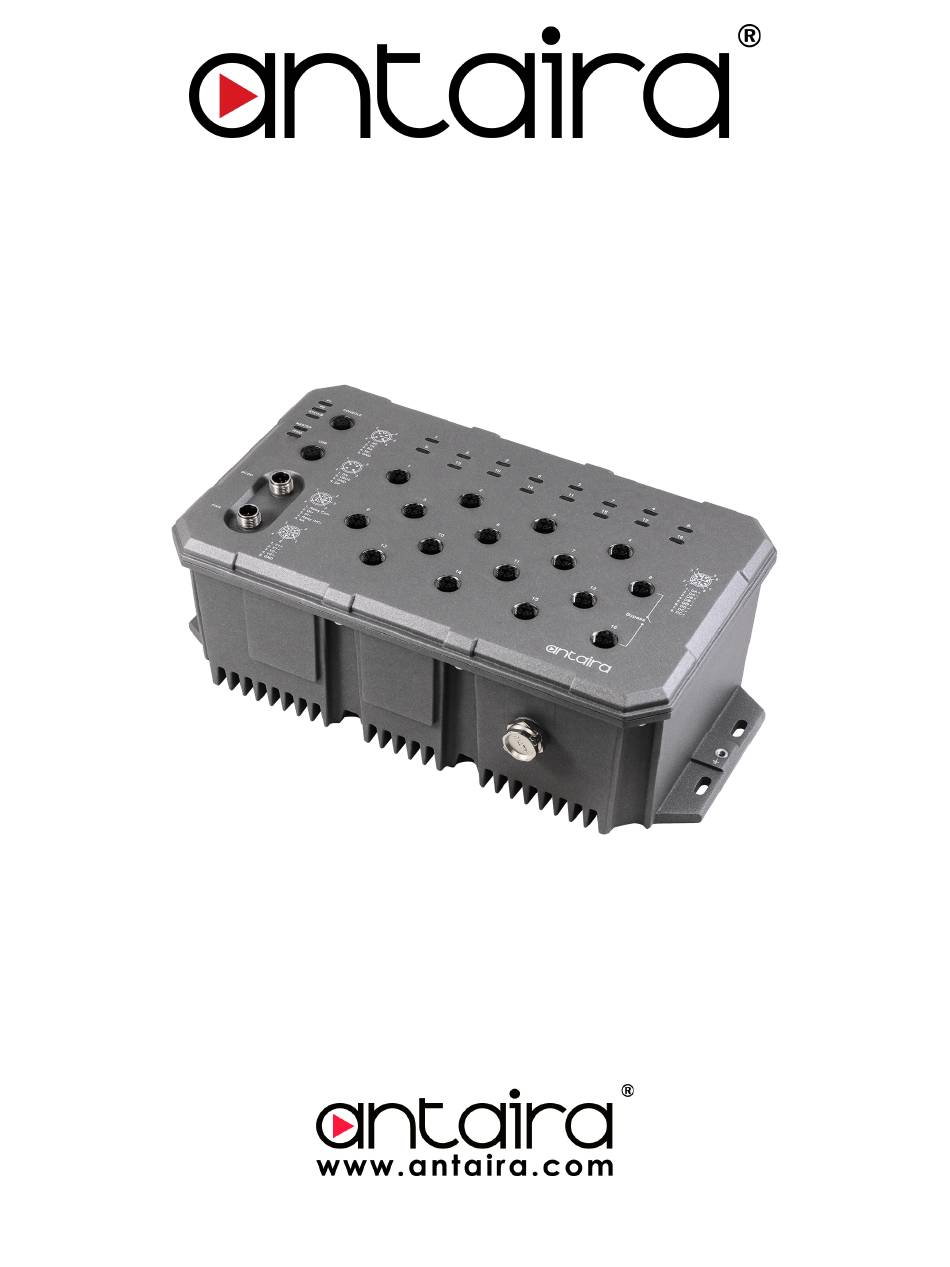

- Page 1 LMX-1600G-M12-67 Series 16-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch, with 16*10/100/1000Tx M12 Connectors (X-Coded), 24~55VDC Power Input Hardware Manual Version 1.0.1 (August 2022)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Product Software Features 1.3 Package Contents 1.4 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 LED Indicators... -
Page 6: Overview

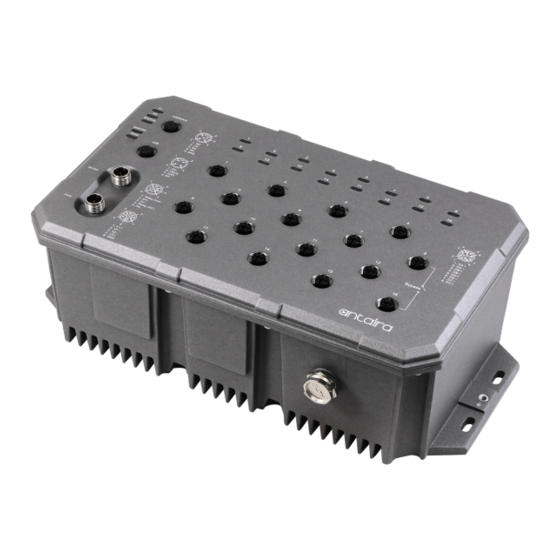

Antaira Technologies’ LMX-1600G-M12-67 Series is a 16-port managed gigabit Ethernet switch, which provides 16*10/100/1000 Base-T(X). LMX-1600G-M12-67 Series is a fully manageable light layer 3 Ethernet switch series and supports power inputs redundancy. LMX-1600G-M12-67 Series offers standardized network redundancy ITU-T G.8032 ERPS v2 (Ethernet Ring Protection Switch) protocol, providing <50ms recovery time to the network. -
Page 7: Product Software Features
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 1.2 Product Software Features Network Redundancy STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for network redundancy Network Management Web UI based management, SNMP v1/v2/v3, Serial Console QoS, traffic classification QoS, Cos, bandwidth control for Ingress and Egress, broadcast storm control, Diffserv... -
Page 8: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 1.4 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within this hardware manual. -
Page 9: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 166.2mm x 295mm x 101.3mm... -
Page 10: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel... -
Page 11: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 2.3 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its specific meaning, see below in Table 2.1. -
Page 12: Reset To Default
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 2.4 Reset to Default Please perform the steps below to reset the switch to factory default setting. Step 1: Reverse the Tx & Rx of the console cable and plug it into the console port. - Page 13 Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 ● Connection of Cables Use the twisted-pair cable, category 5e or the above cabling for M12 port connections. The cable between the Ethernet switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
-
Page 14: Usb Port
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 2.6 USB Port It is a M12 4-Pin A-Coded female connector ● USB Port is for configuration backup / restore ● M12 connector ● M12 4-Pin A-Coded female connector... -
Page 15: Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 2.8 Power Inputs This industrial Ethernet switch provides dual DC power inputs for redundancy through the M12 5-pin K-Coded male connector. Prepare the M12 5-pin K-Coded cable for power connection. Table 2.5 shows the pin assignment. - Page 16 Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 ● Connection of Cables ○ Minimum Wire Gauge: 24AWG ● Relay Contact Relay is opened if any event listed below happens: 1. The current PoE outputs of all connected PDs exceed 240 Watts (for PoE models) 2.
-
Page 17: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 ● Digital Input (DI) The digital input is used for monitoring two external events via an external voltage source. When the voltage level on digital input pins changes from high voltage to low voltage, the DI function will be triggered. Table 2.7 is shown a detailed specification of the digital input. -
Page 18: Bypass Function
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 2.11 Bypass Function This Ethernet switch supports bypass function by two Ethernet ports (P8 and P16). When one of the Ethernet switches loses power, Ethernet ports (P8 and P16) will bypass the power lost Ethernet switch to prevent the network from disconnecting. -
Page 19: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 3 Mounting Installation 3.1 Wall Mounting Follow the steps below to mount the industrial Ethernet switch to a wall using the screw holes as shown below in Figure 3.1. - Page 20 Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 Figure 3.2 - Position of the screw holes...
-
Page 21: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 22: Maintenance And Service
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot... -
Page 23: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping L2 Switching v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave... - Page 24 Antaira Technologies - Industrial Ethernet Switches LMX-1600G-M12-67 Series - Hardware Manual - v1.0.1 connection RS232 Serial Console 1*RS232 with M12 5-pin A-coded female connector 1*USB 2.0 with M12 4-pin A-coded female connector for configuration Configuration Backup backup/restore 1* Digital Input (DI): State 0: -30~8VDC / State 1: 10~30VDC, Max. input...
- Page 25 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
