LMX-2828G-10G-SFP Hardware Manual V1.0
LMX-2828G-10G-SFP

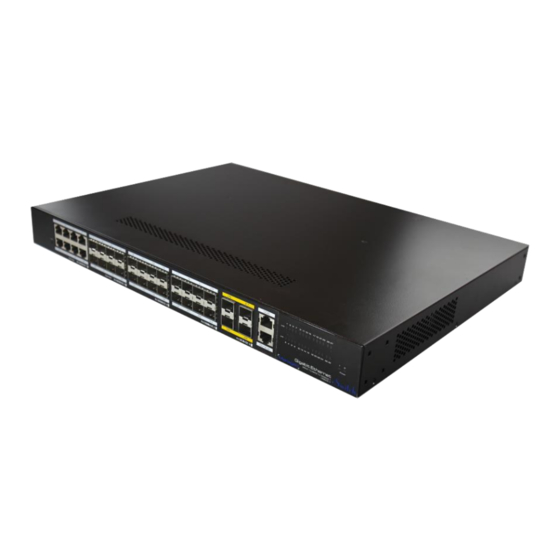

28-Port Industrial Gigabit Managed Ethernet Switch, with
16*100/1000 SFP Slots, 8*Gigabit Combo Ports (8*10/100/1000Tx
RJ45 and 8*100/1000 SFP Slots), and 4*1000/10G SFP+ Slots
(1 AC Power Supply Included)
Version 1.0
(August 2019)
Hardware Manual
i
Advertisement
Table of Contents
Related Manuals for ANTAIRA LMX-2828G-10G-SFP
Summary of Contents for ANTAIRA LMX-2828G-10G-SFP
- Page 1 Antaira Technologies - Industrial Ethernet Switches LMX-2828G-10G-SFP Hardware Manual V1.0 LMX-2828G-10G-SFP 28-Port Industrial Gigabit Managed Ethernet Switch, with 16*100/1000 SFP Slots, 8*Gigabit Combo Ports (8*10/100/1000Tx RJ45 and 8*100/1000 SFP Slots), and 4*1000/10G SFP+ Slots (1 AC Power Supply Included) Version 1.0...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC. Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. All other brand and product names are trademarks or registered trademarks of their respective owners.
- Page 3 This is a Class-A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Industrial Ethernet Switches This manual supports the following models: • LMX-2828G-10G-SFP Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-2828G-10G-SFP Hardware Manual V1.0 Table of Contents 1.Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........1 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............ -
Page 5: Overview
8*100/1000 SFP slots), and 4*10G SFP+ slots. This switch supports layer 3 routing protocols like RIP and OSPF, along with a static routing table. The LMX-2828G-10G-SFP has other functions like RSTP for network redundancy, IGMP, VLAN, QoS, and SNMP features. -
Page 6: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LMX-2828G-10G-SFP Hardware Manual V1.0 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be... -
Page 7: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMX-2828G-10G-SFP Hardware Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LMX-2828G-10G-SFP: (W x D x H) is 442mm x 44mm x 320mm Figure 2.1... -
Page 8: Front Panel
LED for Port Link Activity Combo Gigabit SFP OOB Console Figure 2.2 2.3 Rear Panel Figure 2.3, below, shows the rear panel of the LMX-2828G-10G-SFP switch that is equipped with an AC power port. Power Module 1 AC Power Input Figure 2.3... -
Page 9: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMX-2828G-10G-SFP Hardware Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 10: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LMX-2828G-10G-SFP Hardware Manual V1.0 2.5 Ethernet Ports ◼ RJ45 Ports (Auto MDI/MDIX): The RJ45 ports are auto-sensing for 10/100/1000Base-Tx device connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight- through or crossover cabling. -
Page 11: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-2828G-10G-SFP Hardware Manual V1.0 2.6 Cabling ◼ Twisted-pair segments can be connected with an Unshielded Twisted Pair (UTP) or Shielded Twisted Pair (STP) cable. The cable must comply with the IEEE 802.3ab 1000Base TX standard (e.g. -
Page 12: Connecting The Power Input
Antaira Technologies - Industrial Ethernet Switches LMX-2828G-10G-SFP Hardware Manual V1.0 2. Push down the metal clasp and pull the transceiver out by the plastic part as shown below in Figure 2.9. Figure 2.9 - Pull Out from the SFP Module 2.7 Connecting the Power Input... -
Page 13: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-2828G-10G-SFP Hardware Manual V1.0 3. Mounting Installation 3.1 Rack Mounting The switch comes with a rack-mounted kit which can be mounted in an EIA standard size, 19-inch rack. It can be placed in a wiring closet with other equipment. -
Page 14: Hardware Installation
LMX-2828G-10G-SFP Hardware Manual V1.0 4. Hardware Installation Installation Steps This section will explain how to install Antaira Technologies’ LMX-2828G-10G-SFP: Installation Steps 1. Unpack the industrial Ethernet switch from the original packing box. 2. Check if the rack-mount bracket is screwed on the industrial Ethernet switch. -
Page 15: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. •... -
Page 16: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMX-2828G-10G-SFP Hardware Manual V1.0 6. Technical Specifications Table 6.1 has the technical specifications for Antaira Technologies’ LMX-2828G-10G-SFP: IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3z Gigabit Fiber IEEE 802.3ae... - Page 17 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
