Summary of Contents for ANTAIRA LMX-1204G-SFP Series

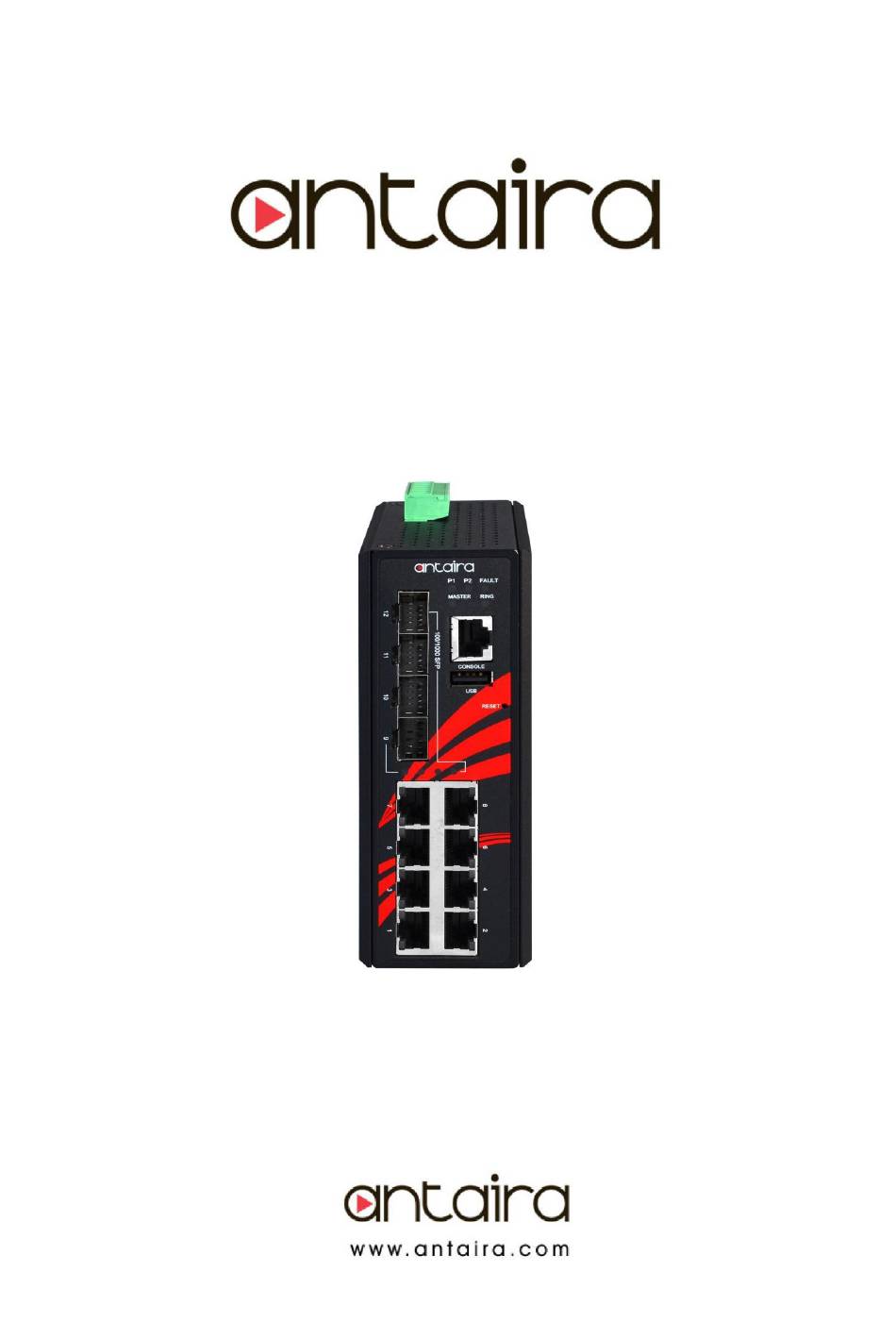

- Page 1 Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series User Manual V1.1 LMX-1204G-SFP Series (LMX-1204G-SFP / LMX-1204G-SFP-T) 12-Port Industrial Gigabit Managed Ethernet Switch with 8*10/100/1000Tx and 4*100/1000 SFP Slots Version 1.3 P/N: 92001204120201 Hardware Manual...
- Page 2 Technologies, LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.3 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 WARNING: EXPLOSION HAZARD – Do not disconnect while the circuit is live or unless the area is free of ignitable concentrations. This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com) or address (780 Challenger Street, Brea,...
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.3 Table of Contents Introduction ............1 1.1 Product Overview ..............1 1.2 Product Software Features ............1 1.3 Product Hardware Features............2 1.4 Package Contents ..............3 1.5 Safety Precaution ..............3 Hardware Description ......... -
Page 6: Introduction
802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMX-1204G-SFP series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 7: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.3 IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ... -
Page 8: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.3 1.4 Package Contents 1– LMX-1204G-SFP series: 12-port industrial gigabit managed Ethernet switch, with 8*10/100/1000Tx ports and 4*100/1000 SFP slots for fiber connectivity 1-Product CD 2-Wall mounting brackets and screws ... -
Page 9: Hardware Description
LMX-1204G-SFP Series Hardware Manual V1.3 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-1204G-SFP series: 12-port industrial gigabit managed Ethernet switches with 8*10/100/1000Tx ports and 4*100/1000Fx SFP slots. (W x D x H) is 54mm x 99mm x 142mm Figure 2.1... -
Page 10: Front Panel
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.3 2.2 Front Panel The front panel of the LMX-1204G-SFP series industrial gigabit managed Ethernet switch is shown below in Figure 2.2. 6-Pin Removal Terminal Block (Power Input) Grounding Screw LED for PWR1, PWR2, and Fault –... -
Page 11: Led Indicators
Networking is active (Right LED) Not connected to network Table 2.1 - LED Indicators for LMX-1204G-SFP Series Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". 2.5 Reset Button There is a ‘Reset’... -
Page 12: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.3 Seconds Function Save running configuration to USB Reboot the switch 7 or more Restore factory default Table 2.2 – Reset Button Functions 2.6 Ethernet Ports RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections. -
Page 13: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.3 Figure 2.4 Figure 2.5 Straight-Through Cable Schematic Crossover Cable Schematic 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. -
Page 14: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.3 2.9 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and forma normally open circuit. -
Page 15: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.3 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-... -
Page 16: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMX-1204G-SFP Series Hardware Manual V1.3 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 17: Hardware Installation
4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMX-1204G-SFP series: 12-port industrial gigabit managed Ethernet switches with 8*10/100/1000Tx ports and 4*100/1000 dual rate SFP fiber slots. Caution: This device is intended for use indoor and at altitudes up to 2000 meters. -
Page 18: Technical Specifications
Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMX-1204G-SFP series: 12-port industrial gigabit managed Ethernet switch with 8*10/100/1000Tx and 4*100/1000 SFP slots. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 19 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website...
