Atlanta Attachment Company 1335MG Technical Manual & Parts Lists

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

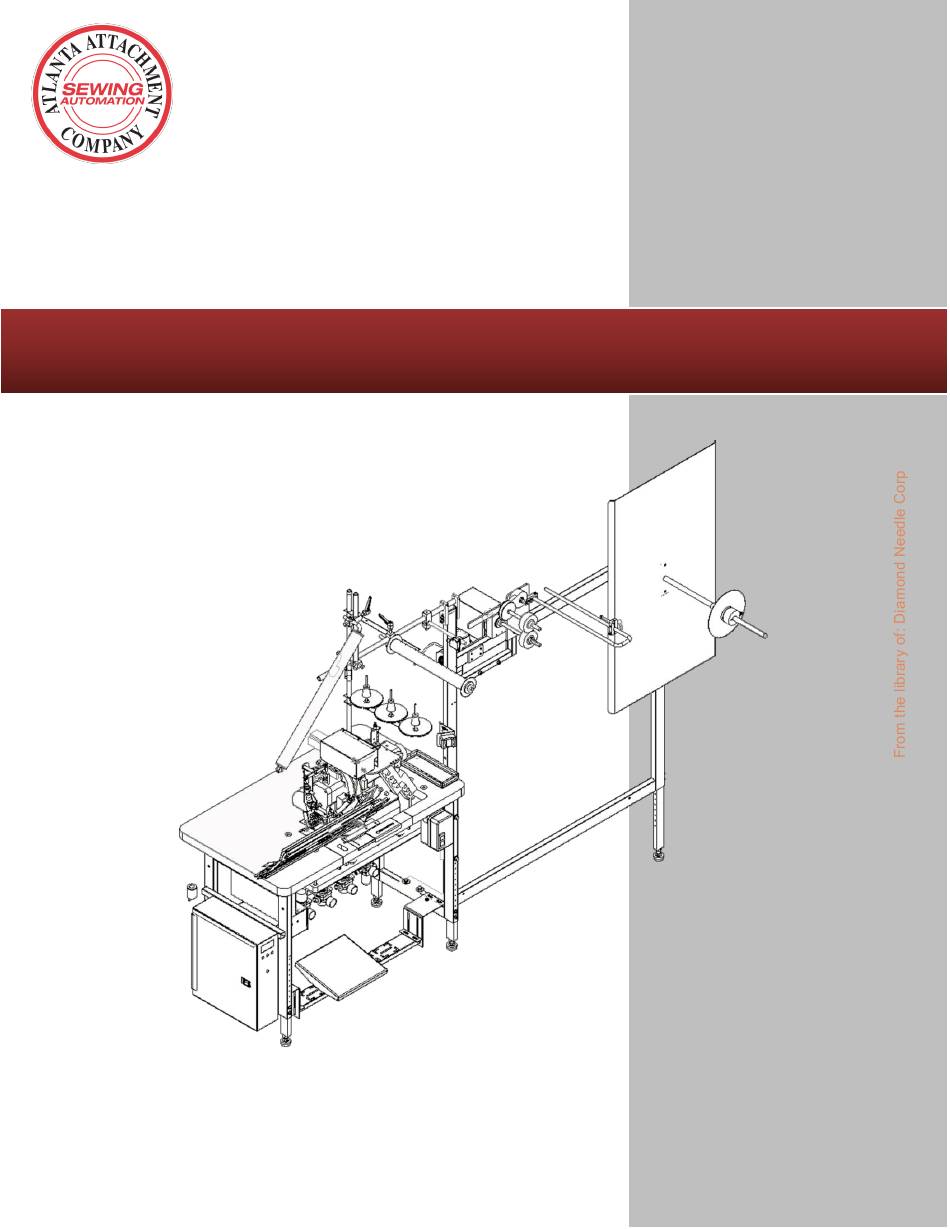

Technical Manual & Parts Lists
1335MG
Model
Revision 6.2
Updated
Atlanta Attachment Company
362 Industrial Park Drive
Lawrenceville, GA 30046
770-963-7369 • www.atlatt.com
Nov 6, 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1335MG and is the answer not in the manual?

Questions and answers

Related Manuals for Atlanta Attachment Company 1335MG

Summary of Contents for Atlanta Attachment Company 1335MG

  • Page 1 1335MG Model Revision 6.2 Updated Nov 6, 2012 Technical Manual & Parts Lists Atlanta Attachment Company 362 Industrial Park Drive Lawrenceville, GA 30046 770-963-7369 • www.atlatt.com...
  • Page 3 Attachment Company. In addition to any confidentiality and non-disclosure obligations that currently exist between you and Atlanta Attachment Company, your use of these materials serves as an acknowledgment of the confidential and proprietary nature of these materials and your duty not to make any unauthorized use or disclosure of these materials.

  • Page 4: Table Of Contents

    2.1.4.- Efka Motor ............................14 2.1.5.- Control Box ............................14 2.2.- Changing the Needle ..........................15 2.3 Threading ..............................16 2.3.1.- 1335MG (Yamato 2002) ......................... 16 2.3.2.- 1335MH (Singer 300UX6) ........................24 2.4.- Loading Material ............................. 31 1.- Border or Gusset Load........................... 31 2.- Panel or Non Skid Load ........................
  • Page 5 3.1.3.- Ruffler Assembly ..........................54 3.1.4.- Stripper Blade ..........................57 3.1.5.- Ruffler Blade ............................. 59 3.2 Sewing Head ............................... 62 3.2.1.- 1335MG (Yamato 2002) ......................... 62 1.- Individual components ......................... 62 2.- Lopper Timing ............................63 3.- Stitch Length............................68 4.- Puller ................................
  • Page 6 Technical Manual & Parts Lists 3.7.4.- Sewing Errors – Yamato 2002 needle-feed head ............... 94 3.7.5.- Flow Chart Stops at the corner ...................... 98 Assembly Drawings & Parts Lists ......................100 11335MGC-34SD Manual Pillowtop Ruffler, HD ................. 102 11335MGC-34U Manual Pillowtop Ruffler, HD ................... 104 11335MGC-ER Continental Foundation Ruffler, ERGO ...............
  • Page 7 Technical Manual & Parts Lists 1335MF-500 Control Box Assembly...................... 152 1335MG-10 Sewing Head Assembly ..................... 154 1959-700B Table and Frame Assembly ....................156 1959-800 Roll Holder Assembly ......................158 1335181 Stripper Blade Assembly ......................159 A-2216L5/16 Euro. Folder w/ Flange ..................... 160 A-2216M5/16 Continental Book Folder ....................

  • Page 8: Important Safety Instruction

    Manual & Parts Lists Technical Important Safety Instruction This part of the Instruction Material is provided for the safe use of your equipment. It contains important information to help work safely with the unit and describes the dangers inherent in machinery. Some of these dangers are obvious, while others are less evident.
  • Page 9 Technical Manual & Parts Lists Liability The machine should only be operated when in perfect working order, with due regard for safety and the potential dangers, as well as in accordance with the Instruction Material. Faults and malfunctions capable of impairing safety should be remedied immediately. We cannot accept any liability for personal injury or property damage due to operator errors or non-compliance with the safety instructions contained in this booklet.

  • Page 10: Safety Equipment On The Machines

    Manual & Parts Lists Technical the machine under the constant supervision of an experienced operator. Note the minimum age limits permitted by law. A Word to the Operator The greatest danger inherent in our machines: is that of fingers, hands or loose clothing being drawn into a machine by live, coasting or rotating tools or assemblies or of being cut by sharp tools or burned by hot elements.

  • Page 11: Protective Eyewear

    Technical Manual & Parts Lists Protective Eyewear Protective eyewear that has been tested by the local authorities should be worn whenever there is a possibility of loose or flying objects or particles such as when cleaning the machine with compressed air. Tools Always count the number of tools in your possession before starting work on the machine.

  • Page 12: Important Notices

    Manual & Parts Lists Technical 4. Call an ambulance. Do you know the telephone numbers for the ambulance service, police and fire service? Important Notices Reporting and Fighting Fires Read the instructions posted in the factory with regard to reporting fires and the emergency exits. Make sure you know exactly where the fire extinguishers and sprinkler systems are located and how they are operated.
  • Page 13 Technical Manual & Parts Lists depressurized before starting any work on the machine; otherwise the machine may execute uncontrolled movements. - Kinetic energy - Note that some motors or spindles, for example, may continue to run or coast run on after being switched off.

  • Page 14: Maintenance

    Manual & Parts Lists Technical Protect against climatic influences, such as electrostatic charges, lightning strikes, hail, storm damage, high humidity, salinity of the air in coastal regions. Protect against influences from the surroundings: no structure-borne vibrations, no grinding dust, or chemical vapors.

  • Page 15: Repair

    Technical Manual & Parts Lists Repair Replacement Parts We cannot accept any liability whatsoever for damage due to the use of parts made by other manufacturers or due to unqualified repair or modification of the machine. Repair, Electrical The power supply must be switched off (master switch off) and secured so that it cannot be switched on again inadvertently before starting any work on live parts.

  • Page 16: A Word To The End User

    Manual & Parts Lists Technical A Word to the End User The end user has sole responsibility to enforce the use of safety procedures and guards on the machine. Any other safety devices or procedures due to local regulations should be should be retrofitted in accordance to these regulations and/or the EC Directive on the safety of machines.

  • Page 17: Installation Manual

    Technical Manual & Parts Lists 1.- INSTALLATION MANUAL It is important that the machine operator read this manual and is familiar with all the functions and safety concerns of the unit before operating. 1.2.- Parts and Components...

  • Page 18: Technical Data

    Manual & Parts Lists Technical 1.2. - Technical Data Model 1335MD 1335MF 1335MG 1335MH Picture Feeding / Stitch type Multi-Purpose Ruffler Multi-Purpose Ruffler Multi-Purpose Ruffler Multi-Purpose Ruffler Workstation Workstation Workstation Workstation Pillow-top Gusset Ruffler Euro- Pillow-top Gusset Ruffler Euro- Pillow-top Gusset Ruffler Euro-...

  • Page 19: Installation & Set Up

    Be sure to re-clamp the puller motor bracket and insert the puller drive shaft into the u-joint 1335MG Yamato 2002. Check oil direct in front to the machine • Is recommended to take the data of initial factory parameters on the machine before connections.

  • Page 20: Operating Manual

    Manual & Parts Lists Technical 2.- OPERATING MANUAL It is important that the machine operator read this manual and is familiar with all the functions and safety concerns of the unit before operating. 2.1.- Individual Components 2.1.1.- Foot Pedal Stepping on the left side of the pedal will raise the foot and puller.

  • Page 21: Efka Motor

    Technical Manual & Parts Lists It is adjusted by loosening the wing nut (5) located under the table and slide the guide left or right. This setting is based on the sew margin needed. The panel tension finger (2) is used to add tension to the panel as it is being sewn.

  • Page 22: Changing The Needle

    Turn the needle until the scarf of the needle is pointing to the left side. Tighten the needle screw. Machine Sewing Head Needle System 1335MD DBX1-2 Mitsubishi 2210 1335MG SN62X5721 Yamato 1804 1335MD SN62X5924 Yamato 2002 1335MH SN62X8524 Singer 300UX6...

  • Page 23: Threading

    Technical Manual & Parts Lists 4) Thread the new needle, should be from right to left. 2.3 Threading 2.3.1.- 1335MG (Yamato 2002) 1.- Needle Please follow all safety procedures, turning off power is recommended. Swing out the ruffler assembly to access the thread.
  • Page 24 Manual & Parts Lists Technical 5) Through the first eyelet before the silicon reservoir. 6) Lift lid on silicon reservoir and pass thread through it. 7) Through the second eyelet after the silicon reservoir. 8) Through the first eyelet of the needle thread pre-tension.
  • Page 25 Technical Manual & Parts Lists 12) Through the needle thread take up eyelet on the needle bar. 13) Through the needle thread eyelet on the needle chuck. 14) Through the needle eye, should go in right to left.
  • Page 26 Manual & Parts Lists Technical 2.- Looper Please follow all safety procedures, turning off power is recommended. 1) Thread through the top thread tension eyelet. 2) Go around the right of the tension and between the tension disks 3) Through the bottom thread tension eyelet. 4) Lift up on the stripper blade and swing out to the right.
  • Page 27 Technical Manual & Parts Lists 6) Open the first front cover of the sewing head 7) Open the second front cover of the sewing head. Table and sewing head should look like picture to the right. 8) Thread through the first eyelet after the thread tension.
  • Page 28 Manual & Parts Lists Technical 9) Thread through the second eyelet on the side of the sewing head. 10) Thread through the first eyelet of the looper thread take up bracket. 11) Thread through the looper take up lever. 12) Thread through the second eyelet of the looper thread take up bracket.
  • Page 29 Technical Manual & Parts Lists 14) Thread through looper eyelet 15) Lift up on the lever located to the right of the throat plate. Never lift up on the lever while the machine is sewing, serious damage or injury may occur. By hand turn the hand wheel towards the front of the sewing head, so that the “P”...
  • Page 30 Manual & Parts Lists Technical 17) Thread through the eyelet on the needle guard on the looper. 18) Thread through the back hole on the looper. 19) Pass the thread along the groove in the looper. 20)Go up through the eye of the looper. 21)Turn the Hand wheel about ½...

  • Page 31: 1335Mh (Singer 300Ux6)

    Technical Manual & Parts Lists 2.3.2.- 1335MH (Singer 300UX6) 1.- Needle Please follow all safety procedures, turning off power is recommended. To start raise the material guide/folder and swing out the ruffler assembly. 1) Pull the thread through the eyelet located on the ruffler assembly mount.
  • Page 32 Manual & Parts Lists Technical 5) Thread through the first thread guide after the needle thread tension assembly. Located on the side of the sewing head. 6) Undo the latch for the crank case cover and open the door. 7) Thread through the needle thread take-up eyelet located on the side of the sewing head.
  • Page 33 Technical Manual & Parts Lists 8) Thread through the bottom thread guide of the needle thread take-up. 9) Thread through the take up rod located on the needle bar clamp. 10) Thread through the thread guide just in front of the needle.
  • Page 34 Manual & Parts Lists Technical 11) Thread through the eye of the needle, going right to left. 2.- Looper 1) Swing out the ruffler assembly and the stripper blade assembly. Open the access door in the table top. 2) Undo the latch for the looper access door. 3) Open the looper access door.
  • Page 35 Technical Manual & Parts Lists 4) Push the thread down through the thread tube on the right side of the sewing head. 5) Thread through the top eyelet of the looper thread tension assembly. 6) Pull thread around the bottom of and between the disks of the looper thread tension.
  • Page 36 Manual & Parts Lists Technical 11) Thread through the third thread guide of the looper thread take up assembly 12) Thread through the eyelet post located in the access slot on the cover of the looper assembly. 13) Thread through the hole in the casting also located in the access slot on the cover of the looper assembly.
  • Page 37 Technical Manual & Parts Lists 14) Pull the thread out through the tube just before the looper. 15) Thread through the needle guard eyelet on the looper. 16) Thread through the hole in the back of the looper. 17) Thread through the channel on the top side of the looper and up through the eye of the looper.

  • Page 38: Loading Material

    Manual & Parts Lists Technical 2.4.- Loading Material 1.- Border or Gusset Load Please follow all safety procedures, turning off power is recommended. 1)Turn power on by pressing the On button on the Main Power Switch. 2) Check that the On/Off switch on the Efka motor controller is Orange, and that the Display shows the RPM.
  • Page 39 Technical Manual & Parts Lists 4) Loosen thumb screw and remove the disk. Place border roll on support rod, for box springs or one sided mattresses place so that the tick side is down as it feeds off the roll, for pillow top gussets place so the tick side is up as it feeds off the roll.
  • Page 40 Manual & Parts Lists Technical 7) The material should be positioned like the picture to the left. 8) Next lift up the border or use your hand to block the border loop eye. The yellow light on the eye will come on either solid or blinking. 9) Step on the left side of the foot pedal and the material will automatically start feeding from the feed rollers.
  • Page 41 Technical Manual & Parts Lists 10) Feed enough material out to get the material over both the guide roller and angled guide roller. 11) Next place the material in the border guide/folder.. The folder spacers should be sized as required to fit the thickness of the gusset. Extra spacers can be ordered to fit any thickness gusset from 1/8"...

  • Page 42: Panel Or Non Skid Load

    Manual & Parts Lists Technical 13) Next step on the left side of the foot pedal to raise the foot and puller. Place the border material under the ruffler blade, over the stripper blade, under the foot and puller. Pull enough material so that about half an inch is behind the puller.
  • Page 43 Technical Manual & Parts Lists 3) Pull the panel forward or backward until the center notch is even or just behind the needle. Make sure that the panel is even with the right edge of the border material. 4) Use the wipe switch to lower the border guide/folder.

  • Page 44: Sewing Procedure

    Manual & Parts Lists Technical 2.5.- Sewing Procedure Please follow all safety procedures, turning off power is recommended. 1) Start by pressing down on the right side of the Foot Pedal. The sewing head will start feeding both the border and the panel. The operator only has to guide the panel.
  • Page 45 Technical Manual & Parts Lists 4) When the machine stops in square corner mode, the foot and puller will rise, the Needle bar stops down, and the panel tension finger will go down. Operator will still be pressing down on the foot pedal even though the machine is not sewing.

  • Page 46: Closing Procedure Option 1

    Manual & Parts Lists Technical 2.5.1.- Closing Procedure Option 1 1) After turning the fourth corner you will need to slow down and stop the machine just as the leading/starting edge of the border gets to the top plate. Fold the leading edge back towards you and sew until the starting stitches reach the edge of the table top, as shown.
  • Page 47 Technical Manual & Parts Lists 4) Cut the border material and swing the ruffler assembly out of the way. 5) Pull the panel out from between the panel tension finger and the top plate and pull it over the top of the top plate. Fold the leading edge material towards you.
  • Page 48 Manual & Parts Lists Technical 7) Lay the panel out flat and pinch the two ends together, finding where they meet at the panel, this is where you will sew for the close seam. You can use a marker and mark where the seam will be for better seam alignment when placing under the presser foot for sewing.
  • Page 49 Technical Manual & Parts Lists 10) Open the extra material, like a book and lay them flat. Raise the foot and puller by stepping on the left side of the foot pedal and slide the material under them. Line up the needle with the existing sew line and sew across the seam.

  • Page 50: Closing Procedure Option 2

    Manual & Parts Lists Technical 2.5.2.- Closing Procedure Option 2 1) After turning the fourth corner you will need to slow down and stop the machine just as the leading/starting edge of the border gets to the top plate. 2) Use the wipe switch to raise the folder. 3) Pull out some extra material.
  • Page 51 Technical Manual & Parts Lists 4) Cut the border material and swing the ruffler assembly out of the way. 5) Pull the panel out from between the panel tension finger and the top plate and pull it over the top of the top plate. Fold the leading edge material towards you.
  • Page 52 Manual & Parts Lists Technical 7) Lay the trailing edge of the border material over the folded leading edge. 8) Use the right side of the foot pedal and Sew across until you get to the existing sew line. Step on the left side of the foot pedal and raise the presser foot and puller and remove the material from under them.
  • Page 53 Technical Manual & Parts Lists 10) Use the left side of the foot pedal and raise the presser foot and puller and place the material under them as shown. 11) Try to maintain the same amount of fold for the leading edge or the seam will not come out straight.

  • Page 54: Ruffle Size Adjustments

    Manual & Parts Lists Technical 2.6.- Ruffle Size Adjustments To adjust the size of the ruffle, turn the adjustment knob located on the front of the ruffler assembly. Turning the knob clockwise makes the ruffler smaller, turning the knob counter clockwise will make the ruffle larger.

  • Page 55: Sizing The Panel

    Technical Manual & Parts Lists 2.7- Sizing the Panel Panel size: W – (2 x X) + (2 x Y) Example: Frame size = 80” Waterfall = 3” Seam allowance panel = ½” Panel size = 80” – (2x 3”) + (2x ½”) Panel size = 80”...

  • Page 56: Flow Chart Sizing Box Springs

    Manual & Parts Lists Technical 2.7.1.- Flow Chart Sizing Box Springs (Page 1)
  • Page 57 Technical Manual & Parts Lists Explanations Flow Chart Sizing Box Springs (Page 1) A – Changing stitch -count. The number of stitches after the panel uncovers the photo -eye. The higher the number the wider the corner will end. Change the number of stitches by using the push -buttons at the front of the control-box. B –...

  • Page 58: Flow Chart Cover Adjustments

    Manual & Parts Lists Technical 2.7.2. Flow Chart Cover Adjustments (Page 2)
  • Page 59 Technical Manual & Parts Lists Problems Solutions The cover fits the corners ok but the border Run another panel and check the sizing of it. between the corners is baggy. If it is still baggy then reduce the air pressure for the panel tension, see 3.3 Air Regulators Decrease the puller pressure, see 3.3 Air Regulators...

  • Page 60: Maintenance

    Manual & Parts Lists Technical 2.8.- Maintenance a.- Daily Maintenance Open up all the covers on the sewing head and blow out the lint from the machine. Wipe all the electric eyes off with a soft nonabrasive cloth. Check for and clean threads from around the puller housing and puller wheel.

  • Page 61: Technical Manual

    Technical Manual & Parts Lists 3.-TECHNICAL MANUAL It is important that the machine operator read this manual and is familiar with all the functions and safety concerns of the unit before operating. 3.1.- Individual Components 3.1.1.- Border Guide Rod Assembly The border guide rod assembly is located right above the sewing head.
  • Page 62 Manual & Parts Lists Technical Also mounted to the ruffler arms are the ruffler cylinder (4) which moves the ruffler blade up and down, the border guide/folder lift cylinder (5) which is activated by the wipe switch located on the front right of the table and the ruffler blade (6). The front of the ruffler drive assembly has the ruffle adjustment knob (7), used to adjust the size of the ruffle.
  • Page 63 Technical Manual & Parts Lists Also located under the ruffler drive assembly cover there is the flag (11) which is read by the home proximity sensor (12) and the out sensor (13). Everything is mounted to the swing out bracket (14). Located on the back of the swing out bracket (14) there is a lock pin (15).

  • Page 64: Stripper Blade

    Manual & Parts Lists Technical The stripper blade (16) is part of the ruffling assembly and is mounted to the bed plate of the sewing head on its own swing out bracket (17). The stripper blade allows the ruffling blade to pinch the border material between it and the stripper blade and push the material under the foot without pleating the panel.
  • Page 65 Technical Manual & Parts Lists To adjust the height of the stripper blade loosen the socket head cap screws resting against the pins on the mounting block. Move the blade up or down as needed, rotate the collars until the socket head cap screws are resting against the pins and tighten the screws.

  • Page 66: Ruffler Blade

    Manual & Parts Lists Technical 3.1.5.- Ruffler Blade Loosen the two cover screws located on the right side of the ruffle assembly. Remove the cover by lifting up. Locate the two proximity switches to the right of the ball screw. The back sensor is the Home sensor and the front sensor is the ruffle Out sensor.
  • Page 67 Technical Manual & Parts Lists After the manual button is pressed the ruffle blade will move to the down position, on top of the stripper blade. Tap on the right side of the foot pedal. The stepping motor will move the flag to the out sensor and stop.
  • Page 68 Manual & Parts Lists Technical The teeth of the ruffling blade should either be even with or no more than 1/8 inch past the needle. To adjust, loosen the proximity sensor screw and slide the sensor left or right in the slot. Press the reset button once to reset the ruffle blade back to the home position.

  • Page 69: Sewing Head

    Technical Manual & Parts Lists 3.2 Sewing Head 3.2.1.- 1335MG (Yamato 2002) 1.- Individual components The front of the sewing head has the needle and lopper thread tension disk (1) and the needle thread pre-tension (2). The needle thread pre- tension (2) keeps tension on the needle thread while turning the panel in square corner mode.

  • Page 70: Lopper Timing

    Manual & Parts Lists Technical The presser foot cylinder works only during the straight sew of the panel. When the machine is ruffling the air pressure is turned off to this cylinder and the foot pressure is just the spring pressure from the spring located inside the sewing head.
  • Page 71 Technical Manual & Parts Lists This adjustment is made by loosening the socket head cap screw (3) and moving the looper forward or back until the 3/16 inch measurement is made. Rotate the Hand wheel until the point of the looper (4) is even with the center of needle.
  • Page 72 Manual & Parts Lists Technical The angle of the looper blade (7) in relation to the looper holder should be set to 90 degrees. The clearance of the looper point to the needle (8) should be from 0 to .05 mm. The angle of the looper blade is set by loosening the two slotted screws (10) and turning the looper until the 90 degree setting is achieved.
  • Page 73 Technical Manual & Parts Lists The left to right clearance of the spreader point (14) should beset so that when the looper is moving forward the point of the spreader is 0 to 0.1 mm to the left of the looper. The height of the spreader is set so that as the spreader is moving to the right and passes over the looper it clears the top of the looper by 0.1 to 0.4...
  • Page 74 Manual & Parts Lists Technical When the needle moves down, the clearance of the spreader point to the front of the needle should be 1.8 to 2.0 mm (17). With some Kevlar threads this clearance may have to be closer, 1.5 to 1.0 mm, to prevent the looper thread from slipping off of the spreader before the needle enters the triangle.

  • Page 75: Stitch Length

    Technical Manual & Parts Lists To adjust the feed dog height, remove the throat plate, then loosen screw (20). Then loosen the nut (21) and turn the screw (22) on the back of the feed dog holder to raise or lower the feed dog as needed.
  • Page 76 Manual & Parts Lists Technical Rotate Hand wheel (2) counter clockwise until the feed dog regulating button catches in the slot on the eccentric (not shown), and the button drops down further. With the button still pressed, rotate the Hand wheel until the desired stitch length number (3) on the Hand wheel lines up with the brass marker (4) located on the front right side of the sewing head,...
  • Page 77 Technical Manual & Parts Lists Count the number of stitches per inch. Sew another line on the same scrap piece of material. Count the stitches per inch with the puller. The stitches per inch without the puller should be ½to 1 full stitch more than with the puller.

  • Page 78: Puller

    Manual & Parts Lists Technical 4.- Puller Puller Height The height of the puller wheel (1) is set so that it about .003 about the wear plate on the sewing head. A business card or other heavy paper should be able to slide between the puller wheel and the wear plate.
  • Page 79 Technical Manual & Parts Lists Puller Spring Pressure Spring pressure is set by turning the adjusting screw (1) at the top of the puller assembly. The factory default is to have about 1.5 inches of the screw above the casting. Adjust according to material thickness and type.

  • Page 80: Pneumatically

    Manual & Parts Lists Technical 3.3 Pneumatically 3.3.1.- Air Regulators 1.- 1335MG (Yamato 2002) The regulator assembly is located under the table. The right regulator is for the main air pressure, this is normally set to 70 to 80 psi.

  • Page 81: Electrical

    Technical Manual & Parts Lists 3.4 Electrical It is important that the machine operator read this manual and is familiar with all the functions and safety concerns of the unit before operating. 3.4.1.- Main Power Switch The main power On/Off switch is located under the table and to the right.

  • Page 82: Stepping Motor Control Box

    Manual & Parts Lists Technical 3.4.2 Stepping Motor Control Box The stepping motor box is located under the table. The Ruffler box has three thumbwheels on the front which are set to synchronize the Ruffler to the sewing head. The number is proportional to the stitch length and is not affected by sewing speed.

  • Page 83: Ruffler Control Box

    Technical Manual & Parts Lists 2.- Mini Switch (SW1)  Switch # 1: Control the rotations of the motor CW: Clock wise rotation. CCW: Counter close wise rotation For 1335 Ruffler 2 AMPS motors set to position Open (CW)  Switch 2: No function ...
  • Page 84 Manual & Parts Lists Technical Thumbwheel 5 has two functions. When it is set to 1‐6, it sets the number of ruffles to be sewn in the corner. The panel must be turned while ruffling to form a round corner. When this thumbwheel is set to 7, 8, or 9 the ruffler will sew in “square corner”...

  • Page 85: Eyes

    Technical Manual & Parts Lists The door on the left side of the ruffler control box gives access to the electronic components. The on/off switch (1), the unwinder relay (2), the computer board (3), the thumbwheels (4), the valve assembly (5), the WAGO blocks (6). Do not service this part of the machine while power is still connected.
  • Page 86 Manual & Parts Lists Technical 3.- Border Loop Eye The border loop eye is located on the border guide rod assembly. The border loop eye, when covered (yellow light is on) activates the border unwinder feed rollers. 4.- Adjustments Hand wheel and Panel Eye To set the eye, first remove the cover (not shown), make sure that the operating mode switch is set to L.O.

  • Page 87: Efka Motor

    Technical Manual & Parts Lists 3.5.- Efka Motor 3.5.1.- Connections The back of the Efka Motor has all of the cables. 1.- Power Cable for the Efka Motor.(Goes to the Efka Motor) 2.-Foot Pedal Cable 3.- Commutation Transmitter (goes to the Efka Motor) 4.-Hand wheel Eye 5.-Socket for solenoid inputs and outputs, solenoid...

  • Page 88: Parameters

    Manual & Parts Lists Technical 3.5.2.- Parameters Parameter Programming Sheet 1335 JUKI/CONSE SING MITSUBISHI YAM 1804 YAM 2002 PARAMETE 300UX5 RANGE LOCHSTITC CHAINSTITC CHAINSTITC 1335M PARAMETER DESCRIPTION CHAINSTITC WALKING FOOT Do this first ***** **** **** Perform a master reset before programming, see below Mode (Lockstitch) of operation.

  • Page 89: Programming

    Technical Manual & Parts Lists 3.5.3.- Programming 1) Press and hold the “P” button while turning on the Main Power Switch. 2) Once “cod” (short for code) appears in the display release the “P” button and press the “>>” button. The code to enter in is “311” 3) 000 will appear on the display with the left 0 blinking.
  • Page 90 Manual & Parts Lists Technical 4) Display should look like picture to the left with the middle “0” blinking, if not press the “>>” button until the middle “0”is blinking. Press the “+” button once to get a “1” as the middle number. Then press the “>>”...
  • Page 91 Technical Manual & Parts Lists 7) The display will change to “2.0.0.” this is a parameter number “200”. Any number with the “.” between the digits will be a parameter. To move o the correct parameter you will press either the “+” or “‐”...
  • Page 92 Manual & Parts Lists Technical 10) The display will show “2.9.1.”, this is the next parameter after “290”. You will use the “+” or “-” buttons to advance to the next parameter on the list, then follow the process in step 9. Continue this until all parameters have been set according to the programming sheet.

  • Page 93: Maintenance

    Technical Manual & Parts Lists 3.6.- Maintenance 3.6.1.- Daily Open up all the covers on the sewing head and blow out the lint from the machine. Wipe the electric eyes off with a soft nonabrasive cloth. Check for and clean threads from around the puller housing and puller wheel.

  • Page 94: Weekly

    Manual & Parts Lists Technical 3.6.2.- Weekly Check and clean thread from around the puller wheel and housing. The thread can harm the clutch bearings inside the puller wheel if allowed to build up. If, especially using Kevlar thread, there is thread wrapped around the puller shaft it may necessary to disassemble the puller wheel to remove all of the threads.
  • Page 95 Technical Manual & Parts Lists Check the oil level by looking into the sight glass. The oil level should be between the two red lines inside the sight glass. To add oil swing out the ruffler assembly to access the rubber plug over the oil hole.

  • Page 96: Month

    Manual & Parts Lists Technical 3.6.3.- 3 Month Running two 8 hour shifts 3.6.4.- 6 Month Running one 8 hour shift Place a container under the drain located on the bottom right of the sewing head. Drain the oil by opening the valve and allowing the oil to completely drain into the container then closing the valve.
  • Page 97 Technical Manual & Parts Lists Fill the oil level until the oil is between the two red lines viewed through the sight glass.

  • Page 98: Troubleshooting

    Manual & Parts Lists Technical 3.7.- Troubleshooting 3.7.1.- Efka Controller Error Problem Solution A1 Pedal not in neutral position, when turning the machine on A2 Machine run blockage A3 Reference position is not set A6 Light barrier monitoring A7 Bobbin thread monitor E1 The external pulse encoder is defective or not To clear the error turn the power off to the Efka connected...

  • Page 99: Flow Chart Efka Error E1

    Technical Manual & Parts Lists 3.7.2.- Flow Chart EFKA Error E1...

  • Page 100: Sewing Errors

    Manual & Parts Lists Technical 3.7.3.- Sewing Errors Problem Solution Skips in the corners 1) Check the thread tensions. 2) Check that the machine is threaded properly, see chapter 2.3 3) Check the ruffling blade adjustments, see chapter 3.1 4) Check the sewing adjustments, see chapter 3.2 1)Adjust the ruffling blade so that it doesn’t push Long stitch at the start of the ruffle or on the ruffle.

  • Page 101: Sewing Errors - Yamato 2002 Needle-Feed Head

    Technical Manual & Parts Lists 3.7.4.- Sewing Errors – Yamato 2002 needle-feed head Problem Solution If a long stitch is present at the start of Follow next 4 Steps a ruffle or on the next ruffle. This stitch will look like a skip but on the 1.- Check the location and stroke of the bottom side you will not see a needle Ruffler Assembly.
  • Page 102 Manual & Parts Lists Technical 2. Review the location of the ruffle blade to the needle when the blade is in the downward position, just before the ruffle begins. Instructions to check location of blade: a) Switch the manual/automatic button to the manual position.
  • Page 103 Technical Manual & Parts Lists 3. This adjustment is controlled by the down-stop sensor located inside the worm gear cover. a) Remove the cover b) Switch the manual/automatic button to the manual position. c) Push the reset button one-time and the ruffle blade will come down.
  • Page 104 Manual & Parts Lists Technical time you step on the treadle it will go through this cycle until it is complete and then it will return to the home position) f) Push the reset button one-time and the ruffle blade will return upward to the home position. g) Switch the manual/automatic button to automatic position for normal operation.

  • Page 105: Flow Chart Stops At The Corner

    Technical Manual & Parts Lists 3.7.5.- Flow Chart Stops at the corner...
  • Page 106 Technical Manual & Parts Lists...

  • Page 107: Assembly Drawings & Parts Lists

    Company. In addition to any confidentiality and non-disclosure obligations that currently exist between you and Atlanta Attachment Company, your use of these materials serves as an acknowledgment of the confidential and proprietary nature of these materials and your duty not to make any unauthorized use or...
  • Page 108 Technical Manual & Parts Lists...

  • Page 109: 11335Mgc-34Sd Manual Pillowtop Ruffler, Hd

    Technical Manual & Parts Lists 11335MGC-34SD Manual Pillowtop Ruffler, HD AAC Drawing Number 192100B Rev1 QTY PART # DESCRIPTION 1334S-02 Auto Flang Workstation Page 116 Page 11335MGC-SD Cont. Foundation Ruffler Page 106 Page 1335-002 Joining Tube 1334035 Adaptor 3206007 Rod Clamp A-2212A Bent Rod 785-A95-06...
  • Page 110 Technical Manual & Parts Lists...

  • Page 111: 11335Mgc-34U Manual Pillowtop Ruffler, Hd

    Technical Manual & Parts Lists 11335MGC-34U Manual Pillowtop Ruffler, HD AAC Drawing Number 192074B Rev2 QTY PART # DESCRIPTION 1334S-02 Auto Flang Workstation Page 116 11335MGC-SU Cont. Foundation Ruffler Page 108 1335-002 Joining Tube 1334035 Adaptor 3206007 Rod Clamp A-2212A Bent Rod 785-A95-06 Disc Assy.

  • Page 112: 11335Mgc-Er Continental Foundation Ruffler, Ergo

    Technical Manual & Parts Lists 11335MGC-ER Continental Foundation Ruffler, ERGO AAC Drawing Number 9004361 Rev0 QTY PART # DESCRIPTION 1335105 UNWINDER ASSY (K3) Page 120 Page 1335991 RUFFLER, MAIN ASSY- ERGO Page 114 Page 1335M-2002E BLADE, RUFFLER, 2.25 X 12 1335M-430E GUIDE ROLLER ASSY Page 150...

  • Page 113: 11335Mgc-Sd Continental Foundation Ruffler, Hd

    Technical Manual & Parts Lists 11335MGC-SD Continental Foundation Ruffler, HD AAC Drawing Number 192101B Rev2 QTY PART # DESCRIPTION 1335105 Unwinder Assy. Page 120 Page 1335307 Base Console Page 134 Page 1335M-430E Guide Roller Assy. Page 150 Page A-2216M5/16 Folder Page 161 Page K-340...

  • Page 114: 11335Mgc-Sdat Continental Foundation Ruffler, 18", Cs

    Technical Manual & Parts Lists 11335MGC-SDAT Continental Foundation Ruffler, 18”, CS AAC Drawing Number 192964C Rev5 QTY PART # DESCRIPTION K-340 Foot Pedal 1335105 Pwr RLR Unwinder Assy Page 120 Page 1335M-430E Guide Roller Assy. Page 150 Page 1335307 Generic Console Page 134 Page A-2216M5/16...

  • Page 115: 11335Mgc-Su Continental Foundation Ruffler, Hd

    Technical Manual & Parts Lists 11335MGC-SU Continental Foundation Ruffler, HD AAC Drawing Number 9000277 Rev5 QTY PART # DESCRIPTION 1335105 UNWINDER ASSY (K3) Page 120 Page 1335307 RUFFLER, MAIN ASSY- MG200 Page 134 Page 1335M-2002E BLADE, RUFFLER, 2.25 X 12 1335M-430E GUIDE ROLLER ASSY Page 150...

  • Page 116: 11335Mgc-Suat Continental Foundation Ruffler, Hd

    Technical Manual & Parts Lists 11335MGC-SUAT Continental Foundation Ruffler, HD AAC Drawing Number 192966C Rev6 QTY PART # DESCRIPTION 1335105 Pwr RLR Unwinder Assy Page 120 Page 1335307 Generic Console Page 134 Page 1335M-430E Guide Roller Assy. Page 150 Page 4059-FP301D Foot Pedal A-2216M5/16...

  • Page 117: 11335Mgr Continental Foundation Ruffler, Md

    Technical Manual & Parts Lists 11335MGR Continental Foundation Ruffler, MD AAC Drawing Number 9000243 Rev2 QTY PART # DESCRIPTION 1335155 UNWINDER ASSEMBLY Page 122 Page 1335307 RUFFLER, MAIN ASSY- MG200 Page 134 Page 1335M-2002E BLADE, RUFFLER, 2.25 X 12 AR 1335MF-PD PNEUMATIC DIAGRAM Page 164 Page...

  • Page 118: 11337At Air Table Assembly, Universal

    Technical Manual & Parts Lists 11337AT Air Table Assembly, Universal AAC Drawing Number 1337293 Rev5 QTY PART # DESCRIPTION 1335081 SUPPORT, SHELF AR 1337023 BRACKET, TABLE TOP RUFFLR AR 1337024 MOUNT, AIR TABLE 1337A-0168B BRACKET, RETAINER 1337A-160 AIR TABLE ASSY,SINGLE TBL Page 112 Page 1337A-175C...

  • Page 119: 1337A-160 Air Table Assembly, Single Table

    Technical Manual & Parts Lists 1337A-160 Air Table Assembly, Single Table AAC Drawing Number 1337296 Rev7 QTY PART # DESCRIPTION 1335-159 ACCESS COVER 1337135 BLOWER ASSY 1337A-0161 ANGLE, CORNER 1337A-0163 WELDMENT, LEG, TABLE 1337A-150 AIR TABLE ASSY K-235 CONNECTOR,ROMEX,1/2" MMFB4444 FOOT, RUBBER NNH1/2-13 NUT,HEX,1/2-13...

  • Page 120: 1334-1000A Sewing Head Detail

    Technical Manual & Parts Lists 1334-1000A Sewing Head Detail AAC Drawing Number 192557C Rev3 QTY PART # DESCRIPTION SYAM-1804A Yamato Sew Head 1862N94016 Needle Holder 112013 Brkt AAC6S-1-H Air Cylinder 11200A Bumper AA198RR508 Flow Control SSSCM6X20 Screw, Socket Cap 54242B9016 Spreader 1959-412 Guard...

  • Page 121: 1335991 Ruffler Main Assembly, Ergo

    Technical Manual & Parts Lists 1335991 Ruffler Main Assembly, ERGO AAC Drawing Number 1335991 Rev0 QTY PART # DESCRIPTION 26151 TOOL TRAY, 1X3.5X9 1335181 STRIPPER BLADE ASY,1335MG Page 159 Page 1335294 RUFFLER ASSEMBLY Page 130 Page 1335427 SEW HEAD ASSY,1335MG...
  • Page 122 Technical Manual & Parts Lists...

  • Page 123: 1334S-02 Auto Flanging Workstation

    Technical Manual & Parts Lists 1334S-02 Auto Flanging Workstation AAC Drawing Number 192070B Rev2 QTY PART # DESCRIPTION 1334-1000A Sewing Head Assy Page 113 NNK1/4-20 Kep Nut SSZH#10192 Sheet Metal Screw 1334-1100D Folder Mount Page 117 WWFS10 Flat Washer RRLC105J10 Spring 1959-112 2 Pos Thread Plate Assy...

  • Page 124: 1334-1100D Folder Mount Assembly, Flanger

    Technical Manual & Parts Lists 1334-1100D Folder Mount Assembly, Flanger AAC Drawing Number 192929C Rev1 QTY PART # DESCRIPTION 1334-1005 Lower Angle Mount 1334-1006 Lock Handle Mount MMAGR25360M Linear Rail 1335-310 Stop Block TTH32416 Threaded Handle WWFS1/4 Flat Washer WWL1/4 Lock Washer WWL3/8 Lock Washer...

  • Page 125: 1334-1200A Material Guide Assembly

    Technical Manual & Parts Lists 1334-1200A Material Guide Assembly AAC Drawing Number 192092B Rev0 QTY PART # DESCRIPTION 1334-1023 Guide Mount 1334-1024 Support 1335-318 Rod Slide Arm 1335-319 Rod Clamp Arm 1335-320C Rod, 3/8 x 9 1335Q-130A Rod, 3/8 x 24 SSSS01024 Screw, Socket Set SSSC95048...
  • Page 126 Technical Manual & Parts Lists...

  • Page 127: 1335105 Unwinder Assembly

    Technical Manual & Parts Lists 1335105 Unwinder Assembly AAC Drawing Number 1335105 Rev15 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION 1325-346 HOLDER,ROD,1/2 D,SLOT MNT NNH1/2-13 1/2-13 HEX NUT 1325-346A HOLDER, ROD, 3/4", SLOT NNH1/4-20 1/4-20 HEX NUT 132556-273 LEG, 3/4 X 1-1/2 X 15 LG NNH3/8-16...
  • Page 128 Technical Manual & Parts Lists...

  • Page 129: 1335155 Unwinder Assembly

    Technical Manual & Parts Lists 1335155 Unwinder Assembly AAC Drawing Number 1335155 Rev4 QTY PART # DESCRIPTION 132556-273 LEG, 3/4 X 1-1/2 X 15 LG 1335-022 CABLE,3PIN FM MOLEX,7'L 28201 BLOCK,CROSS,(LARGE) 1335156 UNWINDER FRAME 1335194 MOTOR ASSY, UNWINDER Page 124 1335306 STABILIZER,UNWINDER 1335359...
  • Page 130 Technical Manual & Parts Lists...

  • Page 131: 1335194 Unwinder Motor Assembly

    Technical Manual & Parts Lists 1335194 Unwinder Motor Assembly AAC Drawing Number 1335194 Rev1 NO. QTY PART # DESCRIPTON NO. QTY PART # DESCRIPTON 1325-346 HOLDER,ROD,1/2 D,SLOT MNT CCCL8F CLAMP COLLAR- 1/2 1335-837A ROD,1/2 DIA, 180 DEG GG157L050 BELT,GEAR,3/8P,1/2W 1335188 BRACKET, MOTOR WELDMENT NNE3/8-16 NUT, ELASTIC 3/8-16...

  • Page 132: 1335271 Foot Pressure Assembly

    Technical Manual & Parts Lists 1335271 Foot Pressure Assembly AAC Drawing Number 1335271 Rev2 QTY PART # DESCRIPTION 1335207 MTG BRKT, FOOT LIFT 1335M-108 LEVER AA198RR508 FLOW CONTROL,5/32 X 1/8" AAC7DP-.5 CYLINDER,AIR,DA AAFBP-11C BRKT,PIVOT,1/4 BORE AAFCT-7 CLEVIS,AIR CYL, 1/4-28 AAFP18 MUFFLER,1/8 NPT, BRONZ NNJ1/4-28 1/4-28 HEX JAM NUT...

  • Page 133: 1335426 Puller Lift Assembly

    Technical Manual & Parts Lists 1335426 Puller Lift Assembly AAC Drawing Number 1335426 Rev1 QTY PART # DESCRIPTION 132556-148D BRACKET PULLER LIFT-HD AAC6DX-1.5 CYLINDER,AIR,DA,PIVOT AAFBP-11C BRKT,PIVOT,1/4 BORE AAFCT-11 CLEVIS, CYL, 5/16-24 ,1/4 AAFP18 MUFFLER,1/8 NPT, BRONZ AAQME-5-8 QUICK MALE ELBOW CCCL5F CLAMP COLLAR,5/16"...
  • Page 134 Technical Manual & Parts Lists...

  • Page 135: 1335293 Stand / Motor Assembly-Mg200

    Technical Manual & Parts Lists 1335293 Stand / Motor Assembly-MG200 AAC Drawing Number 1335293 Rev14 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION 0211-702A CABLE,POSITION SENSOR AP-28-800Y1 BOX,STEPPER,H.S. (X5) 1278-6602A TOUCH SWITCH ASSEMBLY EE37F3312 CORD,POWER,BELDEN TYPE 1278-6689B BRACKET, EYE MOUNT 3FT EEDC2X2 COVER,WIRE DUCT 1278-6689D...
  • Page 136 Technical Manual & Parts Lists...

  • Page 137: 1335294 Ruffler Assembly

    Technical Manual & Parts Lists 1335294 Ruffler Assembly AAC Drawing Number 1335294 Rev10 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION 11200A BUMPER 5/16-24 11* MM130-10A1 TAPE, UHMW, 1" W X .01 TK 1278-7055D PROX SWITCH W/PLUG,12" MM8FM JOINT,UNIVERSAL,MOD 1335218 ADJ ANGLE-RUFFLER SUPP...
  • Page 138 Technical Manual & Parts Lists...

  • Page 139: 1335298 Ruffler Mount Assembly, Mg2002P

    Technical Manual & Parts Lists 1335298 Ruffler Mount Assembly, MG2002P AAC Drawing Number 1335298 Rev3 QTY PART # DESCRIPTION 1278-7055D PROX SWITCH W/PLUG,12" 1335314 RUFFLER MTG BRKT WELDT 1335315 BASE PLATE, RUFFLER MTG 1335325 MTG. BRKT. SENSOR 1335330 MTG. BRKT. LOCK PIN CYL. 1335334 CYL.
  • Page 140 Technical Manual & Parts Lists...

  • Page 141: 1335307 Ruffler Main Assembly

    Technical Manual & Parts Lists 1335307 Ruffler Main Assembly AAC Drawing Number 1335307 Rev6 QTY PART # DESCRIPTION 26151 TOOL TRAY, 9 X 3 1335181 STRIPPER BLADE ASY,1335MG 1335293 STAND / MOTOR ASSY- MG200 Page 128 Page 1335294 RUFFLER ASSEMBLY Page 130...
  • Page 142 Technical Manual & Parts Lists...

  • Page 143: 1335332 Ruffler Cylinder Lift Assembly

    Technical Manual & Parts Lists 1335332 Ruffler Cylinder Lift Assembly AAC Drawing Number 1335332 Rev8 QTY PART # DESCRIPTION 1335223 BASE MTG PLT, FOLDER 1335224 BASE MTG PLATE 1335226 MTG PLT LH- RAIL 1335227 SUPPORT-SLIDE, LH SIDE 1335228 SUPPORT, RH 1335229 MTG PLT RH- RAIL 1335230...
  • Page 144 Technical Manual & Parts Lists...

  • Page 145: 1335427 Sew Head Assembly

    1335427 Sew Head Assembly AAC Drawing Number 1335427 Rev5 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION 1278-6364 DISC, TAPE MOUNTING M1Y88-003 FOOT, SN, 1335MG *1 1325-013 THREAD GUIDE,MOD. M2Y88-002 FEED DOG,1N,HEAVY DUTY 1335-109 ADAPTER,DRAIN PLUG MM4554K11 PLUG, 1/8" PIPE 268602...
  • Page 146 Technical Manual & Parts Lists...

  • Page 147: 1335762 Sew Head Assembly

    DESCRIPTION NO. QTY PART # DESCRIPTION 1278-6364 DISC, TAPE MOUNTING AAV41-P HUMPHREY VALVE,4 WAY 1325-013 THREAD GUIDE,MODIFIED M1Y88-003 FOOT, SN, 1335MG 1335-109 ADAPTER,DRAIN PLUG M2Y88-002 FEED DOG,1N,HEAVY DUTY 1335208 FOOT LIFT ADJ - MOD NNH1/4-20 1/4-20 HEX NUT 1335209 FOOT LIFT PIN...
  • Page 148 Technical Manual & Parts Lists...

  • Page 149: 1335428 Puller Modification, Yamato 1804

    Technical Manual & Parts Lists 1335428 Puller Modification, Yamato 1804 AAC Drawing Number 1335428 Rev8 QTY PART # DESCRIPTION 1335394 PULLER,MOD,MG2002/VM1804 1335395 YOKE, PULLER-HD 1335397 PULLER ROLLER, HD, 2002MG 1335399 SHAFT, PULLER, HD 1335400 WASHER, HUB CAP, 1/4 1335414 DRIVE ARM, PULLER,HD 1335928 STRIPPER PLATE 1335929...
  • Page 150 Technical Manual & Parts Lists...

  • Page 151: 1335750 Puller Assembly, Intermit. Hd

    Technical Manual & Parts Lists 1335750 Puller Assembly, Intermit. HD AAC Drawing Number 1335750 Rev3 QTY PART # DESCRIPTION 3517 WASHER,THRUST,BRONZE 1335394 PULLER,MOD,MG2002/VM1804 1335743 PULLER ROLLER ASSEMBLY 1335747 SHAFT, PULLER, HD 1335748 SHAFT, PULLER, IDLER 1335749 YOKE, PULLER-HD 1335751 DRIVE ARM, PULLER,HD 1335754 CLUTCH HOUSING, PULLER 1335756...

  • Page 152: 1335716 Pneumatic Shelf

    Technical Manual & Parts Lists 1335716 Pneumatic Shelf AAC Drawing Number 1335716 Rev3 QTY PART # DESCRIPTION AAQME-5-8 QUICK MALE ELBOW AAVS125 SHUTTLE VALVE,1/8"PORT SSSC80064 #6-32 X 1 SOC CAP WWFS6 WASHER, FLAT, #6 1335715 BRACKET, PNEUMATIC AA198-503 0-30PSI AIR GAGE 1/8NPT AA198-5102 REGULATOR W/GAUGE &...

  • Page 153: 1335M-1005 Sit-Down Treadle Assembly

    Technical Manual & Parts Lists 1335M-1005 Sit-Down Treadle Assembly AAC Drawing Number 192857C Rev 1 QTY PART # DESCRIPTION 1335M-105 Treadle Brkt 160929A Show Stand Brkt K-100-30M Treadle Brace K-340 Threadle W/BRKT NNK1/4-20 Kep Nut NNC1/4-20 Cap Nut SSHC01048 Screw, Hex Cap WWFS1/4 Flat Washer...
  • Page 154 Technical Manual & Parts Lists...

  • Page 155: 1335740 Roll Holder Assembly

    Technical Manual & Parts Lists 1335740 Roll Holder Assembly AAC Drawing Number 1335740 Rev2 QTY PART # DESCRIPTION 1325-346 HOLDER,ROD,1/2 D,SLOT MNT 1335-825 DRAG TENSION ASSEMBLY 1335179 ROD,BENT,CRS,1/2 OD 1335196 MOUNT, BEARING 1335197 FRAME, ROLL HOLDER 1335366 STOP, HOLDER UP 1335448 ROD, ROLL, 31.5"...

  • Page 156: 1335M-2300B Pivot Assembly

    Technical Manual & Parts Lists 1335M-2300B Pivot Assembly AAC Drawing Number 192985C Rev3 QTY PART # DESCRIPTION 1335M-2004A Pivot Arm 1335M-2007 Pivot Block 1335M-2009 Drive Link 1335M-2010 Pivot Block 1335M-2011 Pivot Shaft 1335M-2012 Side Link 1335M-2013 Link Shaft 1335M-2014 Link Shaft 1335M-2015 Link Yoke...

  • Page 157: 1335M-430E Guide Roller Assembly

    Technical Manual & Parts Lists 1335M-430E Guide Roller Assembly AAC Drawing Number 9000912 Rev1 QTY PART # DESCRIPTION 1335-319B ARM, 1/2" ROD CLAMP 1335-814E ROLLER ASSY, 16 L, 2OD, . 1335-835E ROD,BENT90DEG,1/2CRS,4X38 1335-838E ROLLER ASSY W/FLANGE 28201 CROSS BLOCK, LARGE 28201A CROSS BLOCK, LARGE 780-100...
  • Page 158 Technical Manual & Parts Lists...

  • Page 159: 1335Mf-500 Control Box Assembly

    Technical Manual & Parts Lists 1335MF-500 Control Box Assembly AAC Drawing Number 192909B Rev11 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION MM40450010 Slide Lock 1335M-501 Control Box Cover MMSLD-ECH Bumper 1981A-511 Ground Wire FFC5S1 End Cap, Pair EE7F3312 CEE Power Cord 1987149F3...
  • Page 160 Technical Manual & Parts Lists...

  • Page 161: 1335Mg-10 Sewing Head Assembly

    Technical Manual & Parts Lists 1335MG-10 Sewing Head Assembly AAC Drawing Number 192971C Rev6 QTY PART # DESCRIPTION SYAM-MG2002P Sewing Head 1335-109 Drain Plug Adapt. AAF2305-2 Needle Valve AAF4568K116 Pipe Nipple AAF23400-2 Brass "L" 1325-013 Thread Guide SSM200172 Loop Deflector Screw...
  • Page 162 Technical Manual & Parts Lists...

  • Page 163: 1959-700B Table And Frame Assembly

    Technical Manual & Parts Lists 1959-700B Table and Frame Assembly ACC Drawing Number 192981C Rev4 QTY PART # DESCRIPTION 1330222 Table Top K-4D Stand 1959-120 MNT BRKT WWF4 Washer NNJ1/4-20 Jam Nut 4000D2-500 Control Box 4058-2 Motor PPM616 Pulley SSZH#10192 Sheet Metal Screw K-233 Elec.
  • Page 164 Technical Manual & Parts Lists...

  • Page 165: 1959-800 Roll Holder Assembly

    Technical Manual & Parts Lists 1959-800 Roll Holder Assembly AAC Drawing Number 192739C Rev5 QTY PART # DESCRIPTION  1 NNH1/2-13 Hex Nut 1959-802 Rod,St,3/8x28 A-4-024 SSHC01160 Screw, Hex Cap WWL1/4 Lock Washer WWFS1/4 Flat Washer 1959-801 Rod, 1/2 x 28 1959-105 Tube Assy 1959-106...

  • Page 166: 1335181 Stripper Blade Assembly

    Technical Manual & Parts Lists 1335181 Stripper Blade Assembly AAC Drawing Number 1335181 Rev1 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION 1335154 PIVOT ROD, STRIP BLADE SSM200246 SCREW,SHLDR,SLT.248X.437L 1335239 STOP BLK-STRIPPER BLADE SSMBK13 KNOB,BLACK PLASTIC 1335305 MOUNT PLT, STRIPPER BLA SSSC01024 1/4-20 X 3/8 SOC CAP SC 1335475...

  • Page 167: A-2216L5/16 Euro. Folder W/ Flange

    Technical Manual & Parts Lists A-2216L5/16 Euro. Folder w/ Flange AAC Drawing Number 192823C Rev3 QTY PART # DESCRIPTION NNW10-32 Wing Nut A-2216D22 T-Nut A-2216D53 Spacer, 1/4 A-2216G29 Spacer, 5/16 A-2216L02 Folder Plate A-2216L04 Folder Top A-2216D34 Guide, 5/16 NNK10-32 Kep Nut SSBC98064 Screw, Button Cap...

  • Page 168: A-2216M5/16 Continental Book Folder

    Technical Manual & Parts Lists A-2216M5/16 Continental Book Folder AAC Drawing Number 192824C Rev6 QTY PART # DESCRIPTION NNW10-32 Wing Nut A-2216D22 T-Nut A-2216G29 Spacer, 5/16 A-2216M02 Folder Plate A-2216M04 Folder Top A-2216D34 Guide, 5/16 NNK10-32 Kep Nut SSBC98064 Screw, Button Cap SSBC98048 Screw, Button Cap WWFS10...

  • Page 169: 33008708 Ball Bearing Disc Assembly

    Technical Manual & Parts Lists 33008708 Ball Bearing Disc Assembly AAC Drawing Number 9000904 Rev 4 QTY PART # DESCRIPTION 33008604 CONE, SPOOL 33008602 HUB, FLANGE 3/4 BORE SEE CHART SEE CHART 33008601 HUB, CENTER, 3/4 SHAFT BB23216-88 BEARING,BALL,1.0B RRLC026B1 SPRING,COMP .026X.18X.25 JJ012 3/16 DIA.

  • Page 170: 1959-Pd Pneumatic Diagram

    Technical Manual & Parts Lists 1959-PD Pneumatic Diagram 125492C...

  • Page 171: 1335Mf-Pd Pneumatic Diagram

    Technical Manual & Parts Lists 1335MF-PD Pneumatic Diagram 125860A...

  • Page 172: 1334S-02Wd Wiring Diagram

    Technical Manual & Parts Lists 1334S-02WD Wiring Diagram 125690C...

  • Page 173: 1335Mf-Wd Wiring Diagram

    Technical Manual & Parts Lists 1335MF-WD Wiring Diagram 125665C...

  • Page 174: 1335Mfc-34Wd2 Wiring Diagram

    Technical Manual & Parts Lists 1335MFC-34WD2 Wiring Diagram 125712C...

  • Page 175: 1335Mgr-Wd Wiring Diagram

    Technical Manual & Parts Lists 1335MGR-WD Wiring Diagram 125310B...
  • Page 176 Atlanta Attachment Company (AAC) Statement of Warranty Manufactured Products Atlanta Attachment Company warrants manufactured products to be free from defects in material and workmanship for a period of eight hundred (800) hours of operation or one hundred (100) days whichever comes first. Atlanta Attachment Company warrants all electrical components of the Serial Bus System to be free from defects in material or workmanship for a period of thirty six (36) months.
  • Page 177 Declaración de Garantia Productos Manufacturados Atlanta Attachment Company garantiza que los productos de fabricación son libres de defectos de mate-rial y de mano de obra durante un periodo de ochocientos (800) horas de operación o cien (100) días cual llegue primero.
  • Page 178 Atlanta Attachment Company 362 Industrial Park Drive Lawrenceville, GA 30046 770-963-7369 www.atlatt.com Printed in the USA...

Table of Contents
