Revision 9.1
Updated May 12, 2016

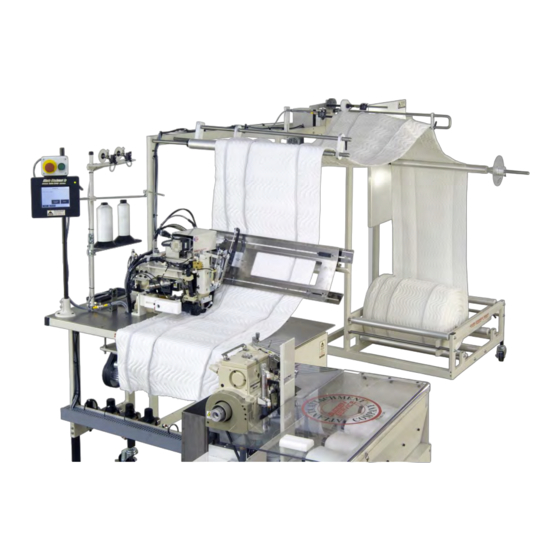

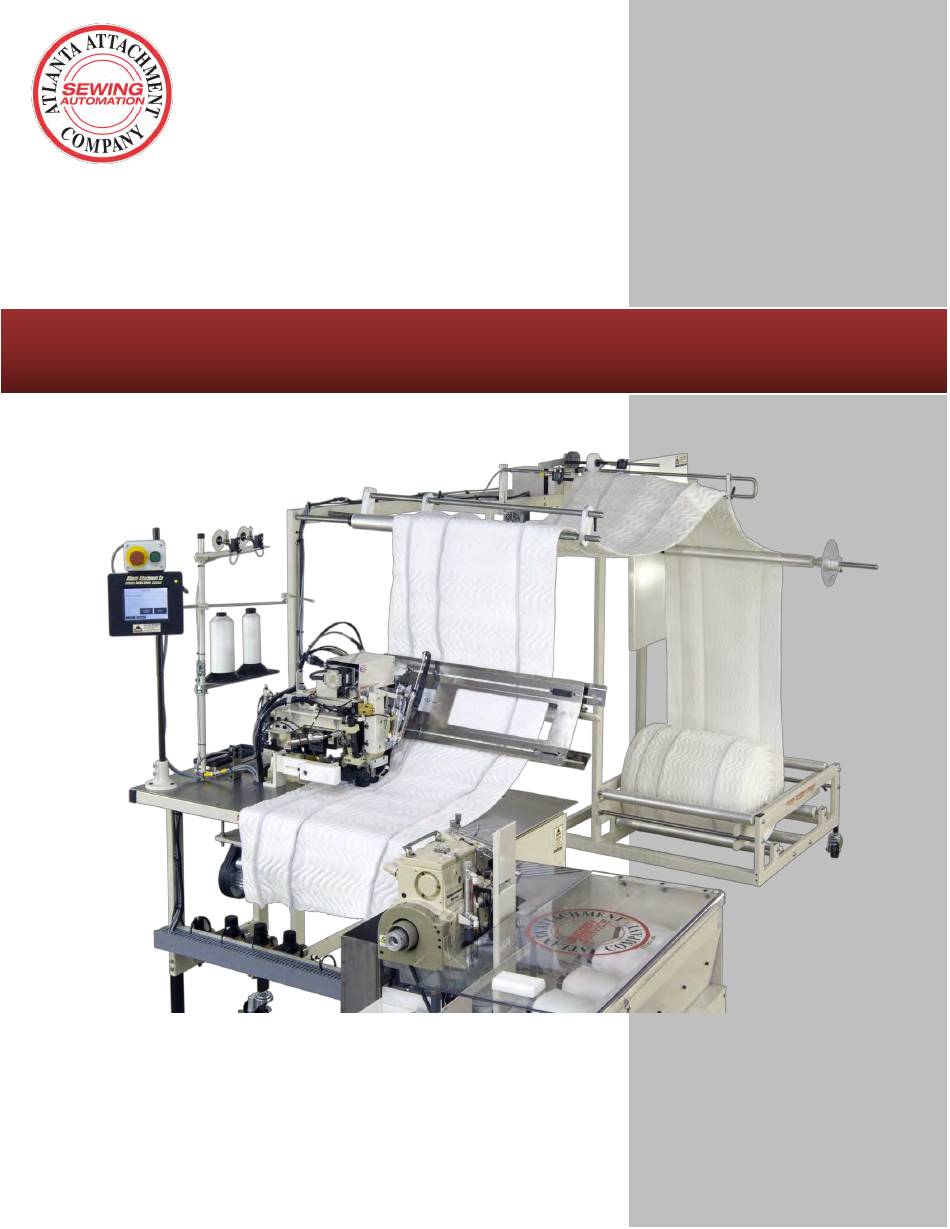

Technical Manual & Parts Lists
Atlanta Attachment Company
362 Industrial Park Drive
Lawrenceville, GA 30046
770-963-7369 • www.atlatt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1335MFB and is the answer not in the manual?

Questions and answers

Related Manuals for Atlanta Attachment Company 1335MFB

Summary of Contents for Atlanta Attachment Company 1335MFB

  • Page 1 1335MFB Model Revision 9.1 Updated May 12, 2016 Technical Manual & Parts Lists Atlanta Attachment Company 362 Industrial Park Drive Lawrenceville, GA 30046 770-963-7369 • www.atlatt.com...
  • Page 3 Attachment Company. In addition to any confidentiality and non-disclosure obligations that currently exist between you and Atlanta Attachment Company, your use of these materials serves as an acknowledgment of the confidential and proprietary nature of these materials and your duty not to make any unauthorized use or disclosure of these materials.

  • Page 4: Table Of Contents

    Technical Manual & Parts Lists Contents Important Safety Instruction ........................1 Liability ..............................2 Safety Equipment on the Machines ......................3 Protective Eyewear ............................. 4 Important Notices............................5 Maintenance ..............................7 Repair ................................8 A Word to the End User..........................9 Safety Precautions ............................
  • Page 5 A-2216W56 Folder Assembly ........................80 1335378 Rotary Knife Assembly, Optional....................82 33008708 Ball Bearing Disc Assembly ....................83 3200PME Marking Module, Miter ......................84 1335MFB18-PD Pneumatic Diagram ....................... 85 1335MFB-PD Pneumatic Diagram ......................86 1335MFB18-WD Wiring Diagram ......................87 1335MFB-WD Wiring Diagram ....................... 88...

  • Page 6: Important Safety Instruction

    Mandatory Information All persons operating and/or working on the 1335MFB Border Frame Ruffler should read and understand all parts of the Safety Instructions. This applies, in particular, for persons who only operate and/or work on the unit occasionally (e.g. for maintenance and repair). Persons who have difficulty reading must receive particularly thorough instruction.

  • Page 7: Liability

    Technical Manual & Parts Lists Liability The machine should only be operated when in perfect working order, with due regard for safety and the potential dangers, as well as in accordance with the Instruction Material. Faults and malfunctions capable of impairing safety should be remedied immediately. We cannot accept any liability for personal injury or property damage due to operator errors or non-compliance with the safety instructions contained in this booklet.

  • Page 8: Safety Equipment On The Machines

    Technical Manual & Parts Lists A Word to the Operator The greatest danger inherent in our machines: is that of fingers, hands or loose clothing being drawn into a machine by live, coasting or rotating tools or assemblies or of being cut by sharp tools or burned by hot elements. LWAYS BE CONSCIOUS OF THESE DANGERS Safety Equipment on the Machines All machines are delivered with safety equipment, which shall not be removed or...

  • Page 9: Protective Eyewear

    Technical Manual & Parts Lists Protective Eyewear Protective eyewear that has been tested by the local authorities should be worn whenever there is a possibility of loose or flying objects or particles such as when cleaning the machine with compressed air. Tools Always count the number of tools in your possession before starting work on the machine.

  • Page 10: Important Notices

    Technical Manual & Parts Lists Important Notices Reporting and Fighting Fires Read the instructions posted in the factory with regard to reporting fires and the emergency exits. Make sure you know exactly where the fire extinguishers and sprinkler systems are located and how they are operated.
  • Page 11 Technical Manual & Parts Lists - Kinetic energy - Note that some motors or spindles, for example, may continue to run or coast run on after being switched off. - Potential energy - Individual assemblies may need to be secured if necessary for repair work. Delivery of the Machine/Packaging Note any markings on the packaging, such as weights, lifting points and special information.

  • Page 12: Maintenance

    Technical Manual & Parts Lists Protect against influences from the surroundings: no structure-borne vibrations, no grinding dust, or chemical vapors. Protect against unauthorized access. Ensure that the machine and accessories are set up in a stable position. Ensure easy access for operation and maintenance (Instruction Manual and layout diagram); also verify that the floor is strong enough to carry the weight of the machine.

  • Page 13: Repair

    Technical Manual & Parts Lists Repair Replacement Parts We cannot accept any liability whatsoever for damage due to the use of parts made by other manufacturers or due to unqualified repair or modification of the machine. Repair, Electrical The power supply must be switched off (master switch off) and secured so that it cannot be switched on again inadvertently before starting any work on live parts.

  • Page 14: A Word To The End User

    Technical Manual & Parts Lists A Word to the End User The end user has sole responsibility to enforce the use of safety procedures and guards on the machine. Any other safety devices or procedures due to local regulations should be should be retrofitted in accordance to these regulations and/or the EC Directive on the safety of machines.

  • Page 15: General Machine Data

    Technical Manual & Parts Lists General Machine Data Electrical & Pneumatic Specifications Electrical: 220 VAC, 5amp, 50/60 Hz Single Phase Pneumatic: 70-80 PSI, 2 SCFM avg. Sewing Head: Yamato VM1804P Sewing Speed: 3500 RPM Needle (Standard): SN62X5721 Stitch Density: 6 SPI Installation &...

  • Page 16: Operating Instructions

    Technical Manual & Parts Lists Operating Instructions Touch Screen Operation The graphics images presented on the touch screen show "3-dimensional" buttons, which may be pressed to access other screens, change counters and timers, or actuate hardware. Areas lacking the "3- dimensional" border contain information only. Counters are identified with the "+"...
  • Page 17 Technical Manual & Parts Lists Press EXIT to lower the foot, etc., and return to the main screen. The HOME button takes you to the main screen without resetting the machine. Back on the main screen press the SETUP button to access the setup screen: This allows setup of the ruffle quantity and stitches, access to SECURITY, SYSTEM INFORMATION, ADVANCED SETUP, and the SHOW ALL SETTINGS matrix screen.
  • Page 18 Technical Manual & Parts Lists Press the top arrow buttons to access the second SETUP screen in BORDER mode for enabling or disabling the ruffler and markers and accessing the ADVANCED SETUP screens. Note: when a button has a white background the function is on or enabled. A dark background indicates off or disabled.
  • Page 19 Technical Manual & Parts Lists This screen has an additional button for adjusting the PANEL STOP COUNT that controls where the panel stops for turning the corners and a ROUND CORNER button for selecting the corner mode. When the ROUND CORNER button has a WHITE background the machine is in the ROUND CORNER mode.
  • Page 20 Technical Manual & Parts Lists Press EXIT to return to SETUP screen. The ADVANCED SETUP button accesses the advanced machine settings and functions not normally accessible by the operator. After power on or a master reset, a pass code must be entered to access these screens.
  • Page 21 Technical Manual & Parts Lists Pressing the top arrows will display the Advanced Setup 2 page. Ruffling Speed is the sewing speed while ruffling. Seam Allowance is the stitch margin for closing the border. Marker time is the on time of the markers. Unwinder Time is the minimum run time of the unwinder motor after the loop eye activates the motor.
  • Page 22 Technical Manual & Parts Lists Press MANUAL to access the manual run page and enable the foot switches for manual sewing and foot lift functions. You can turn on the ruffle cycle for testing and access the advanced manual pages for testing inputs and outputs.
  • Page 23 Technical Manual & Parts Lists Press the EDIT NEW ORDER button to change to a different size border and edit the size settings. Use the Border Quantity button to set the number of borders to be run consecutively without stopping. Press SELECT NEW STYLE to change sizes. Select the desired style and the machine will return to the EDIT ORDER screen.
  • Page 24 Technical Manual & Parts Lists Press EDIT STYLES to input or change the styles menu. The top arrows take you to additional screens. Select the button for the style you wish to edit or create. Example: select style "5":...
  • Page 25 Technical Manual & Parts Lists The EDIT STYLE 5 page is displayed. To change or create a name press the NAME button. The NAME entry screen appears: The left and right arrows move the cursor one character. The arrows with the vertical bar Move to the start or end of the text.

  • Page 26: Machine Operation

    Technical Manual & Parts Lists Other screens display whenever there is a machine error or other condition that prohibits the operation of the machine. Simply follow the instruction on the screens to resolve the problem. Machine Operation Fig. 1 Turn on the main power circuit breaker (item 1) (with lockout) located inside the control cabinet.

  • Page 27: Stepper Control Box

    Technical Manual & Parts Lists Stepper Control Box There is a stepping motor box located under the table. The Ruffler box has three thumbwheels on the Fig. 2 front which are set to synchronize the Ruffler to the sewing head. The number is proportional to the stitch length and is not affected by sewing speed.

  • Page 28: Loading And Adjusting The Folder

    Technical Manual & Parts Lists piece borders). When making continental foundations, the good side will face the operator. Loading and Adjusting the Folder Activate the folder up switch to raise the folder. Feed the border through the top portion of the folder; heal the treadle to raise the measuring wheel, feed the border through the bottom of the folder and under the presser foot and puller.

  • Page 29: Adjusting The Corner Ruffles

    Technical Manual & Parts Lists foot. The machine will pause momentarily as the ruffler engages and then continue to sew straight as it makes the ruffles. After the last ruffle is finished on the first side of the corner the machine will stop with the presser foot lifted. Turn the panel 90 degrees. Release and depress the treadle.

  • Page 30: Initial Set-Up Of Border Mode

    Technical Manual & Parts Lists Initial Set-Up of Border Mode: Initial set-up of border mode settings should be done in the following order: 1. Using a Twin border style, set the border length and corner position. 2. Compensate the machine so it is measuring correctly. 3.

  • Page 31: General Machine Maintenance

    Technical Manual & Parts Lists Unwinder Assembly The Unwinder is belt driven from a right angle gear motor. The motor and bearings are permanently lubricated and require no regular maintenance. Check the belt tension periodically and adjust if necessary. Check the gear pulley and bearing set screws for tightness.

  • Page 32: Parameter Settings For Efka Controller

    Technical Manual & Parts Lists Parameter Settings for Efka Controller...

  • Page 33: 1335M Folder Spacer Reference Chart

    Technical Manual & Parts Lists 1335M Folder Spacer Reference Chart...
  • Page 34 Technical Manual & Parts Lists...

  • Page 35: Assembly Drawings & Parts Lists

    Company. In addition to any confidentiality and non-disclosure obligations that currently exist between you and Atlanta Attachment Company, your use of these materials serves as an acknowledgment of the confidential and proprietary nature of these materials and your duty not to make any unauthorized use or...
  • Page 36 Technical Manual & Parts Lists...

  • Page 37: 11335Mfb-18 Border Frame Ruffler

    Technical Manual & Parts Lists 11335MFB-18 Border Frame Ruffler AAC Drawing Number 9000017 Rev2 QTY PART # DESCRIPTION Page 58 1335530 BASE CONSOLE, SBUS Page 60 Page 1335575 ROLL HOLDER ASBLY Page Page 85 AR 1335MFB18-PD PNEUMATIC DIAGRAM Page Page 87 AR 1335MFB18-WD WIRING DIAGRAM Page...
  • Page 38 Technical Manual & Parts Lists...

  • Page 39: 11335Mfba-Uw Border Frame Ruffler

    UNWINDER ASSY, HEAVY DUTY Page Page 60 1335575 ROLL HOLDER ASBLY Page Page 74 1335779 BASE CONSOLE, SBUS Page Page 86 AR 1335MFB-PD PNEUMATIC DIAGRAM Page Page 88 AR 1335MFB-WD WIRING DIAGRAM Page Page 78 3200PMD MARKING MODULE,EXT MOUNT Page...
  • Page 40 Technical Manual & Parts Lists...

  • Page 41: 1335145 Unwinder Assembly

    Technical Manual & Parts Lists 1335145 Unwinder Assembly AAC Drawing Number 1335145 Rev12 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION 1325-346 HOLDER,ROD,1/2 D,SLOT MNT EEDF1X1 DUCT,WIRE,1X1 1334383 ROD, SS 1/2 OD X 18.0 LG FFQM42VN6A EYE,ELECTRIC,10-30VDC 1335108 DRIVE ROLLER ASSEMBLY GG157L050 BELT,GEAR,3/8P,1/2W...
  • Page 42 Technical Manual & Parts Lists...

  • Page 43: 1335258 Ruffler Assembly

    Technical Manual & Parts Lists 1335258 Ruffler Assembly AAC Drawing Number 1335258 Rev13 QTY PART # DESCRIPTION QTY PART # DESCRIPTION 11200A BUMPER 5/16-24 MM8FM JOINT,UNIVERSAL,MOD 1278-7055D PROX SWITCH W/PLUG,12" NNE1/2-13 NUT, ELASTIC 1/2-13 1335213 FOOT LIFT BRKT NNH10-32 #10-32 HEX NUT 1335217 SUPPORT BRKT-RUFFLER NNH2-56...
  • Page 44 Technical Manual & Parts Lists...

  • Page 45: 1335260 Ruffler Mount Angle Assembly

    Technical Manual & Parts Lists 1335260 Ruffler Mount Angle Assembly AAC Drawing Number 1335260 Rev2 QTY PART # DESCRIPTION 1278-7055D PROX SWITCH W/PLUG,12" 1335214 RUFFLER MTG BRKT - 1804A 1335220 BASE PLATE, RUFFLER MTG 1335M-2017 ROD, END 1335M-2027A CYL. MOUNT 1335M-2034 PLATE, NUT #2-56 1335M-3008A...
  • Page 46 Technical Manual & Parts Lists...

  • Page 47: 1335271 Foot Pressure Assembly

    Technical Manual & Parts Lists 1335271 Foot Pressure Assembly AAC Drawing Number 1335271 Rev2 QTY PART # DESCRIPTION 1335207 MTG BRKT, FOOT LIFT 1335M-108 LEVER AA198RR508 FLOW CONTROL,5/32 X 1/8" AAC7DP-.5 CYLINDER,AIR,DA AAFBP-11C BRKT,PIVOT,1/4 BORE AAFCT-7 CLEVIS,AIR CYL, 1/4-28 AAFP18 MUFFLER,1/8 NPT, BRONZ NNJ1/4-28 1/4-28 HEX JAM NUT...
  • Page 48 Technical Manual & Parts Lists...

  • Page 49: 1335332 Ruffler Cylinder Lift Assembly

    Technical Manual & Parts Lists 1335332 Ruffler Cylinder Lift Assembly AAC Drawing Number 1335332 Rev8 QTY PART # DESCRIPTION 1335223 BASE MTG PLT, FOLDER 1335224 BASE MTG PLATE 1335226 MTG PLT LH- RAIL 1335227 SUPPORT-SLIDE, LH SIDE 1335228 SUPPORT, RH 1335229 MTG PLT RH- RAIL 1335230...
  • Page 50 Technical Manual & Parts Lists...

  • Page 51: 1335370 Control Box Assembly

    AAC Drawing Number 1335370 Rev9 NO QTY PART # DESCRIPTION *1 1335370CAB CABLE PACKAGE 1335372 CONTROL BOX, SBUS *1 1335MFB-WD WI RI NG DI AGRAM 40-320 AC POWER DI SCONNECT ASSY 4080-110 MODULE,QUAD I NPUT 4080-120 MODULE,DUAL OPTO-I SO 4080-130...
  • Page 52 Technical Manual & Parts Lists...

  • Page 53: 1335425 Sew Head Assembly

    Technical Manual & Parts Lists 1335425 Sew Head Assembly AAC Drawing Number 1335425 Rev4 QTY PART # DESCRIPTION 1278-6364 DISC, TAPE MOUNTING 1335201 RUFFLER MTG BRKT-YA-1804 1335208 FOOT LIFT ADJ - MOD 1335209 FOOT LIFT PIN 1335233 NUT PLATE Page 42 1335271 FOOT PRESSURE ASSY Page...
  • Page 54 Technical Manual & Parts Lists...

  • Page 55: 1335426 Puller Lift Assembly

    Technical Manual & Parts Lists 1335426 Puller Lift Assembly AAC Drawing Number 1335426 Rev1 QTY PART # DESCRIPTION 132556-148D BRACKET PULLER LIFT-HD AAC6DX-1.5 CYLINDER,AIR,DA,PIVOT AAFBP-11C BRKT,PIVOT,1/4 BORE AAFCT-11 CLEVIS, CYL, 5/16-24 ,1/4 AAFP18 MUFFLER,1/8 NPT, BRONZ AAQME-5-8 QUICK MALE ELBOW CCCL5F CLAMP COLLAR,5/16"...
  • Page 56 Technical Manual & Parts Lists...

  • Page 57: 1335428 Puller Modification Assembly

    Technical Manual & Parts Lists 1335428 Puller Modification Assembly AAC Drawing Number 1335428 Rev8 QTY. PART# DESCRIPTION 1335394 PULLER,MOD,MG2002/VM1804 1335395 YOKE, PULLER-HD 1335397 PULLER ROLLER, HD, 2002MG 1335399 SHAFT, PULLER, HD 1335400 WASHER, HUB CAP, 1/4 1335414 DRIVE ARM, PULLER,HD 1335928 STRIPPER PLATE 1335929...
  • Page 58 Technical Manual & Parts Lists...

  • Page 59: 1335463 Stand & Motor Assembly

    STRIPPER BLADE ASSY SSFC98032 #10-32 X 1/2 FLAT ALLEN Page AR 1335MF-LAB LABELS SSHC01032 1/4-20 X 1/2 HEX HEAD Page 86 AR 1335MFB-PD DIAGRAM, PNEUMATIC SSHC01048 1/4-20 X 3/4 HEX HEAD Page 88 Page AR 1335MFB-WD DIAGRAM, WIRING SSHC10048 5/16-18 X 3/4 HEX HEAD...
  • Page 60 Technical Manual & Parts Lists...

  • Page 61: 1335505 Stripper Blade Assembly

    Technical Manual & Parts Lists 1335505 Stripper Blade Assembly AAC Drawing Number 1335505 Rev3 QTY PART # DESCRIPTION 1335474 PIVOT ROD, STRIP BLADE 1335475 STRIPPER BLADE-1804P 1335476 EDGE GUIDE, STRIP BLADE 1335489 PIVOT WEARPLATE 1335493 BLOCK, SWINGOUT PLATE 1335506 PIVOT BLOCK, STRIPPER BLA 1335508 PIVOT PLATE WELD'T 1335732...
  • Page 62 Technical Manual & Parts Lists...

  • Page 63: 1335530 Base Console Assembly

    Technical Manual & Parts Lists 1335530 Base Console Assembly AAC Drawing Number 1335530 Rev0 QTY PART # DESCRIPTION 0411-069D BRKT, THREAD BRK DETECTIO 0411-070 CLAMP, SENSOR BRACKET 26151 TOOL TRAY, 1X3.5X9 Page 38 1335258 RUFFLER ASSY,YAM VM1804P Page Page 48 1335425 SEW HEAD SUBASSEMBLY Page...
  • Page 64 Technical Manual & Parts Lists...

  • Page 65: 1335575 Roll Holder Assembly

    Technical Manual & Parts Lists 1335575 Roll Holder Assembly AAC Drawing Number 1335575 Rev3 QTY. PART# DESCRIPTION 1325-346A HOLDER, ROD, 3/4", SLOT 1335598 ROD, SS BENT, 90 DEG 265155A HOLDER, EYE, 1/2 BORE 28201 BLOCK,CROSS,(LARGE) 28201B LARGE PIVOT BLOCK 786B12-2.2 DISC &...
  • Page 66 Technical Manual & Parts Lists...

  • Page 67: 1335659 Guide Roller Assembly

    Technical Manual & Parts Lists 1335659 Guide Roller Assembly AAC Drawing Number 1335659 Rev2 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION 1278-6310 CYLINDER MOUNT NNE10-32 NUT,ELASTIC LOCK 1335161 ROLLER KNURLT, .5W NNH1/4-20 1/4-20 HEX NUT 1335164 SHAFT, FLATTED NNJ1/4-28 1/4-28 HEX JAM NUT 1335167...
  • Page 68 Technical Manual & Parts Lists...

  • Page 69: 1335674 Encoder Assembly

    Technical Manual & Parts Lists 1335674 Encoder Assembly AAC Drawing Number 1335674 Rev 3 QTY PART # DESCRIPTION 1335637 MOUNT, CYL CLEVIS 1335675 BRACKET, SIDE, ENCODER 1335676 COVER, ENCODER, 8" CAP. 1335M-2502 MOUNT,BASE1335M-2500 1335M-2503 PLATE,TENSION 1981A-271 WHEEL,ENCODER 1981A-272 CABLE,PIGTAIL,OPTICAL AA198RR508 FLOW CONTROL,5/32 X 1/8"...
  • Page 70 Technical Manual & Parts Lists...

  • Page 71: 1335690 Cylinder Lift Assembly

    Technical Manual & Parts Lists 1335690 Cylinder Lift Assembly AAC Drawing Number 1335690 Rev2 QTY PART # DESCRIPTION 1335223 BASE MTG PLT, FOLDER 1335224 BASE MTG PLATE 1335227 SUPPORT-SLIDE, LH SIDE 1335228 SUPPORT, RH 1335229 MTG PLT RH- RAIL 1335335 MTG PLT- HEAVY DUTY 1335336 CYL.
  • Page 72 Technical Manual & Parts Lists...

  • Page 73: 1335695 Ruffler Assembly

    Technical Manual & Parts Lists 1335695 Ruffler Assembly AAC Drawing Number 1335695 Rev1 QTY PART # DESCRIPTION QTY PART # DESCRIPTION 11200A BUMPER 5/16-24 CCCL8F CLAMP COLLAR- 1/2 1278-7055D PROX SWITCH W/PLUG,12" MM8FM JOINT,UNIVERSAL,MOD 1335213 FOOT LIFT BRKT NNE1/2-13 NUT, ELASTIC 1/2-13 1335217 SUPPORT BRKT-RUFFLER NNH10-32...
  • Page 74 Technical Manual & Parts Lists...

  • Page 75: 1335750 Puller Assembly

    Technical Manual & Parts Lists 1335750 Puller Assembly AAC Drawing Number 1335750 Rev3 QTY PART # DESCRIPTION 3517 WASHER,THRUST,BRONZE 1335394 PULLER,MOD,MG2002/VM1804 1335743 PULLER ROLLER ASSEMBLY 1335747 SHAFT, PULLER, HD 1335748 SHAFT, PULLER, IDLER 1335749 YOKE, PULLER-HD 1335751 DRIVE ARM, PULLER,HD 1335754 CLUTCH HOUSING, PULLER 1335756...
  • Page 76 Technical Manual & Parts Lists...

  • Page 77: 1335778 Sew Head Assembly

    Technical Manual & Parts Lists 1335778 Sew Head Assembly AAC Drawing Number 1335778 Rev1 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION 1278-6364 DISC, TAPE MOUNTING M1V67-014 FOOT, 1N, RUFFLER 1335201 RUFFLER MTG BRKT-YA-1804 MM4554K11 PLUG, 1/8" PIPE 1335208 FOOT LIFT ADJ - MOD NNJ1/4-28...
  • Page 78 Technical Manual & Parts Lists...

  • Page 79: 1335779 Base Console Assembly

    Technical Manual & Parts Lists 1335779 Base Console Assembly AAC Drawing Number 1335779 Rev0 QTY PART # DESCRIPTION 0411-069D BRKT, THREAD BRK DETECTIO 0411-070 CLAMP, SENSOR BRACKET Page 72 1335778 SEW HEAD SUBASSEMBLY Page 1959-112 2 POS THREAD PLATE ASSY 26151 TOOL TRAY, 1X3.5X9 Page 54...
  • Page 80 Technical Manual & Parts Lists...

  • Page 81: 1335M-2300B Pivot Assembly

    Technical Manual & Parts Lists 1335M-2300B Pivot Assembly AAC Drawing Number 192985C Rev3 QTY PART # DESCRIPTION 1335M-2004A Pivot Arm 1335M-2007 Pivot Block 1335M-2009 Drive Link 1335M-2010 Pivot Block 1335M-2011 Pivot Shaft 1335M-2012 Side Link 1335M-2013 Link Shaft 1335M-2014 Link Shaft 1335M-2015 Link Yoke BBNTA815...
  • Page 82 Technical Manual & Parts Lists...

  • Page 83: 3200Pmd Marking Module Assembly

    Technical Manual & Parts Lists 3200PMD Marking Module Assembly AAC Drawing Number 9000107 Rev1 PART# DESCRIPTION 3200302 PEN CAP 3200303 PLATE, CAM 3200305 BRACKET, CYL ROD MOUNT 3200310 BRACKET, MOUNT 3200311 MOUNTING BRKT., LONG 3200312 GUIDE PIN, THREADED 3200PM-3001 HOLDER, PIN AA198RA510 FLOW CONTROL,5/32X10-32 AAC8D-2...
  • Page 84 Technical Manual & Parts Lists...

  • Page 85: A-2216W56 Folder Assembly

    Technical Manual & Parts Lists A-2216W56 Folder Assembly AAC Drawing Number 9000005 Rev1 QTY PART # DESCRIPTION 1335642 SEAM GUIDE, 9/16 X 1W 1335645 SPACER, ENCODER, 1/2" 1335652 GUIDE, SEAM, RIGHT 1335653 GUIDE, SEAM, LEFT Page 62 1335659 GUIDE ROLLER ASSEMBLY Page 1335672 PLATE,FOLDER,CONTIENTAL...
  • Page 86 Technical Manual & Parts Lists...

  • Page 87: 1335378 Rotary Knife Assembly, Optional

    Technical Manual & Parts Lists 1335378 Rotary Knife Assembly, Optional AAC Drawing Number 1335378 Rev6 ITEM NO. QTY PART NUMBER DESCRIPTION 98-6819A BRKT,CORNER 2 x 10-32 1335008 SPACER, AAF20008 1335379 MOUNT, KNIFE HANDLE 1335384 WELDMENT, ROD MOUNT 1335521 CLAMP, MATERIAL 1335523 MOUNT, KNIFE TO CYL 1335525...

  • Page 88: 33008708 Ball Bearing Disc Assembly

    Technical Manual & Parts Lists 33008708 Ball Bearing Disc Assembly AAC Drawing Number 9000904 Rev 4 PART# DESCRIPTION 33008604 CONE, SPOOL 33008602 HUB, FLANGE 3/4 BORE SEE CHART SEE CHART 33008601 HUB, CENTER, 3/4 SHAFT BB23216-88 BEARING,BALL,1.0B RRLC026B1 SPRING,COMP .026X.18X.25 JJ012 3/16"...

  • Page 89: 3200Pme Marking Module, Miter

    Technical Manual & Parts Lists 3200PME Marking Module, Miter AAC Drawing Number 9000645 Rev 1 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION 3200302 PEN CAP NNH10-32 #10-32 HEX NUT 3200303 PLATE, CAM SSAS016024 1/4 X 3/8 X 10-24 SHLD, BOLT 3200304 MOUNTING BRKT.

  • Page 90: 1335Mfb18-Pd Pneumatic Diagram

    Technical Manual & Parts Lists 1335MFB18-PD Pneumatic Diagram 125211B...

  • Page 91: 1335Mfb-Pd Pneumatic Diagram

    Technical Manual & Parts Lists 1335MFB-PD Pneumatic Diagram 125696C...

  • Page 92: 1335Mfb18-Wd Wiring Diagram

    Technical Manual & Parts Lists 1335MFB18-WD Wiring Diagram 125212B...

  • Page 93: 1335Mfb-Wd Wiring Diagram

    Technical Manual & Parts Lists 1335MFB-WD Wiring Diagram 125697C...
  • Page 94 Atlanta Attachment Company (AAC) Statement of Warranty Manufactured Products Atlanta Attachment Company warrants manufactured products to be free from defects in material and workmanship for a period of eight hundred (800) hours of operation or one hundred (100) days whichever comes first. Atlanta Attachment Company warrants all electrical components of the Serial Bus System to be free from defects in material or workmanship for a period of thirty six (36) months.
