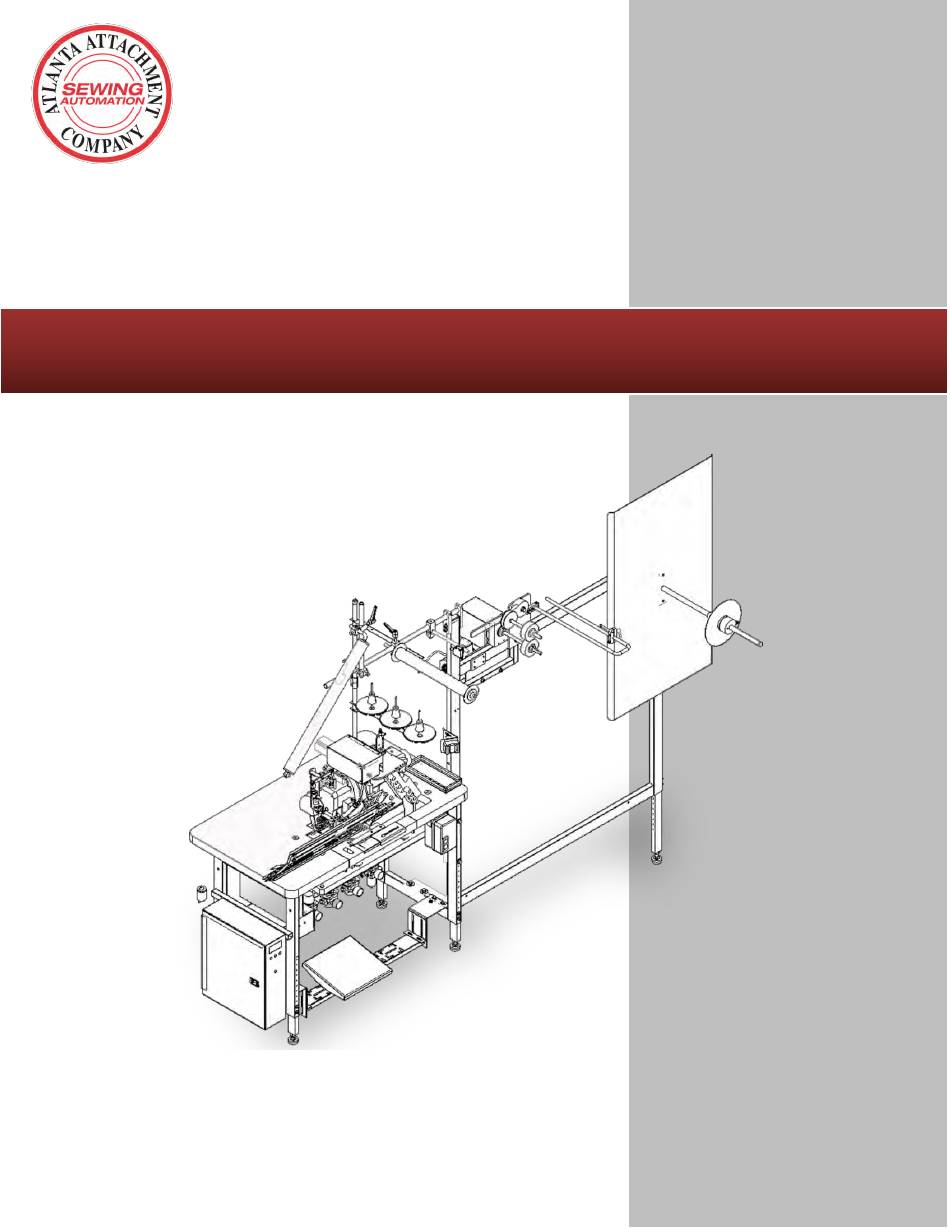

- Page 1 1335MF Model Revision 7.2 Updated May 27, 2016 Technical Manual & Parts Lists Atlanta Attachment Company 362 Industrial Park Drive Lawrenceville, GA 30046 770-963-7369 • www.atlatt.com...
-
Page 3: Table Of Contents
Attachment Company. In addition to any confidentiality and non-disclosure obligations that currently exist between you and Atlanta Attachment Company, your use of these materials serves as an acknowledgment of the confidential and proprietary nature of these materials and your duty not to make any unauthorized use or disclosure of these materials. - Page 4 Technical Manual & Parts Lists Electrical & Pneumatic Specifications...................... 10 Installation & Setup ..........................10 Control Box Operation ..........................10 Main Control Box: ............................ 10 Thumbwheels ............................11 Stepper Control Boxes ..........................11 Efka Control Boxes ........................... 12 Basic Machine Operation .......................... 12 Loading the Gusset Roll and Unwinder ....................
- Page 5 1335M-4200A Support Frame Assembly ....................59 1335M-430E Guide Roller Assembly ...................... 60 1959-800 Roll Holder Assembly ......................61 1335MF-500 Control Box Assembly......................63 1959-700A Table and Frame Assembly ....................65 1959-700B Table and Frame Assembly ....................67 A-2216K5/16 Flat Folder W/Flange ......................68 A-2216L5/16 Euro Folder W/Flange ......................
- Page 6 Technical Manual & Parts Lists 1959-PD Pneumatic Diagram ........................73 1334S-01WD Wiring Diagram ......................... 74 1334S-02WD Wiring Diagram ......................... 75 1335MF-WD Wiring Diagram ......................... 76 1335MFC-34WD2 Wiring Diagram ......................77...
-
Page 7: Important Safety Instruction
Mandatory Information All persons operating and/or working on the 1335MF Border Ruffler Workstation should read and understand all parts of the Safety Instructions. This applies, in particular, for persons who only operate and/or work on the unit occasionally (e.g. for maintenance and repair). Persons who have difficulty reading must receive particularly thorough instruction. - Page 8 Technical Manual & Parts Lists Liability The machine should only be operated when in perfect working order, with due regard for safety and the potential dangers, as well as in accordance with the Instruction Material. Faults and malfunctions capable of impairing safety should be remedied immediately. We cannot accept any liability for personal injury or property damage due to operator errors or non-compliance with the safety instructions contained in this booklet.
-
Page 9: Safety Equipment On The Machines
Manual & Parts Lists Technical A Word to the Operator The greatest danger inherent in our machines: is that of fingers, hands or loose clothing being drawn into a machine by live, coasting or rotating tools or assemblies or of being cut by sharp tools or burned by hot elements. LWAYS BE CONSCIOUS OF THESE DANGERS Safety Equipment on the Machines All machines are delivered with safety equipment, which shall not be removed or... -
Page 10: Protective Eyewear
Technical Manual & Parts Lists Protective Eyewear Protective eyewear that has been tested by the local authorities should be worn whenever there is a possibility of loose or flying objects or particles such as when cleaning the machine with compressed air. Tools Always count the number of tools in your possession before starting work on the machine. -
Page 11: Important Notices
Manual & Parts Lists Technical Important Notices Reporting and Fighting Fires Read the instructions posted in the factory with regard to reporting fires and the emergency exits. Make sure you know exactly where the fire extinguishers and sprinkler systems are located and how they are operated. - Page 12 Technical Manual & Parts Lists - Kinetic energy - Note that some motors or spindles, for example, may continue to run or coast run on after being switched off. - Potential energy - Individual assemblies may need to be secured if necessary for repair work. Delivery of the Machine/Packaging Note any markings on the packaging, such as weights, lifting points and special information.
-
Page 13: Maintenance
Manual & Parts Lists Technical Protect against influences from the surroundings: no structure-borne vibrations, no grinding dust, or chemical vapors. Protect against unauthorized access. Ensure that the machine and accessories are set up in a stable position. Ensure easy access for operation and maintenance (Instruction Manual and layout diagram); also verify that the floor is strong enough to carry the weight of the machine. -
Page 14: Repair
Technical Manual & Parts Lists Repair Replacement Parts We cannot accept any liability whatsoever for damage due to the use of parts made by other manufacturers or due to unqualified repair or modification of the machine. Repair, Electrical The power supply must be switched off (master switch off) and secured so that it cannot be switched on again inadvertently before starting any work on live parts. -
Page 15: A Word To The End User
Manual & Parts Lists Technical A Word to the End User The end user has sole responsibility to enforce the use of safety procedures and guards on the machine. Any other safety devices or procedures due to local regulations should be should be retrofitted in accordance to these regulations and/or the EC Directive on the safety of machines. -
Page 16: General Machine Data
Technical Manual & Parts Lists General Machine Data Electrical & Pneumatic Specifications Electrical: 220 VAC, 5amp, 50/60 Hz Single Phase Pneumatic: 70-80 PSI, 2 SCFM avg. Sewing Head: Yamato VM1804P Sewing Speed: 3500 RPM Needle (Standard): SN62X5721 Stitch Density: 6 SPI Installation &... -
Page 17: Thumbwheels
Manual & Parts Lists Technical Thumbwheels The first thumbwheel (#1) on the left sets the stitch count for the SLOW START feature after the last ruffle. This reduces the sewing speed for a few stitches to help the material feed to the puller before the machine goes to high speed. The stitch count equals twice the number shown on the thumbwheel. -
Page 18: Efka Control Boxes
Technical Manual & Parts Lists Note: The on/off switch only switches one line and does not make the box safe to work on. Always disconnect the main power cord before servicing the control box. Efka Control Boxes The sewing machine is powered by the Efka motor controller located under the table. -
Page 19: Loading And Adjusting The Folder
Manual & Parts Lists Technical Loading and Adjusting the Folder Feed the gusset through the top portion of the folder with the flange to the right and under the Fig. 5 right flange guide. Adjust the left guide to make a snug fit to the gusset width. -
Page 20: Sewing The Panel With Straight Corners
Technical Manual & Parts Lists Sewing the Panel with Straight Corners Set thumbwheel #5 to "7" for 1 ruffle per side, “8” for 2 ruffles per side, or "9" for 3 ruffles per side. Sew the panel to the corner being sure not to get your hands in the way of the electric eye mounted under the table, which must "see"... -
Page 21: General Machine Adjustments
Manual & Parts Lists Technical General Machine Adjustments Air Pressure Set all air supply pressure regulators (Right to left): Main Pressure: 70 PSI Puller Pressure: 30 PSI Ruffle Blade Pressure: 10 PSI Foot Sew Pressure: 15 PSI Sewing Head See the manufacturer’s manuals for normal adjustments and parts. The presser foot spring pressure should be set very light so that the ruffling blade can feed under the foot while ruffling. -
Page 22: General Machine Maintenance
Technical Manual & Parts Lists General Machine Maintenance Daily Clean machine at the end of every shift Clean lint etc. from the Looper/bobbin area on the sewing head Remove any threads wrapped around moving parts of the handwheel, puller, and ruffler. -
Page 23: Parameter Settings For Efka Controller
Manual & Parts Lists Technical Parameter Settings for Efka Controller... -
Page 24: 1335M Folder Spacer Reference Chart
Technical Manual & Parts Lists 1335M Folder Spacer Reference Chart... -
Page 25: Assembly Drawings & Parts Lists
Company. In addition to any confidentiality and non-disclosure obligations that currently exist between you and Atlanta Attachment Company, your use of these materials serves as an acknowledgment of the confidential and proprietary nature of these materials and your duty not to make any unauthorized use or... -
Page 26: 11335Mfc Continental Foundation Ruffler
Technical Manual & Parts Lists 11335MFC Continental Foundation Ruffler ACC Drawing Number 9000279 Rev10 QTY PART # DESCRIPTION Page 38 1335105 UNWINDER ASSY (K3) Page Page 40 1335256 BASE CONSOLE Page Page 60 1335M-430E GUIDE ROLLER ASSY Page K-340 TREADLE W/BRACKETS NNK1/4-20 KEP NUT, 1/4-20 SSHC01048... -
Page 27: 11335Mfc-Sd Continental Foundation Ruffler
Manual & Parts Lists Technical 11335MFC-SD Continental Foundation Ruffler ACC Drawing Number 192103B Rev2 QTY PART # DESCRIPTION Page 38 1335105 Unwinder Assy. Page Page 40 1335256 Base Console Page Page 60 1335M-430E Guide Roller Assy. Page WWFS1/4 Flat Washer, SAE Page 70 A-2216M5/16 Folder... -
Page 28: 11335Mfc-Su Continental Foundation Ruffler
Technical Manual & Parts Lists 11335MFC-SU Continental Foundation Ruffler ACC Drawing Number 192072B Rev2 QTY PART # DESCRIPTION Page 38 1335105 Unwinder Assy. Page Page 40 1335256 Base Console Page Page 60 1335M-430E Guide Roller Assy. Page 4059-FP301D Foot Pedal Page 70 A-2216M5/16 Folder... -
Page 29: 11335Mfc-Suat Continental Ruffler, 16
Manual & Parts Lists Technical 11335MFC-SUAT Continental Ruffler, 16” ACC Drawing Number 192954C Rev4 QTY PART # DESCRIPTION 4059-FP301D Foot Pedal Page 38 1335105 Unwinder Assy. Page Page 60 1335M-430E Guide Roller Assy. Page Page 40 1335256 Base Console Assy. Page Page 69 A-2216L5/16... -
Page 30: 11335Mfc-34Sd Manual Pillowtop Ruffler
Technical Manual & Parts Lists 11335MFC-34SD Manual Pillowtop Ruffler ACC Drawing Number 192102B Rev1 QTY PART # DESCRIPTION Page 75 1334S-02 Auto Flang Work Station Page Page 21 11335MFC-SD Cont. Foundation Ruffler Page 1335-002 Joining Tube 1334035 Adaptor 320007 Rod Clamp A-2212A Bent Rod 785-A95-06... -
Page 31: 11335Mfc-34Su Manual Pillowtop Ruffler
Manual & Parts Lists Technical 11335MFC-34SU Manual Pillowtop Ruffler ACC Drawing Number 192071B Rev4 QTY PART # DESCRIPTION 1334S-02 Auto Flang Work Station Page 21 11335MFC-SD Cont. Foundation Ruffler Page 1335-002 Joining Tube 1334035 Adaptor 320007 Rod Clamp A-2212A Bent Rod 785-A95-06 Disc Assy. -
Page 32: 11337At Air Table Assembly, Universal
Technical Manual & Parts Lists 11337AT Air Table Assembly, Universal ACC Drawing Number 9002611 Rev5 PART# DESCRIPTION 1335081 SUPPORT, SHELF 1337023 BRACKET, TABLE TOP RUFFLR 1337024 MOUNT, AIR TABLE 1337A-0168B BRACKET, RETAINER 1337A-160 AIR TABLE ASSY,SINGLE TBL 1337A-175C SHELF, AIR TABLE,23"X30" NNK5/16-18 KEP NUT, 5/16-18 SSZH#10048... -
Page 33: 1337A-160 Air Table Assembly, Single Tbl
Manual & Parts Lists Technical 1337A-160 Air Table Assembly, Single TBL ACC Drawing Number 1337296 Rev9 NO QTY PART # DESCRIPTION 1335-159 ACCESS COVER 1337860 BLOWER ASSY,1/6 HP 1337A-150 AI R TABLE ASSY 1337A-0161 ANGLE, CORNER 1337A-0163 WELDMENT, LEG, TABLE MMFB4444 FOOT, RUBBER NNH1/2-13... - Page 34 Technical Manual & Parts Lists...
-
Page 35: 1334S-01 Auto Flanging Workstation
Manual & Parts Lists Technical 1334S-01 Auto Flanging Workstation ACC Drawing Number 192761C Rev4 QTY PART # DESCRIPTION Page 33 1334-1000A Sewing Head Assembly Page 0411-069B THRD BRK BRKT 0411-070 Sens BRKT Clamp Page 34 1334-1100C Folder Mount Page WWFS10 Flat Washer AR WW000538 Washer... - Page 36 Technical Manual & Parts Lists...
-
Page 37: 1334S-02 Auto Flanging Workstation
Manual & Parts Lists Technical 1334S-02 Auto Flanging Workstation ACC Drawing Number 192070B Rev3 PART # DESCRIPTION 1334-1000A Sewing Head Assy NNK1/4-20 Kep Nut SSZH#10192 Hex Sheet Metal Screw 1334-1100D Folder Mount WWFS10 Flat washer RRLC105J10 Spring 1959-112 2 POS Thread Plate Assy 1334-3012 Cable AATPWL1... -
Page 38: 1337135 Blower Assembly
Technical Manual & Parts Lists 1337135 Blower Assembly AAC Drawing Number 1337135 Rev 2 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION 1337116 ADAPTOR, BLOWER SSFS98048 #10-32 X 3/4, FLAT SLOT 1337133 DAMPER, SLIDE SSMBK13 KNOB,BLACK PLASTIC 1337134 GRILL,BLOWER INLET SSSC90016 #8-32 X 1/4 SOC CAP SC... -
Page 39: 1334-1000A Sewing Head Detail
Manual & Parts Lists Technical 1334-1000A Sewing Head Detail ACC Drawing Number 192557C Rev3 QTY PART # DESCRIPTION SYAM-1804A Yamato Sew Head 1862N94016 Needle Holder 112013 Brkt AAC6S-1-H Air Cylinder 11200A Bumper AA198RR508 Flow Control SSSCM6X20 Screw, Socket Cap 54242B9016 Spreader 1959-412 Guard... -
Page 40: 1334-1100C Flanger Folder Mount Assembly
Technical Manual & Parts Lists 1334-1100C Flanger Folder Mount Assembly ACC Drawing Number 192901C Rev2 QTY PART # DESCRIPTION 1334-1003 Adj. Mount 1334-1005 Lower Angle Mount 1334-1006 Lock Handle Mount MMAGR25360M Rail 1335-310 Stop Block TTH32416 Threaded Handle WWFS1/4 Flat Washer WWL1/4 Lock Washer WWL3/8... -
Page 41: 1334-1100D Flanger Folder Mount Assembly
Manual & Parts Lists Technical 1334-1100D Flanger Folder Mount Assembly ACC Drawing Number 192929C Rev1 QTY PART # DESCRIPTION 1334-1005 Lower Angle Mount 1334-1006 Lock Handle Mount MMAGR25360M Linear Rail 1335-310 Stop Block TTH32416 Threaded Handle WWFS1/4 Flat Washer WWL1/4 Lock Washer WWL3/8 Lock Washer... -
Page 42: 1334-1200A Material Guide Assembly
Technical Manual & Parts Lists 1334-1200A Material Guide Assembly ACC Drawing Number 192092B Rev0 QTY PART # DESCRIPTION 1334-1023 Guide Mount 1334-1024 Support 1335-318 Rod Slide Arm 1335-319 Rod Clamp Arm 1335-320C Rod, 3/8 x 9 1335Q-130A Rod, 3/8 x 24 SSSS01024 Screw, Socket Set SSSC95048... -
Page 43: 1335271 Foot Pressure Assembly
Manual & Parts Lists Technical 1335271 Foot Pressure Assembly ACC Drawing Number 1335271 Rev2 PART# DESCRIPTION 1335207 MTG BRKT, FOOT LIFT 1335M-108 LEVER AA198RR508 FLOW CONTROL,5/32 X 1/8" AAC7DP-.5 CYLINDER,AIR,DA AAFBP-11C BRKT,PIVOT,1/4 BORE AAFCT-7 CLEVIS,AIR CYL, 1/4-28 AAFP18 MUFFLER,1/8 NPT, BRONZ NNJ1/4-28 1/4-28 HEX JAM NUT SSAS020016... - Page 44 Technical Manual & Parts Lists...
-
Page 45: 1335105 Unwinder Assembly
Manual & Parts Lists Technical 1335105 Unwinder Assembly ACC Drawing Number 1335105 Rev17 1325-346A HOLDER, ROD, 3/4", SLOT NNJ10-32 NUT,JAM,THIN #10-32 1335-837A ROD,1/2 DIA, 180 DEG NNK1/4-20 KEP NUT, 1/4-20 1335M-2046 PLATE,NUT,8-32@.43 CTC NNK10-32 KEP NUT, 10-32 1335M-4007 COVER, BELT PP12LF050-3/4 PULLEY,GEAR,3/8P,.50B,12T 1347-001 EDGE GUIDE,SPLIT,(2 PCS) -
Page 46: 1335256 Base Console
Technical Manual & Parts Lists 1335256 Base Console ACC Drawing Number 1335256 Rev7 PART# DESCRIPTION 1335MF-PD DIAGRAM, PNEUMATIC 26151 TOOL TRAY, 1X3.5X9 1335182 STRIPPER BLADE ASSY 1335257 "STAND / MOTOR ASSY- 1335258 "RUFFLER ASSY,YAM 1335425 SEW HEAD SUBASSEMBLY 1959-112 "2 POS THREAD PLATE... -
Page 47: 1335182 Stripper Blade Assembly
Manual & Parts Lists Technical 1335182 Stripper Blade Assembly AAC Drawing Number 1335182 Rev 2 ITEM NO. QTY PART NUMBER DESCRIPTION ITEM NO. QTY PART NUMBER DESCRIPTION 1335154 PIVOT ROD, STRIP BLADE SSSC90024 #8-32 X 3/8 SOC CAP 1335239 STOP BLK-STRIPPER BLADE WWF8 WASHER, FLAT #8 1335231... - Page 48 Technical Manual & Parts Lists...
-
Page 49: 1335257 Stand / Motor Assembly
SHUTTLE VALVE,1/8"PORT 1278-6718A BRKT,OPTO AP-28-800Y1A BOX,STEPPER,H.S. (X5),2A 1335M-114 HINGE BRACKET 2.8 FT EEDC2X2 COVER,WIRE DUCT 1335M-LAB LABELS 2.8 FT EEDF2X2 DUCT,WIRE,2X2, MOD 1335MF-500 CONTROL BOX FFHBL4579C RECEPTACLE,3 POLE,3W 1335MF-PD PNEUMATIC FFOTBVN6 SWITCH,OPTO-TOUCH 1335MF-WD WIRING DIAGRAM FFSM312LVQ EYE,ELECTRIC,10-30VDC 1975-412A PLATE,NUT,4-40 K-4D... - Page 50 Technical Manual & Parts Lists...
-
Page 51: 1335258 Ruffler Assembly, Yam Vm 1804P
Manual & Parts Lists Technical 1335258 Ruffler Assembly, Yam VM 1804P ACC Drawing Number 1335258 Rev13 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION 11200A BUMPER 5/16-24 MM8FM JOINT,UNIVERSAL,MOD 1278-7055D PROX SWITCH W/PLUG,12" NNE1/2-13 NUT, ELASTIC 1/2-13 1335213 FOOT LIFT BRKT NNH10-32 #10-32 HEX NUT... - Page 52 Technical Manual & Parts Lists...
-
Page 53: 1335260 Ruffler Mtg Angle Assembly
Manual & Parts Lists Technical 1335260 Ruffler MTG Angle Assembly ACC Drawing Number 1335260 Rev2 QTY PART # DESCRIPTION 1278-7055D PROX SWITCH W/PLUG,12" 1335214 RUFFLER MTG BRKT - 1804A 1335220 BASE PLATE, RUFFLER MTG 1335M-2017 ROD, END 1335M-2027A CYL. MOUNT 1335M-2034 PLATE, NUT #2-56 1335M-3008A... - Page 54 Technical Manual & Parts Lists...
-
Page 55: 1335332 Ruffler Cylinder Lift Assembly
Manual & Parts Lists Technical 1335332 Ruffler Cylinder Lift Assembly ACC Drawing Number 1335332 Rev8 QTY PART # DESCRIPTION 1335223 BASE MTG PLT, FOLDER 1335224 BASE MTG PLATE 1335226 MTG PLT LH- RAIL 1335227 SUPPORT-SLIDE, LH SIDE 1335228 SUPPORT, RH 1335229 MTG PLT RH- RAIL 1335230... - Page 56 Technical Manual & Parts Lists...
-
Page 57: 1335425 Sew Head Sub Assembly
Manual & Parts Lists Technical 1335425 Sew Head Sub Assembly ACC Drawing Number 1335425 Rev6 NO QTY PART # DESCRIPTION 1278-6364 DISC, TAPE MOUNTING 1862N14001 NEEDLE CHUCK,1N 1804 1888N12S01 FEED DOG 1N 1888N13S01 PLATE, NEEDLE, 1N 54242B9016 SPREADER,9NDL 1/4 GA 1335201 RUFFLER MTG BRKT-YA-1804 1335208... -
Page 58: 1335426 Puller Lift Assembly 1804P
Technical Manual & Parts Lists 1335426 Puller Lift Assembly 1804P ACC Drawing Number 1335426 Rev1 QTY PART # DESCRIPTION 132556-148D BRACKET PULLER LIFT-HD AAC6DX-1.5 CYLINDER,AIR,DA,PIVOT AAFBP-11C BRKT,PIVOT,1/4 BORE AAFCT-11 CLEVIS, CYL, 5/16-24 ,1/4 AAFP18 MUFFLER,1/8 NPT, BRONZ AAQME-5-8 QUICK MALE ELBOW CCCL5F CLAMP COLLAR,5/16"... -
Page 59: 1335716 Pneumatic, Shelf
Manual & Parts Lists Technical 1335716 Pneumatic, Shelf ACC Drawing Number 1335716 Rev3 QTY PART # DESCRIPTION AAQME-5-8 QUICK MALE ELBOW AAVS125 SHUTTLE VALVE,1/8"PORT SSSC80064 #6-32 X 1 SOC CAP WWFS6 WASHER, FLAT, #6 1335715 BRACKET, PNEUMATIC AA198-503 0-30PSI AIR GAGE 1/8NPT AA198-5102 REGULATOR W/GAUGE &... - Page 60 Technical Manual & Parts Lists...
-
Page 61: 1335428 Puller Modification, Yamato 1804
Manual & Parts Lists Technical 1335428 Puller Modification, Yamato 1804 ACC Drawing Number 1335428 Rev8 QTY PART # DESCRIPTION 1335394 PULLER,MOD,MG2002/VM1804 1335395 YOKE, PULLER-HD 1335397 PULLER ROLLER, HD, 2002MG 1335399 SHAFT, PULLER, HD 1335400 WASHER, HUB CAP, 1/4 1335414 DRIVE ARM, PULLER,HD 1335928 STRIPPER PLATE 1335929... -
Page 62: 1335M-1005 Sit-Down Treadle Assembly
Technical Manual & Parts Lists 1335M-1005 Sit-Down Treadle Assembly ACC Drawing Number 192857C Rev1 QTY PART # DESCRIPTION 1335M-105 Treadle Brkt 160929A Show Stand Brkt K-100-30M Treadle Brace K-340 Threadle W/BRKT NNK1/4-20 Kep Nut NNC1/4-20 Cap Nut SSHC01048 Screw, Hex Cap WWFS1/4 Flat Washer... -
Page 63: 1335M-2300B Pivot Assembly
Manual & Parts Lists Technical 1335M-2300B Pivot Assembly ACC Drawing Number 192985C Rev3 QTY PART # DESCRIPTION 1335M-2004A Pivot Arm 1335M-2007 Pivot Block 1335M-2009 Drive Link 1335M-2010 Pivot Block 1335M-2011 Pivot Shaft 1335M-2012 Side Link 1335M-2013 Link Shaft 1335M-2014 Link Shaft 1335M-2015 Link Yoke BBNTA815... -
Page 64: 1335M-420 Guide Roller Assembly
Technical Manual & Parts Lists 1335M-420 Guide Roller Assembly ACC Drawing Number 192832C Rev0 QTY PART # DESCRIPTION 97-1711 Tube, 3/4 x 30 8732-0576 Tube, 1/2 x 9 1335-318 Rod Slide Arm 1335-319 Rod Clamp Arm Cross Block, 1/2 28201 Cross Block, 3/4 1335-814 Roller, 2 x 9... -
Page 65: 1335M-4200A Support Frame Assembly
Manual & Parts Lists Technical 1335M-4200A Support Frame Assembly ACC Drawing Number 192833C Rev0 QTY PART # DESCRIPTION 1325-346 Rod Holder, 1/2 1325-346A Rod Holder, 3/4 1335M-4003A Support Brkt 1335M-4201 Frame Support 265155A Eye Holder 1335-837 Rod, 1/2 U AAF1/8 Plastic Clamp FFQM42VN6A Electric Eye... -
Page 66: 1335M-430E Guide Roller Assembly
Technical Manual & Parts Lists 1335M-430E Guide Roller Assembly ACC Drawing Number 9000912 Rev2 PART # DESCRIPTION 1335-319B ARM, 1/2" ROD CLAMP 1335-814E ROLLER ASSY, 16 L, 2OD, . 1335-835E ROD,BENT90DEG,1/2CRS,4X38 1335-838E ROLLER ASSY W/FLANGE 28201 CROSS BLOCK, LARGE 28201A CROSS BLOCK, LARGE 780-100 ROD,STRAIGHT,CRS,1/2... -
Page 67: 1959-800 Roll Holder Assembly
Manual & Parts Lists Technical 1959-800 Roll Holder Assembly ACC Drawing Number 192739C Rev5 QTY PART # DESCRIPTION NNH1/2-13 Hex Nut 1959-802 Rod, 3/8 x 28 A-4-024 SSHC01160 Screw, Hex Cap WWL1/4 Lock Washer WWFS1/4 Flat Washer 1959-101 Rod, 1/4 x 17 1959-105 Tube Assy 1959-106B... - Page 68 Technical Manual & Parts Lists...
-
Page 69: 1335Mf-500 Control Box Assembly
Manual & Parts Lists Technical 1335MF-500 Control Box Assembly ACC Drawing Number 192909B Rev11 NO. QTY PART # DESCRIPTION NO. QTY PART # DESCRIPTION MM40450010 Slide Lock 1335M-501 Control Box Cover MMSLD-ECH Bumper 1981A-511 Ground Wire FFC5S1 End Cap, Pair... - Page 70 Technical Manual & Parts Lists...
-
Page 71: 1959-700A Table And Frame Assembly
Manual & Parts Lists Technical 1959-700A Table and Frame Assembly ACC Drawing Number 192766C Rev3 QTY PART # DESCRIPTION 1959-004 Table Top 1959-110 Stand 1959-120 Mount Brkt 213-005 Stop Button 26127 NNJ1/4-20 Jam Nut 4000D1-500 Control Box 4058-2 Motor PPM616 Pulley SSZH#10192 Sheet Metal Screw... - Page 72 Technical Manual & Parts Lists...
-
Page 73: 1959-700B Table And Frame Assembly
Manual & Parts Lists Technical 1959-700B Table and Frame Assembly ACC Drawing Number 192981C Rev6 NO. QTY PART # DESCRIPTION 1 1330222 TABLE TOP 1 K-4D STAND 1 1959-120 MNT BRKT 4 WWF4 WASHER, #4 2 SSFS80016 SCREW, FLAT SLOTTED 6-32 X 1/4 1 4059067 MOTOR LEVER ASSY 1 4000D2-500... -
Page 74: A-2216K5/16 Flat Folder W/Flange
Technical Manual & Parts Lists A-2216K5/16 Flat Folder W/Flange ACC Drawing Number 192836C Rev3 PART # DESCRIPTION NNW10-32 Wing Nut A-2216D22 T-Nut A-2216D53 Spacer, 1/4 A-2216G29 Spacer, 5/16 A-2216K02 Folder Plate A-2216K04 Folder Top A-2216D34 Guide, 5/16 NNK10-32 Kep Nut WWL10 Lock Washer SSSC98040... -
Page 75: A-2216L5/16 Euro Folder W/Flange
Manual & Parts Lists Technical A-2216L5/16 Euro Folder W/Flange ACC Drawing Number 192823C Rev3 QTY PART # DESCRIPTION NNW10-32 Wing Nut A-2216D22 T-Nut A-2216D53 Spacer, 1/4 A-2216G29 Spacer, 5/16 A-2216L02 Folder Plate A-2216L04 Folder Top A-2216D34 Guide, 5/16 NNK10-32 Kep Nut SSBC98064 Screw, Button Cap SSSC90040... -
Page 76: A-2216M5/16 Continental Book Folder
Technical Manual & Parts Lists A-2216M5/16 Continental Book Folder ACC Drawing Number 192824C Rev6 QTY PART # DESCRIPTION NNW10-32 Wing Nut A-2216D22 T-Nut A-2216G29 Spacer, 5/16 A-2216M02 Folder Plate A-2216M04 Folder Top A-2216D34 Guide, 5/16 NNK10-32 Kep Nut SSBC98064 Screw, Button Cap SSBC98048 Screw, Button Cap WWFS10... -
Page 77: 33008708 Ball Bearing Disc Assembly
Manual & Parts Lists Technical 33008708 Ball Bearing Disc Assembly AAC Drawing Number 9000904 Rev 4 PART # DESCRIPTION 33008604 CONE, SPOOL 33008602 HUB, FLANGE 3/4 BORE SEE CHART SEE CHART 33008601 HUB, CENTER, 3/4 SHAFT BB23216-88 BEARING,BALL,1.0B RRLC026B1 SPRING,COMP .026X.18X.25 JJ012 3/16"... -
Page 78: 1335Mf-Pd Pneumatic Diagram
Technical Manual & Parts Lists 1335MF-PD Pneumatic Diagram 125860A... -
Page 79: 1959-Pd Pneumatic Diagram
Manual & Parts Lists Technical 1959-PD Pneumatic Diagram 125492C... -
Page 80: 1334S-01Wd Wiring Diagram
Technical Manual & Parts Lists 1334S-01WD Wiring Diagram 125627C... -
Page 81: 1334S-02Wd Wiring Diagram
Manual & Parts Lists Technical 1334S-02WD Wiring Diagram 125690C... -
Page 82: 1335Mf-Wd Wiring Diagram
Technical Manual & Parts Lists 1335MF-WD Wiring Diagram 125665C... -
Page 83: 1335Mfc-34Wd2 Wiring Diagram
Manual & Parts Lists Technical 1335MFC-34WD2 Wiring Diagram 125712C... - Page 84 Atlanta Attachment Company (AAC) Statement of Warranty Manufactured Products Atlanta Attachment Company warrants manufactured products to be free from defects in material and workmanship for a period of eight hundred (800) hours of operation or one hundred (100) days whichever comes first. Atlanta Attachment Company warrants all electrical components of the Serial Bus System to be free from defects in material or workmanship for a period of thirty six (36) months.
- Page 85 Declaración de Garantia Productos Manufacturados Atlanta Attachment Company garantiza que los productos de fabricación son libres de defectos de mate-rial y de mano de obra durante un periodo de ochocientos (800) horas de operación o cien (100) días cual llegue primero.
- Page 86 Atlanta Attachment Company 362 Industrial Park Drive Lawrenceville, GA 30046 770-963-7369 Printed in the USA www.atlatt.com...
