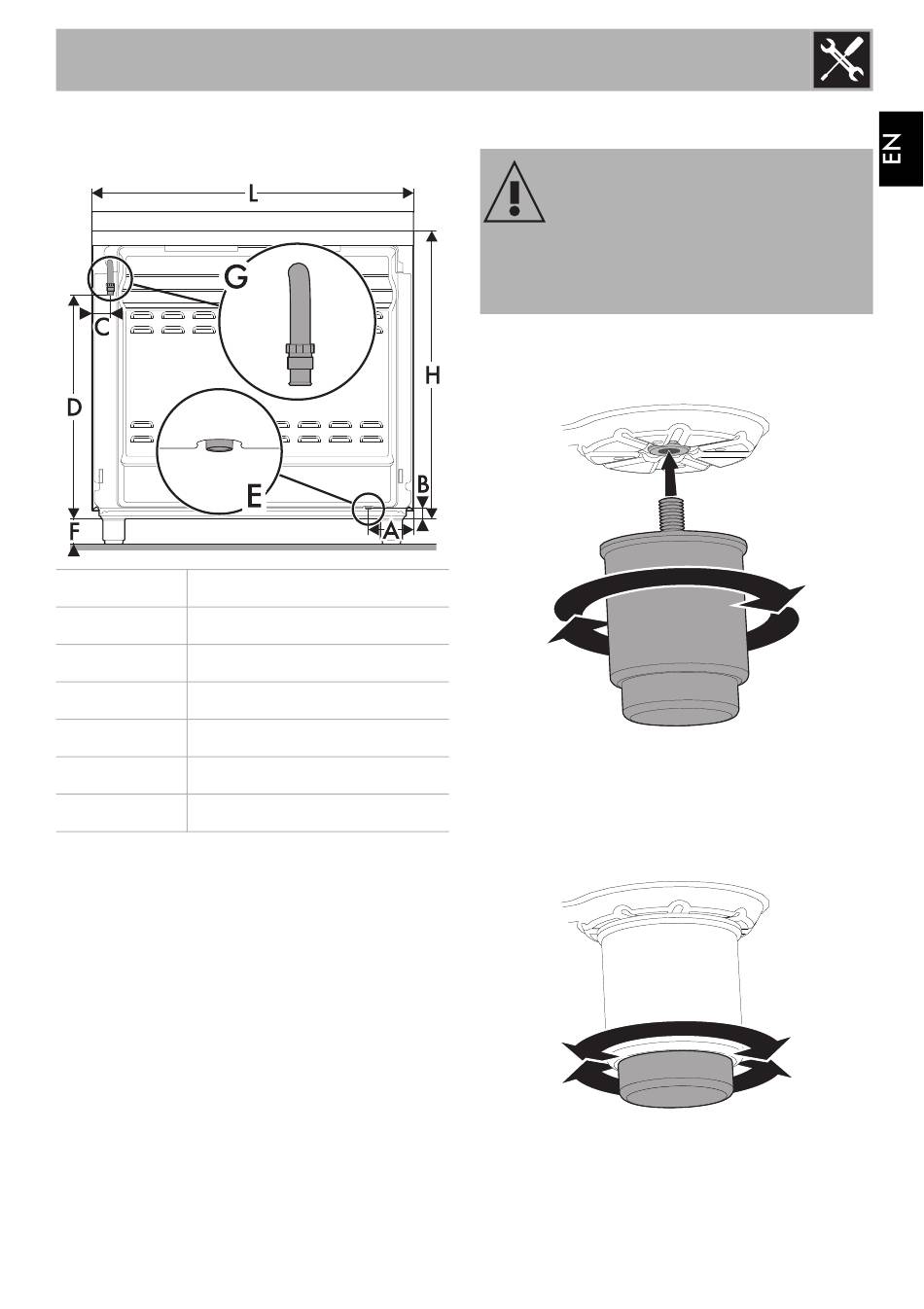

Dimensions of the appliance: locations of
gas and electric connections (mm)
A
B
C
D
F
H
L
E =
Electrical connection
G =
Gas connection
Installation
124
38
42
634
min. 70 - max. 110
809
898
Positioning and levelling
Heavy appliance
Risk of damage to the appliance
• Insert the front feet first and then the rear
ones.
After making the electrical and/or gas
connections, screw the four adjustable feet
supplied with the appliance.
The appliance must sit level on the floor to
ensure stability.
Screw or unscrew the bottom part of the
foot until the appliance is stable and level
on the floor.
