Instruction Sheet
TOR SERIES
TOR-X-20RP

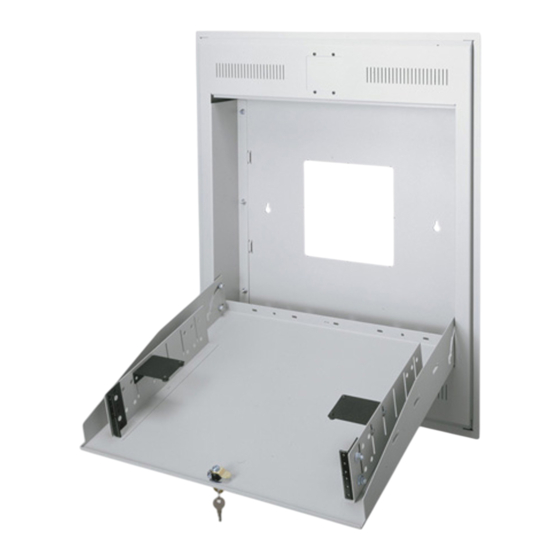

Flush Mount tilt out wall rack
U L
C
US
R
LISTED

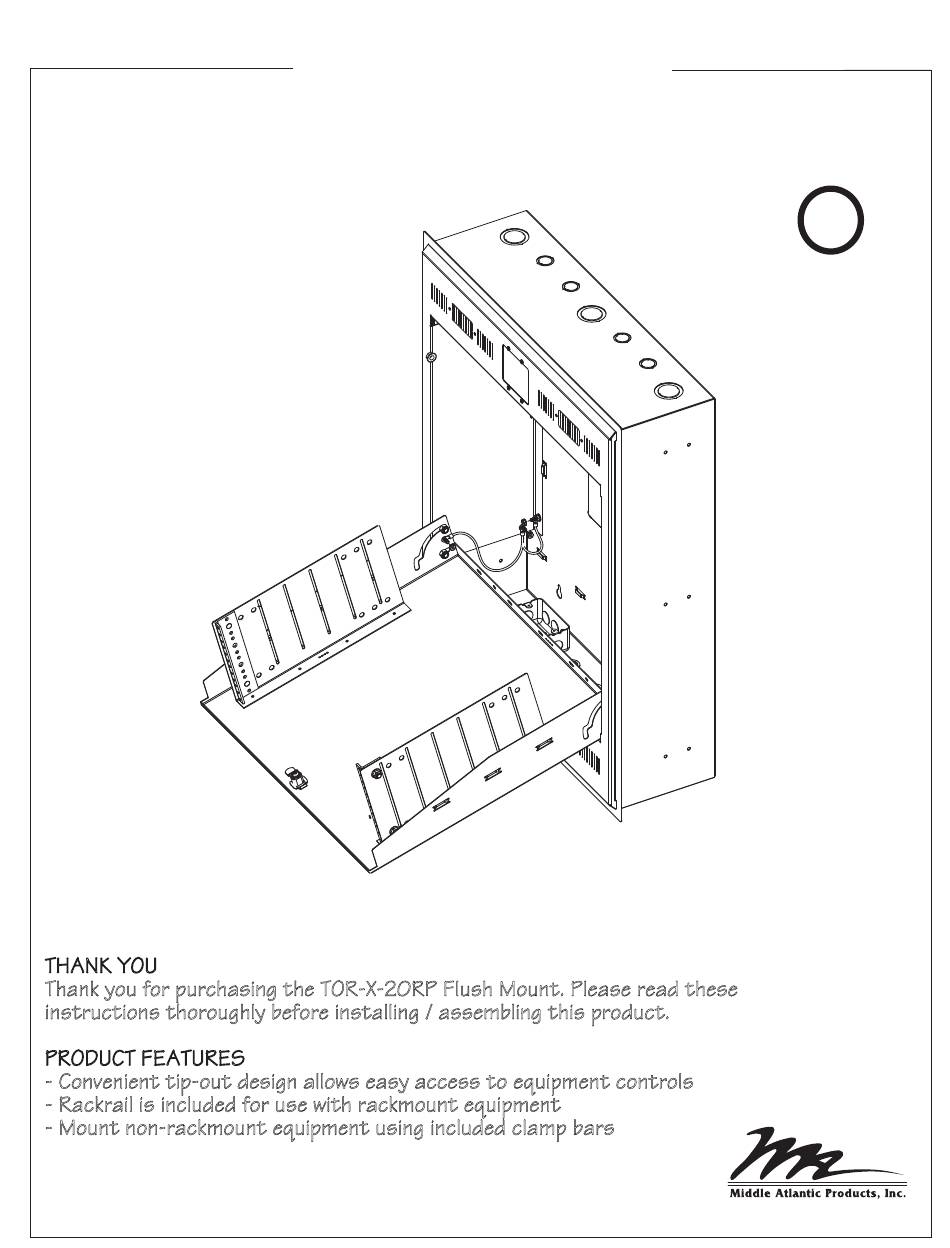

THANK YOU
Thank you for purchasing the TOR-X-20RP Flush Mount. Please read these
instructions thoroughly before installing / assembling this product.
PRODUCT FEATURES
- Convenient tip-out design allows easy access to equipment controls
- Rackrail is included for use with rackmount equipment
- Mount non-rackmount equipment using included clamp bars
I-00106
Page 1
Rev E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Middle Atlantic Products TOR-X-20RP
Summary of Contents for Middle Atlantic Products TOR-X-20RP
- Page 1 Flush Mount tilt out wall rack LISTED THANK YOU Thank you for purchasing the TOR-X-20RP Flush Mount. Please read these instructions thoroughly before installing / assembling this product. PRODUCT FEATURES - Convenient tip-out design allows easy access to equipment controls...
- Page 2 ASSEMBLY FIGURE A TOOLS: - Socket wrench set - Power drill and bit set 1) Construct a rough opening - 24.75" W x 30.312" H: 2 space - 2 x 4 3 space - 2 x 4 for partial, 2 x 6 for flush 4 space - 2 x 4, 2 x 6 for partial, 2 x 8 for flush 2) Disassembly is required prior to mounting.
- Page 3 CLAMP ASSEMBLY: NOTE: Middle Atlantic Products provides a clamp for use on non-rackmount equipment. On equipment that is rackmounted, the clamp is not required and can be discarded. Choose a desired location for the clamp and assemble the clamp to the ears using the screws and nuts provided (FIGURE D).
- Page 4 WARRANTY Middle Atlantic Products, Inc. (the "Company") warrants the TOR-X-20RP Flush Mount to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product. The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and...
- Page 5 Instruction Sheet TOR SERIES TOR-PRT Partial Recess Trim Kit For Tilt Out Wall rack LISTED TOOLS REQUIRED # 2 Phillips Driver BACKPAN NOTE: The trim provides aesthetic improvements when used on partially recessed applications. FASCIA FIGURE A ASSEMBLY The assembly should coincide with initial installation of the product.
- Page 6 WARRANTY Middle Atlantic Products, Inc. (the "Company") warrants the TOR-PRT Partial Recess Trim Kit to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product. The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and...
