 Fuel system "fill line" is routed from the BVM UAT as shown. Trim end occasionally to
keep aluminum plug fitting tight. A suction leak would cause a flame out.

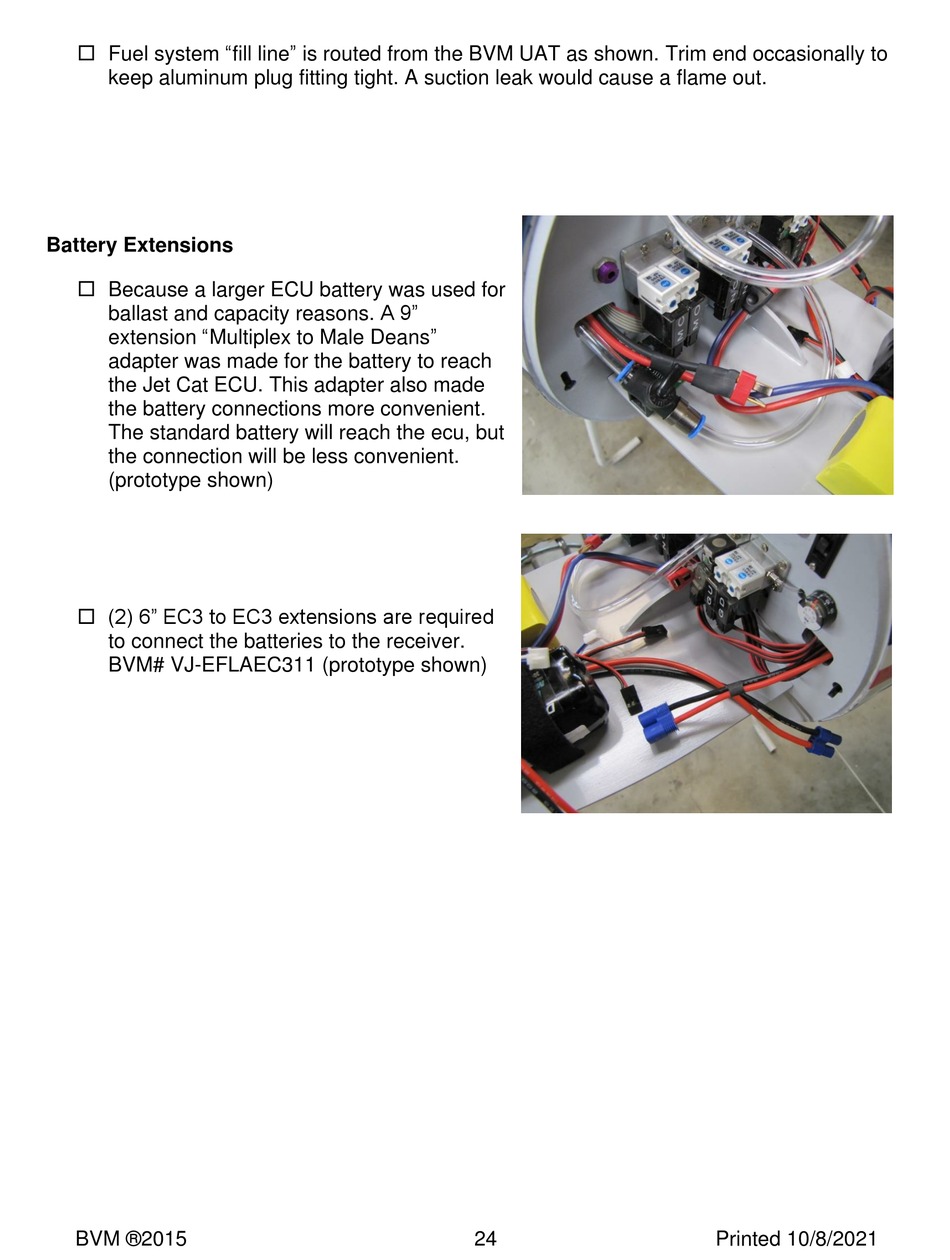

Battery Extensions

 Because a larger ECU battery was used for
ballast and capacity reasons. A 9"
extension "Multiplex to Male Deans"
adapter was made for the battery to reach
the Jet Cat ECU. This adapter also made
the battery connections more convenient.
The standard battery will reach the ecu, but
the connection will be less convenient.
(prototype shown)
 (2) 6" EC3 to EC3 extensions are required
to connect the batteries to the receiver.
BVM# VJ-EFLAEC311 (prototype shown)
