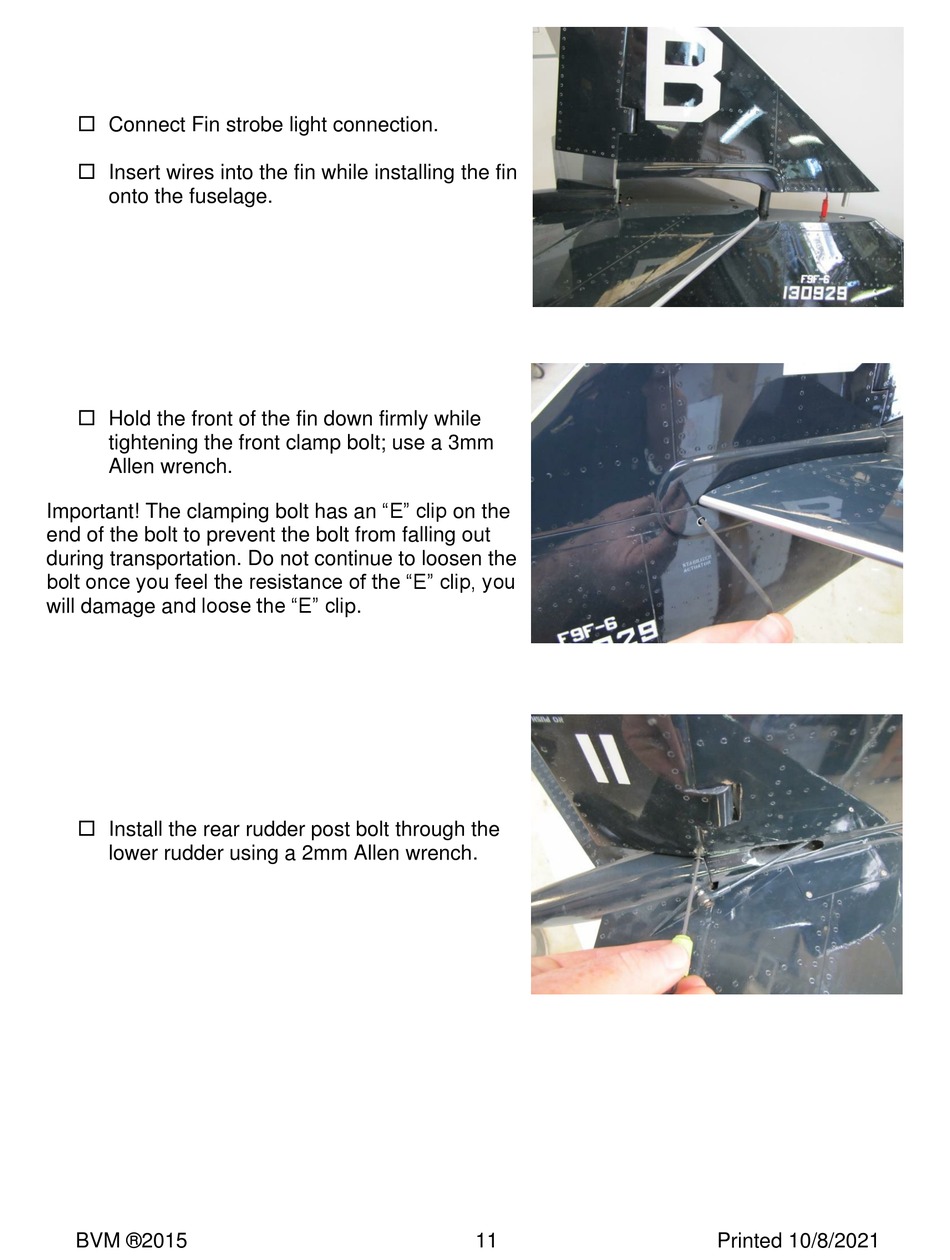

BVM GO FLY GOLD Grumman F-9F Cougar Manual page 11

 Connect Fin strobe light connection.
 Insert wires into the fin while installing the fin
onto the fuselage.
 Hold the front of the fin down firmly while
tightening the front clamp bolt; use a 3mm
Allen wrench.
Important! The clamping bolt has an "E" clip on the
end of the bolt to prevent the bolt from falling out
during transportation. Do not continue to loosen the
bolt once you feel the resistance of the "E" clip, you
will damage and loose the "E" clip.
 Install the rear rudder post bolt through the
lower rudder using a 2mm Allen wrench.
BVM ®2015 11 Printed 10/8/2021
