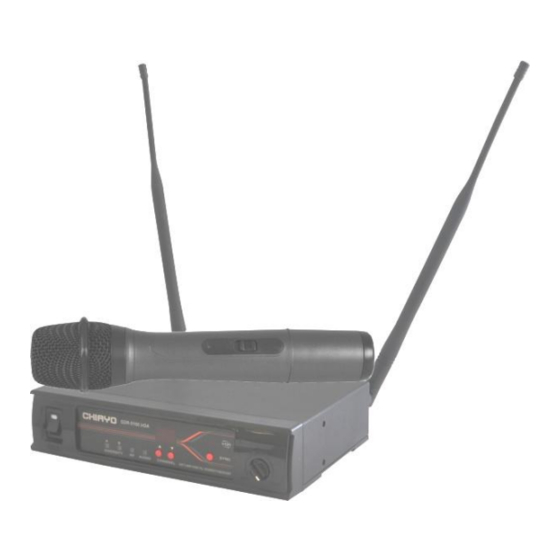

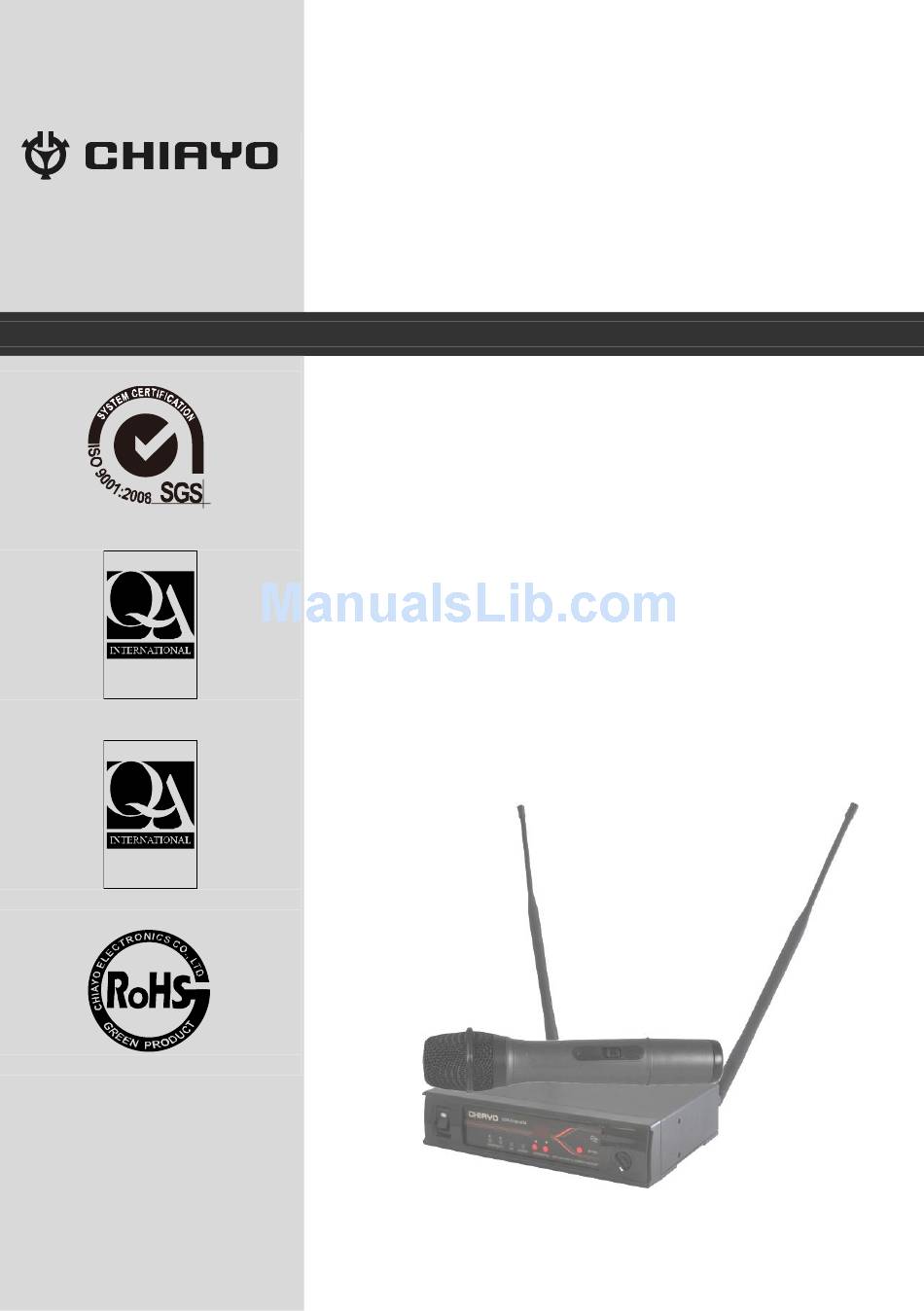

- Page 1 SDR-5100 IrDA UHF 2-Way Synchronizing Diversity Wireless Microphone System Operation manual ISO 9001 R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT...
- Page 2 5. an operation manual For more details, please take a few moments to read this operating manual to have a thorough understanding of the function and operation of both transmitter and receiver. Parts and functions of SDR-5100 IrDA receiver →Front panel →Rear panel 1.
- Page 3 ISO 9001｜ISO 14001｜OHSAS 18001 Channel synchronizing of the receiver and transmitter 1. To achieve a trouble-free synchronization, please limit the distance between the receiver and transmitter to within 30cm. 2. Align both sensor areas 3. To change the receiver’s channel, please press the synchronizing button of the transmitter. The transmitter will transmit synchronizing signal to the receiver and change its channel.
- Page 4 UHF handheld transmitters（SQ-6100 IrDA(R)｜SQ-6100 IrDA｜SQ-2100 IrDA｜SQ-1100 IrDA） →SQ-6100 IrDA(R)｜SQ-6100 IrDA →SQ-2100 IrDA →SQ-1100 IrDA Parts and functions SQ-6100 IrDA(R) SQ-6100 IrDA SQ-2100 IrDA SQ-1100 IrDA Cartridge Battery power LED Power switch Menu button Setting button IrDA synchronizing button Battery compartment Color cap IrDA sensor area Charging port...
- Page 5 ISO 9001｜ISO 14001｜OHSAS 18001 Channel synchronizing of the receiver and transmitter 1. To achieve a trouble-free synchronization, please limit the distance between the receiver and transmitter to within 30cm. 2. Align both sensor areas 3. To change the receiver’s channel, please press the synchronizing button of the transmitter. The transmitter will transmit synchronizing signal to the receiver and change its channel.
- Page 6 （SM-7100 IrDA｜SM-6100 IrDA｜SM-2100 IrDA｜SM-1100 IrDA） UHF belt-pack transmitters 11 12 SM-7100 IrDA｜SM-6100 IrDA｜SM-2100 IrDA SM-1100 IrDA Parts and functions SM-7100 IrDA SM-6100 IrDA SM-2100 IrDA SM-1100 IrDA Antenna Cover release button Power switch IrDA synchronizing button Menu button Setting button High-impedance gain control (GT) Low-impedance gain control (MT) Battery compartment...
- Page 7 ISO 9001｜ISO 14001｜OHSAS 18001 Note: Batteries contain a corrosive acid that may leak and damage the belt-pack when stored for a long period. Batteries should be removed from the belt-pack before storing without use for more than 4 weeks. When the transmitter is switched ON, the battery power LED (red) will blink once to indicate the batteries installed are in good condition.
- Page 8 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan｜Tel: 886-2-27415741｜Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan｜Tel: 886-5-2711000｜Fax: 886-5-5767611...
