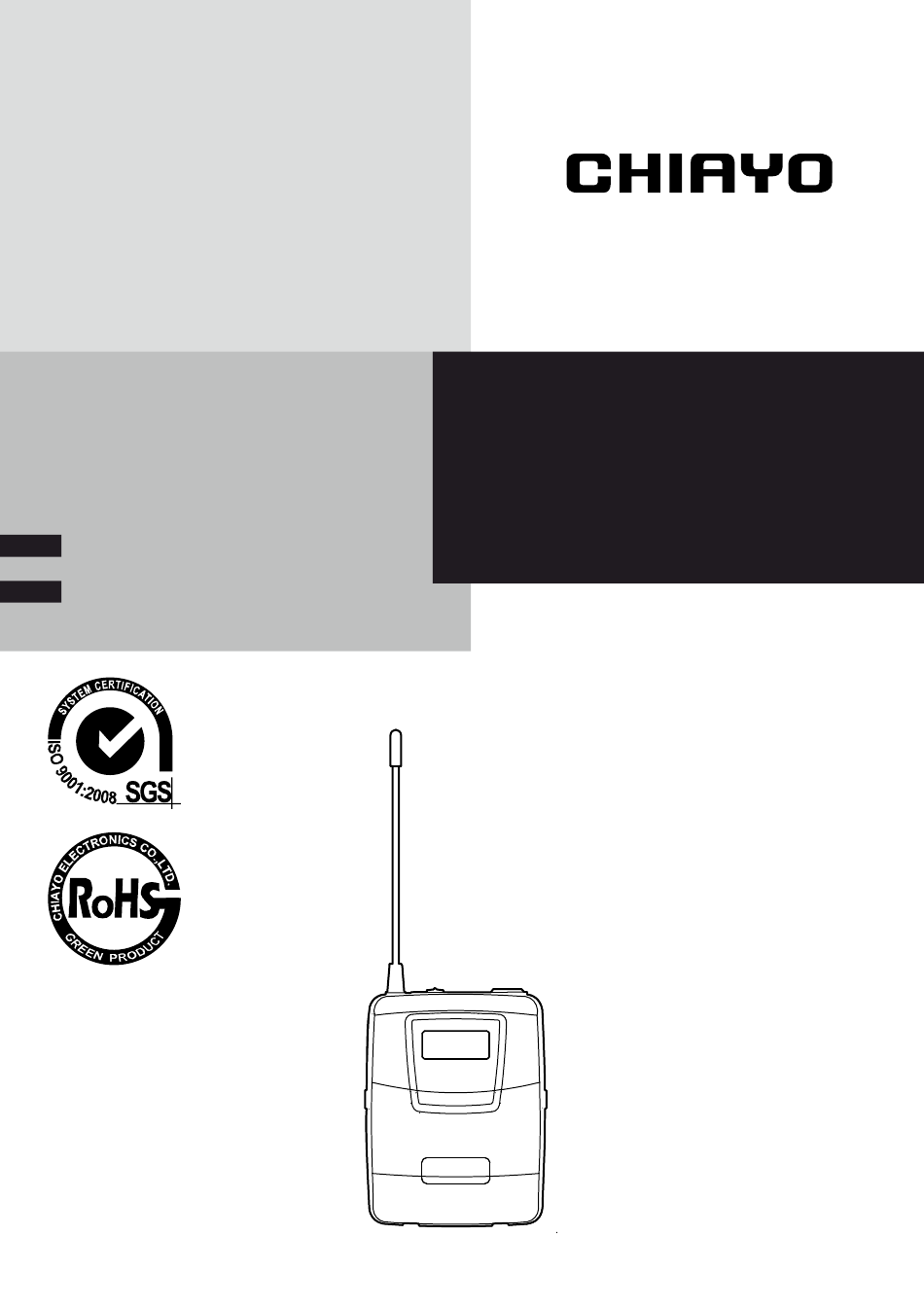

- Page 1 SM-6100 IrDA Operation manual UHF Belt-pack Transmitter NDR-3120 UHF Dual-Channe CHIAYO ELECTRONICS CO.,LTD.
-
Page 2: Parts And Functions
SM-6100 IrDA UHF Belt-pack Transmitter Parts and functions Antenna Setting button MENU Menu button Cover release button High-impedance gain control IrDA synchronizing button Low-impedance gain control Battery compartment Power switch Battery power LED IrDA sensor area Audio input connector Charging contacts... - Page 3 Instructions Battery installation & indicator ● ○ ● ► When the transmitter is switched If the LED remains illuminated the ON, the battery power LED (red) batteries have expired and require will blink once to denote the replacement. batteries installed are in good condition This transmitter requires 2 x AA To install, open the battery cover...
- Page 4 SM-6100 IrDA UHF Belt-pack Transmitter Channel setting Use MENU button to go to the CHANNEL｜FREQUENCY page. Press and hold the SET button for 3 seconds, then the upper- right channel number will flash to allow changes to be made. Press SET / MENU buttons to change the channel number.
- Page 5 Instructions Channel synchronizing of the receiver and transmitter 630 000 FREQ 30cm 10~30cm Align infrared areas of the receiver and transmitter within 30cm. Changing the receiver’s channel STEP 1 Press the synchronizing button of the transmitter. STEP 2 The transmitter's LED will grow to denote transmitting the frequency to the receiver and synchronizing the channels.
- Page 6 SM-6100 IrDA UHF Belt-pack Transmitter Battery type setting Use MENU button to go to the BATTERY TYPE page. Press and hold SET button for 3 seconds, then the cursor will flash to allow changes to be made. Press SET button to select either NiMH (rechargeable battery) or AKLN (alkaline battery).
- Page 7 This device should be installed and operated so that its antenna(s) are not co-located or operating in conjunction with any other antenna or transmitter Frequency: 470~789 MHz, Maximal power: 6 mW Frequency: 823~832 MHz, Maximal power: 7.2 mW CE declaration info: www.chiayo.com.tw/declaration.html...
- Page 8 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
