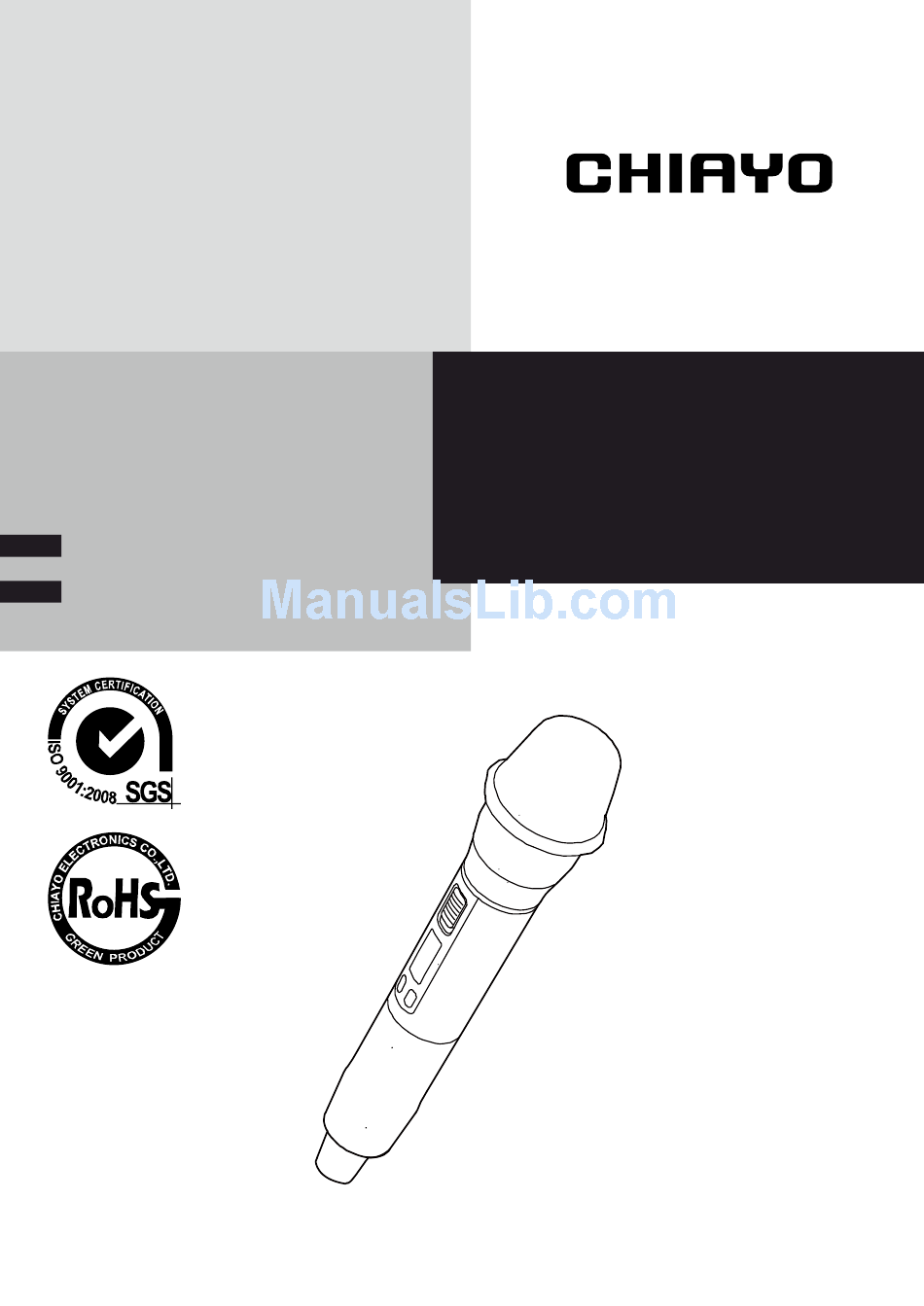

- Page 1 SQ-6100 IrDA Operation manual UHF Handheld Microphone CHIAYO ELECTRONICS CO.,LTD.

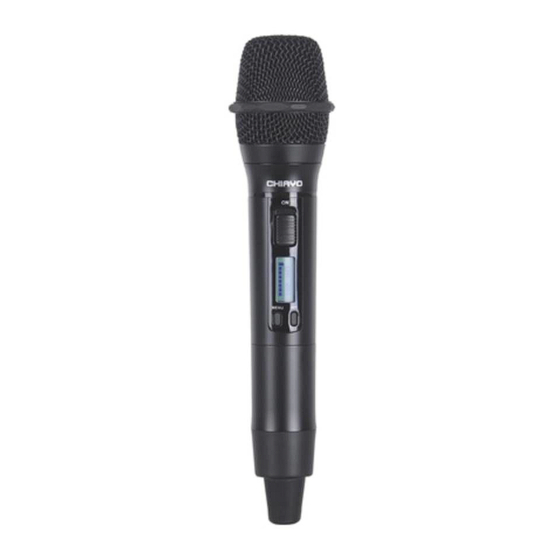

- Page 2 SQ-6100 IrDA UHF Handheld Microphone Parts and functions Cartridge Battery power LED Power switch Setting button Menu button IrDA synchronizing button attery compartment Color cap Charging port...
- Page 3 Instructions Battery installation & indicator ● ○ ● ► When the transmitter is switched If the LED remains illuminated, it ON, a blue LED will blink once to means the batteries are weak and denote the batteries installed are require replacement. in good condition.
- Page 4 SQ-6100 IrDA UHF Handheld Microphone Channel setting Use MENU button to go to the CHANNEL｜FREQUENCY page. Press and hold the SET button for 3 seconds, then the upper- right channel number will flash to allow changes to be made. Press SET / MENU buttons to change the channel number. The corresponding frequency will change accordingly.
- Page 5 Instructions Channel synchronizing of the receiver and transmitter 630 000 FREQ 30cm 10~30cm S ET Align infrared areas of the receiver and transmitter within 10~30cm. Changing the receiver’s channel STEP 1 Press the synchronizing button of the transmitter. STEP 2 The transmitter's LED will grow to denote transmitting the frequency to the receiver and...
- Page 6 SQ-6100 IrDA UHF Handheld Microphone Battery type setting Use MENU button to go to the BATTERY TYPE page. Press and hold SET button for 3 seconds, then the cursor will flash to allow changes to be made. Press SET button to select either NiMH (rechargeable battery) or AKLN (alkaline battery).
- Page 7 Instructions...
- Page 8 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
