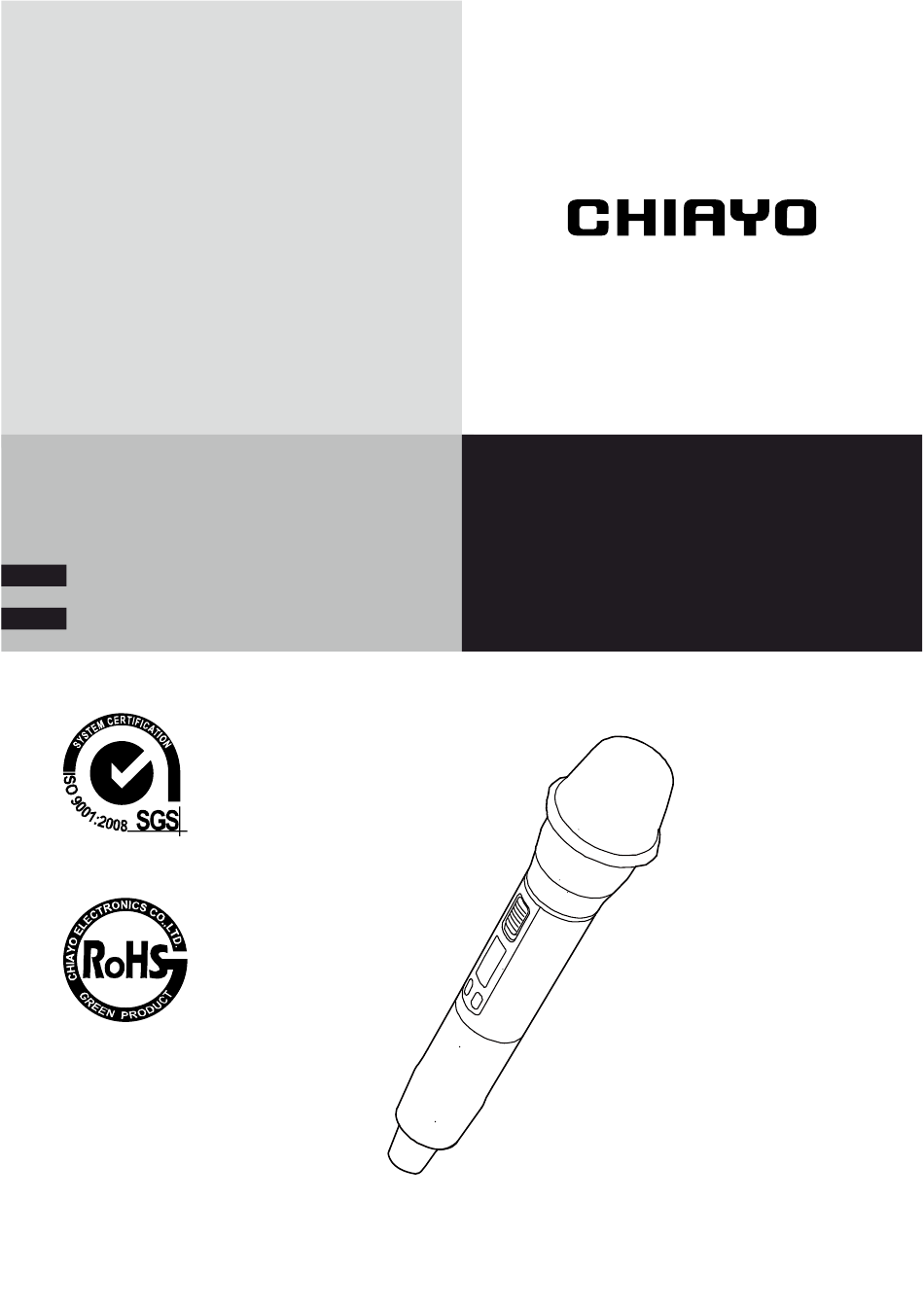

- Page 1 SQ-6100 IrDA Operation manual UHF Handheld Microphone CHIAYO ELECTRONICS CO.,LTD.
- Page 2 SQ-6100 IrDA UHF Handheld Microphone Parts and functions GAIN 1 Cartridge 5 Menu button 9 Battery power indicator 2 Power switch 6 IrDA synchronizing button 10 Charging port 3 LCD 7 Battery compartment 11 GAIN control (below the 4 Setting button...
- Page 3 Instructions Channel synchronizing of the receiver and microphone 630 000 FREQ 30cm 10~30cm S ET Align infrared areas of the receiver and microphone within 10~30cm. Changing the receiver’s channel Press the synchronizing button of the microphone. The microphone's indicator ⑨ will glow to denote transmitting the frequency to the receiver and synchronizing the channels.
- Page 4 Frequency: 470~789 MHz, Maximal power: 4.8 mW Frequency: 823~832 MHz, Maximal power: 1.2 mW CE declaration info: www.chiayo.com.tw/declaration.html CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜...
